When selecting the right CNC tool grinding machine for your workshop or production environment, prioritize precision, automation level, and compatibility with your tooling needs. For most industrial users seeking high repeatability and efficiency, a 5-axis CNC tool grinder with automatic tool loading and diamond wheel options offers the best long-term value 1. If you're focused on resharpening end mills, drills, or custom cutting tools, choosing a model with intuitive software, robust spindle accuracy (±0.001 mm), and strong after-sales support is essential. Avoid overpaying for unnecessary features by matching the machine’s capabilities to your output volume and complexity requirements.
Short Introduction
Selecting a CNC tool grinding machine can significantly impact your manufacturing precision, tool life, and operational efficiency. These machines are designed to regrind, reshape, and sharpen cutting tools such as end mills, drills, inserts, and custom cutters using computer-controlled precision. Whether you operate a small job shop or manage a high-volume production line, understanding how to choose a CNC tool grinding machine based on your specific needs ensures optimal return on investment.
About CNC Tool Grinding Machines

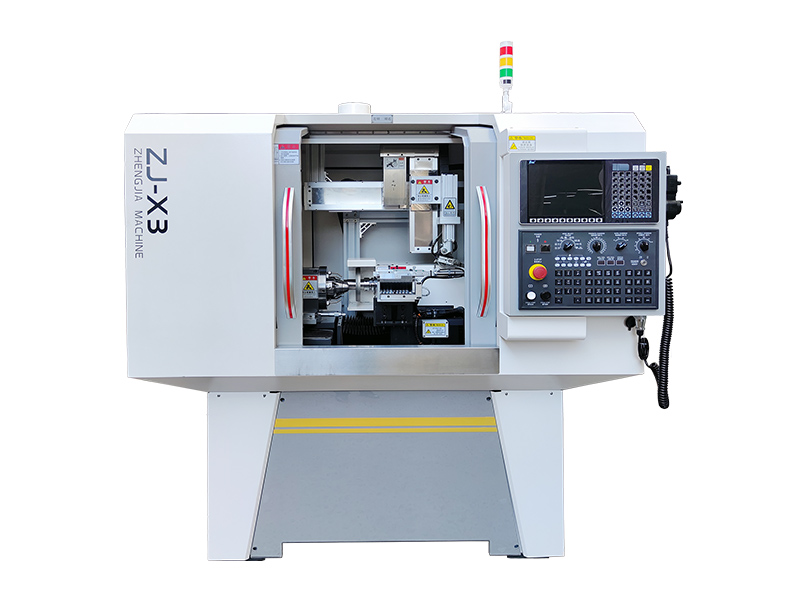

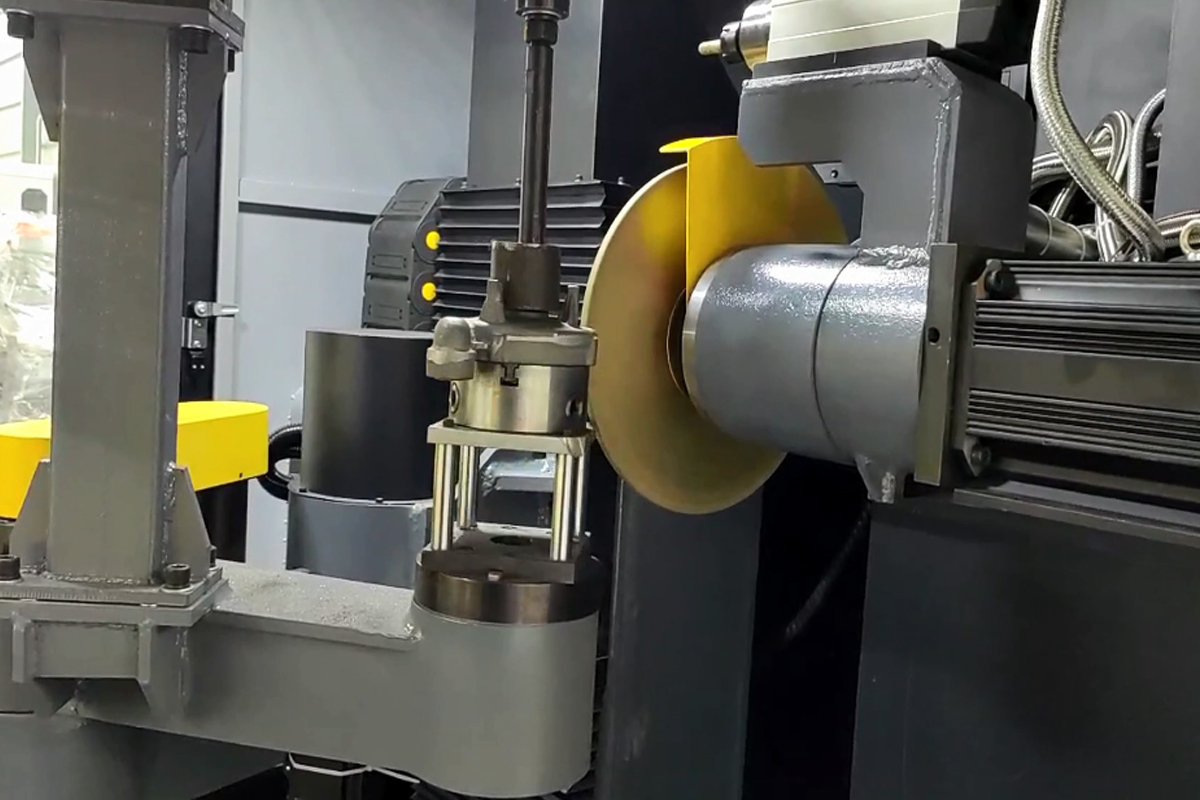

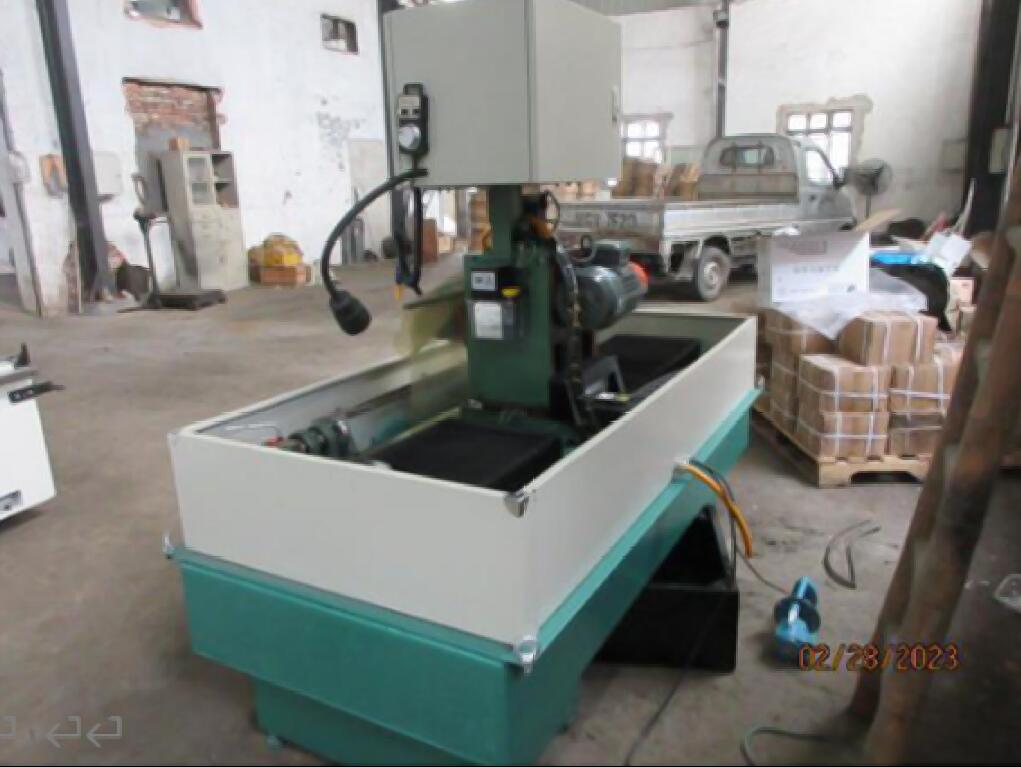

A CNC tool grinding machine is a specialized piece of equipment used primarily in metalworking and toolmaking industries to manufacture or resharpen cutting tools with high dimensional accuracy. Unlike manual grinders, these machines use computer numerical control (CNC) systems to automate the grinding process, ensuring consistent results across multiple tool geometries.
Typical applications include:
- Resharpening carbide end mills and drills
- Producing custom-formed cutters
- Manufacturing indexable inserts and broaches
- Maintenance of high-precision tooling in aerospace, automotive, and mold-making sectors
These machines integrate advanced motion control, coolant delivery, and measurement systems to achieve sub-micron tolerances, making them indispensable for operations requiring tight specifications.
Why CNC Tool Grinding Machines Are Gaining Popularity
The growing demand for precision machining has driven increased adoption of CNC tool grinding machines across various industries. One major factor is cost savings—resharpening tools instead of replacing them reduces material waste and procurement expenses. According to industry estimates, properly reground tools can retain up to 90% of their original performance 2.
Additionally, modern CNC grinders offer enhanced flexibility. With user-friendly interfaces and CAD/CAM integration, operators can quickly program new tool profiles without extensive training. The push toward automation and Industry 4.0 practices also makes CNC grinders attractive for smart factories aiming to reduce human error and improve traceability.
Types and Variants
CNC tool grinding machines come in several configurations, each suited to different production scales and technical demands.
1. Manual Load / Standard CNC Grinders
These entry-level models require operators to load and unload tools manually. They are ideal for low-volume shops or maintenance departments.
- Pros: Lower initial cost, simpler operation
- Cons: Slower throughput, higher labor dependency
2. Automatic Tool Changer (ATC) Models
Equipped with robotic arms or carousel loaders, these machines handle multiple tools sequentially, increasing productivity.
- Pros: High uptime, suitable for batch processing
- Cons: Higher price, more complex maintenance

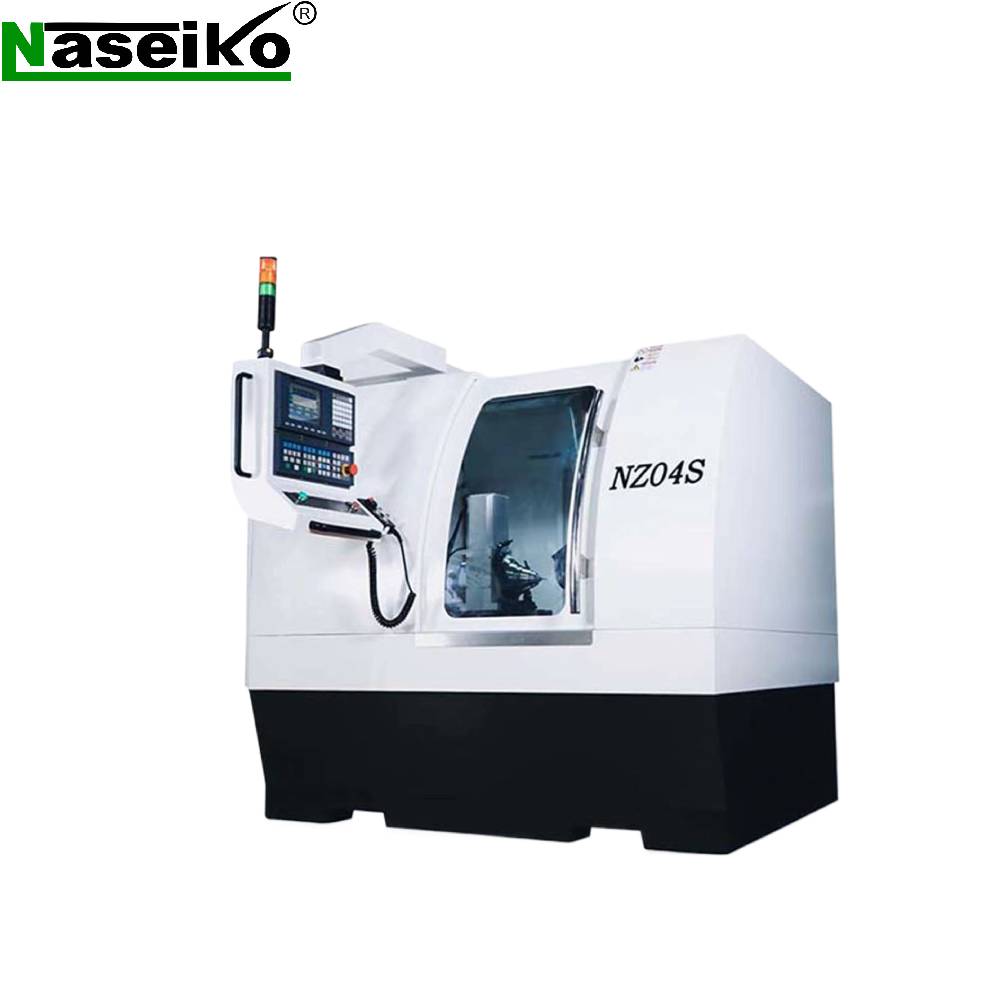

3. 3-Axis vs. 5-Axis CNC Grinders
Three-axis machines move along X, Y, and Z linear axes and are sufficient for basic tool geometries. Five-axis models add rotational movement (A and C axes), enabling complex helix angles and taper grinding.
- Pros of 5-axis: Greater versatility, ability to grind intricate shapes like ball-nose end mills
- Cons: More expensive, requires skilled programming

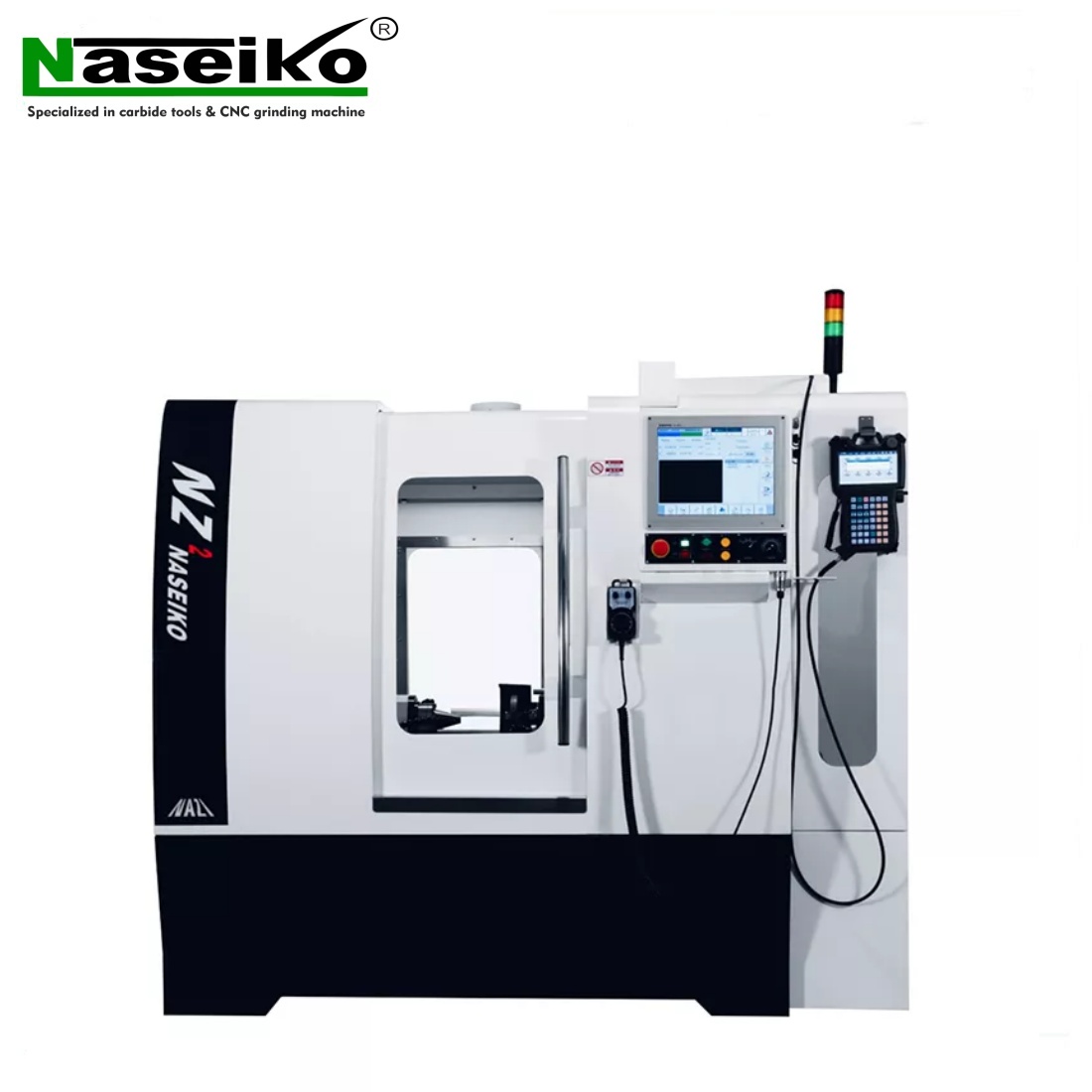

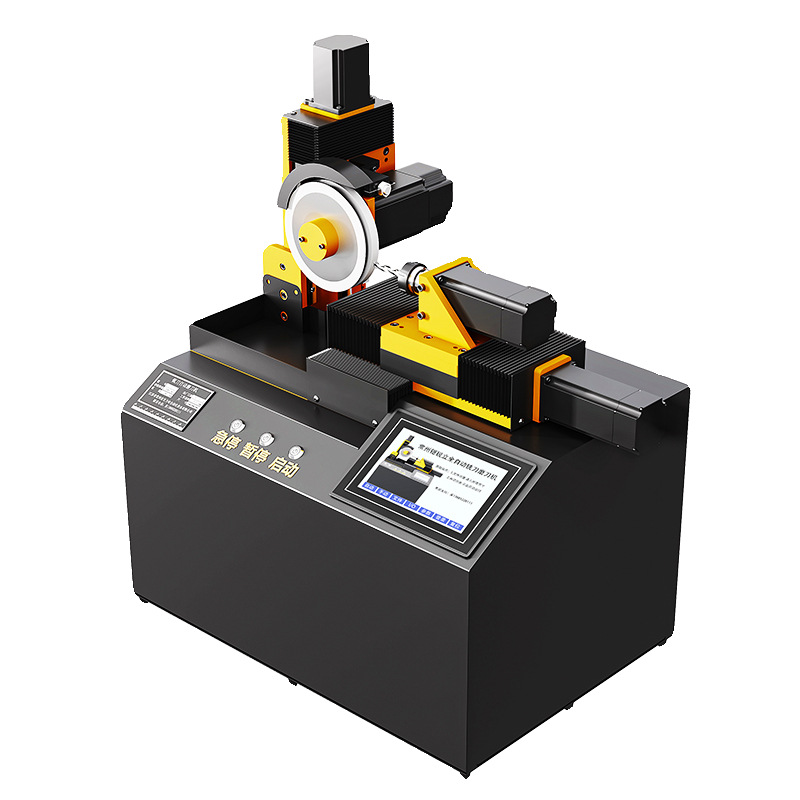

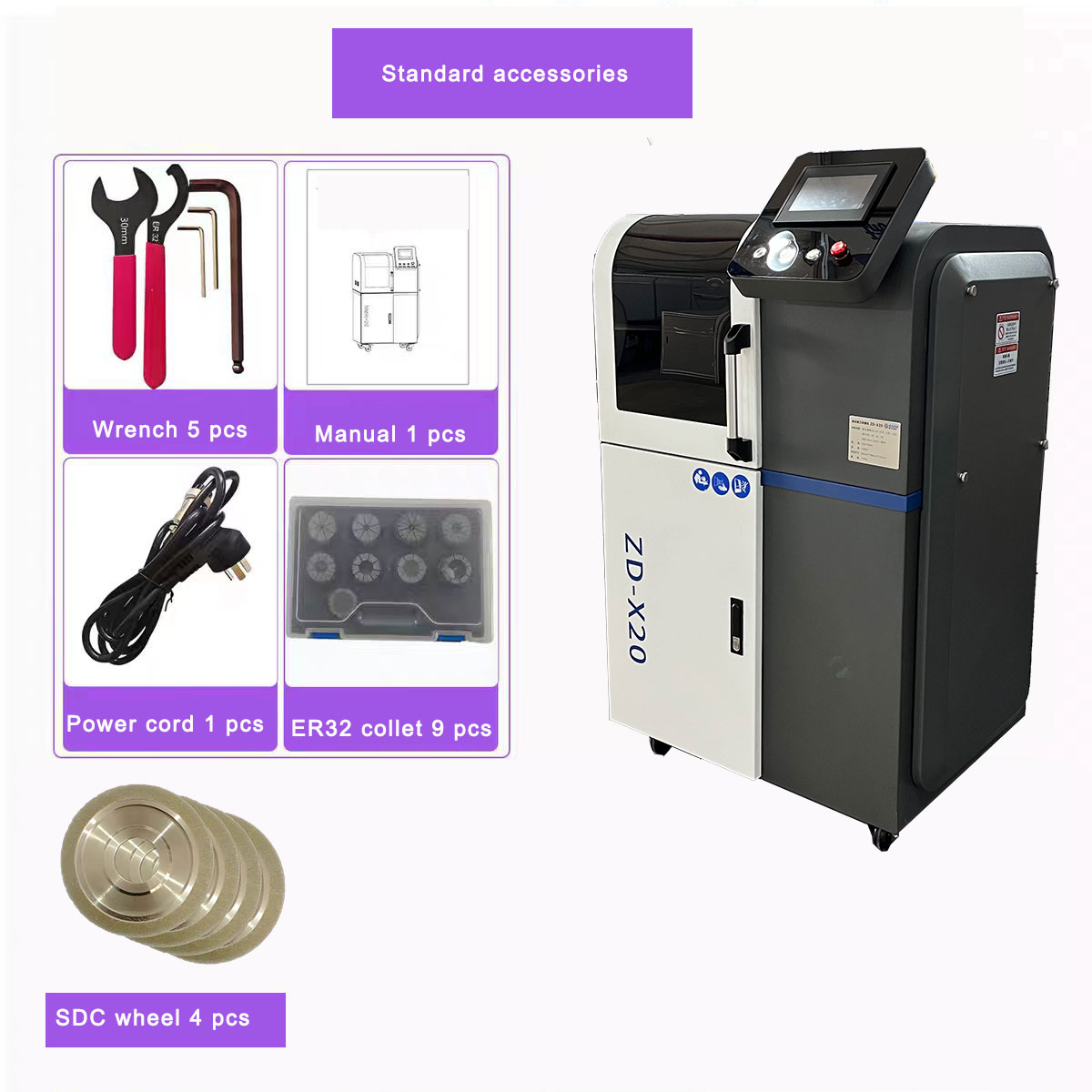

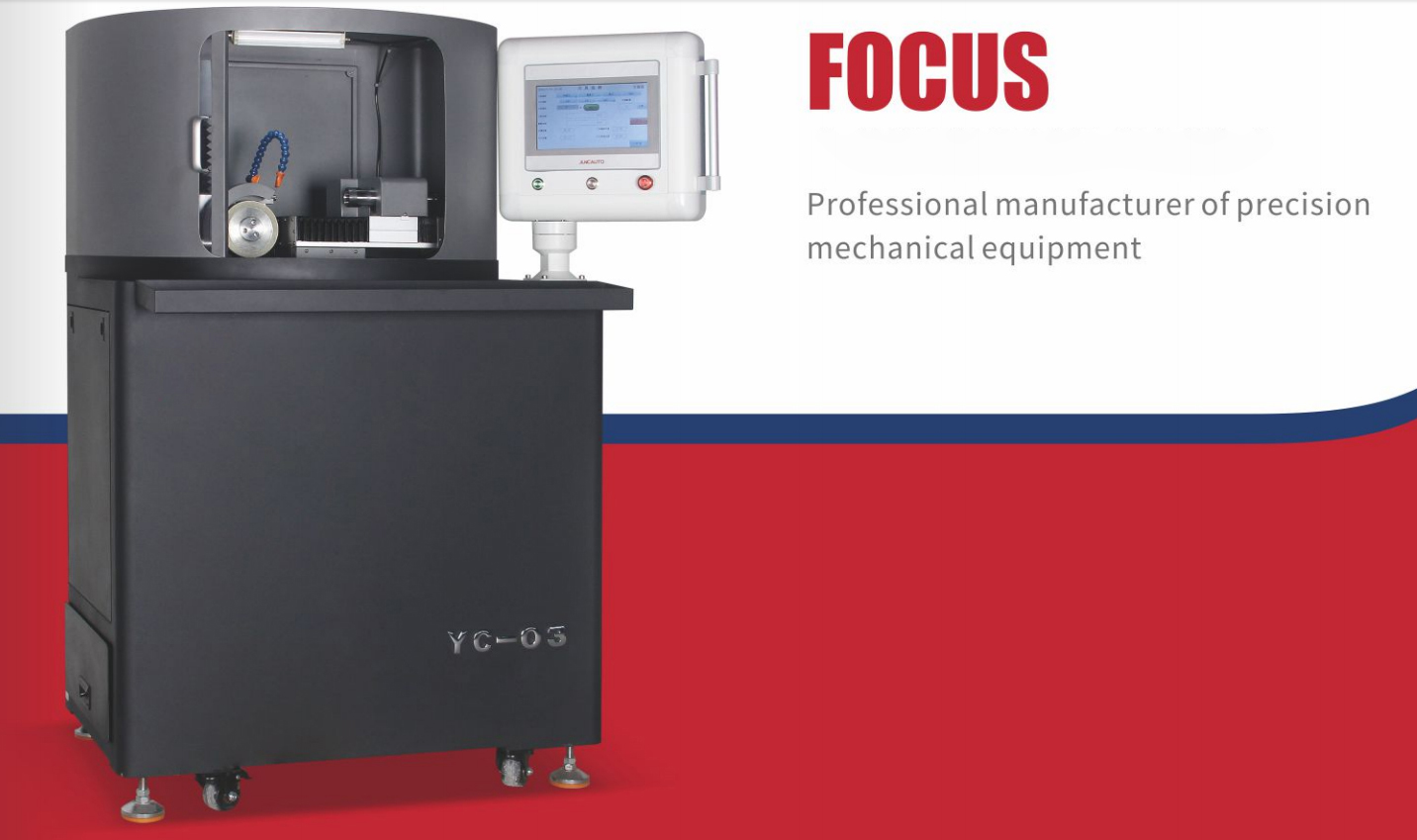

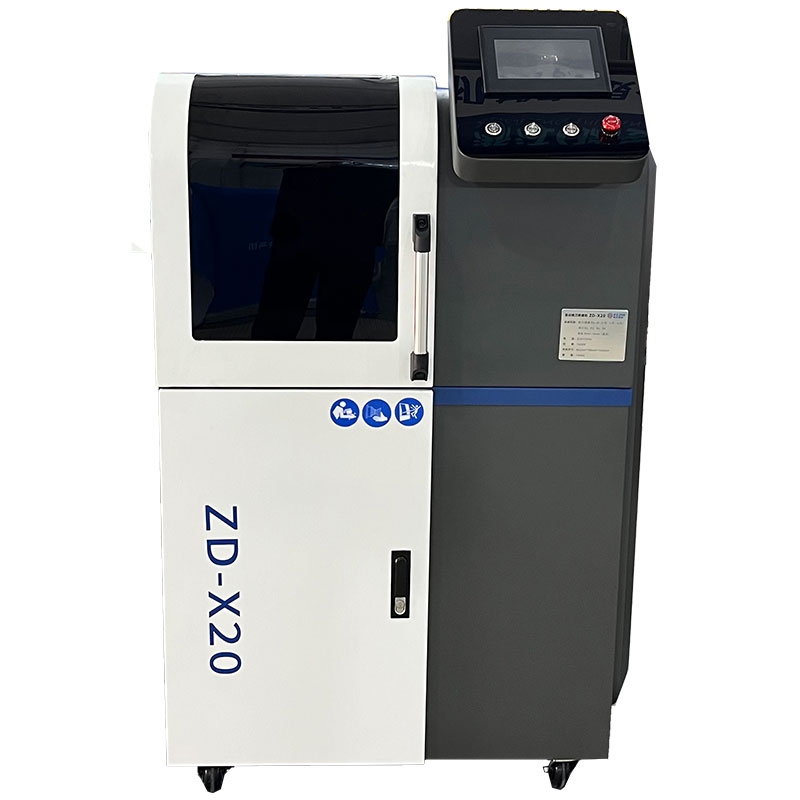

4. Benchtop vs. Floor-Standing Units
Benchtop models save space and are often used in R&D labs or small workshops. Floor-standing units provide greater rigidity and capacity for larger tool diameters.
Key Features and Specifications to Evaluate
When evaluating how to choose a CNC tool grinding machine, consider the following critical parameters:
Spindle Accuracy and Runout
Look for spindles with runout below ±0.001 mm. High-precision air or ceramic bearings ensure longevity and surface finish quality.
Axis Resolution and Repeatability
Repeatability should be within ±0.002 mm. Check encoder type—optical encoders generally offer better feedback than magnetic ones.
Grinding Wheel Options
Diamond and CBN (cubic boron nitride) wheels are preferred for hard materials like carbide. Ensure the machine supports dressing units for wheel maintenance.
Control Software and Interface
User-friendly software with graphical simulation, preloaded tool templates, and offline programming capability improves efficiency. Some brands offer touchscreen HMI (Human-Machine Interface) panels.
Coolant System
An effective filtration and cooling system prevents thermal distortion during prolonged grinding. Look for closed-loop systems with adjustable flow rates.
Tool Holding and Fixturing
Precision collet systems or hydro-expansion chucks minimize vibration. Compatibility with common shank sizes (e.g., HSK, BT) is important.
Connectivity and Data Integration
Machines with Ethernet, USB, or RS-232 ports allow easy file transfer. OPC UA support enables integration into factory networks.
Pros and Cons
Advantages:
- High precision and consistency in tool geometry
- Extended tool life through accurate resharpening
- Reduced downtime with automated cycles
- Supports sustainable manufacturing by reducing waste
Disadvantages:
- High upfront cost (ranging from $50,000 to over $500,000)
- Requires trained personnel for setup and maintenance
- Space and utility requirements (power, compressed air, coolant disposal)
- Potential obsolescence if software isn’t upgradable
Best suited for: Medium to large manufacturers, tool rooms, and service centers handling frequent tool resharpening.
Not ideal for: Occasional users or businesses with minimal tooling turnover due to ROI constraints.
How to Choose a CNC Tool Grinding Machine
Follow this step-by-step guide to make an informed purchase:
- Define Your Application Needs: Determine whether you need it for resharpening standard tools or producing custom geometries.
- Assess Volume Requirements: Low volume? A manual-load 3-axis machine may suffice. High volume? Consider 5-axis with ATC.
- Evaluate Precision Demands: Aerospace or medical tooling requires tighter tolerances than general machining.
- Check Software Compatibility: Ensure the control system allows easy programming and integrates with existing CAD workflows.
- Review Service and Support: Look for local technicians, spare parts availability, and warranty terms.
- Test Machine Rigidity: Heavier cast iron frames reduce vibration and improve finish quality.
- Verify Safety Features: Emergency stops, interlocked guards, and dust extraction connections are essential.
- Avoid Red Flags: Be cautious of vendors who don’t provide detailed specs, lack customer references, or offer unusually low prices that suggest compromised build quality.
Price & Market Insights
Pricing varies widely based on configuration:
- Entry-level (manual load, 3-axis): $50,000 – $120,000
- Mid-range (automatic loading, 4–5 axis): $150,000 – $300,000
- High-end (fully automated, multi-station): $350,000 – $700,000+
Value isn't just about price—it's about lifecycle cost. A slightly more expensive machine with better durability and lower energy consumption may offer superior long-term savings. Also, consider leasing options or refurbished units from reputable dealers to reduce capital expenditure.
| Model | Manufacturer | Axes | Automation | Approx. Price |
|---|---|---|---|---|
| Walter Helitronic Power 400 | Walter AG | 5-axis | Optional ATC | $280,000 |
| Schunk EWA 200 | Schunk GmbH | 4-axis | Manual load | $130,000 |
| Anca MX7 Ultra | Anca Pty Ltd | 5-axis | Full ATC | $450,000 |
| DMG MORI GF 600 | DMG MORI Co. | 5-axis | Integrated pallet system | $620,000 |
Top-Seller & Competitive Analysis
Leading brands like Anca, Walter, Schunk, and DMG MORI dominate the global market due to their reliability and innovation. Anca’s MX series stands out for its intuitive ANCA Touch software and compact footprint. Walter Helitronic models are known for exceptional stiffness and thermal stability. Schunk offers excellent value for mid-tier buyers, while DMG MORI caters to high-end integrated solutions.
When comparing top sellers, focus on total cost of ownership—not just purchase price. Evaluate energy usage, consumables (wheels, coolants), service intervals, and software update policies.
Customer Feedback Synthesis
Analysis of real-world user reviews reveals consistent themes:
Common Praises:
- “The Anca MX7 delivers flawless edge preparation for micro-drills.”
- “Walter’s service team responded within 24 hours when we had a calibration issue.”
- “Easy-to-use interface reduced operator training time by half.”
Frequent Complaints:
- “Software updates required paid licenses despite being under warranty.”
- “Initial setup took longer than expected due to unclear documentation.”
- “Coolant mist escaped the enclosure during heavy grinding cycles.”
These insights highlight the importance of thorough testing before purchase and clarifying post-sale support terms.
Sourcing & Supplier Tips
Buy from authorized distributors or directly from manufacturers whenever possible. For international sourcing, verify import duties, shipping costs, and voltage compatibility (e.g., 208V vs. 480V).
If purchasing in bulk or for resale, negotiate extended warranties or training packages. Always request a live demonstration—either onsite or via video—with your actual tool samples.
Before accepting delivery, inspect for:
- Physical damage during transit
- Completeness of accessories (chucks, tools, software dongles)
- Calibration certificates and CE/UL compliance labels
Maintenance, Safety & Legal Considerations
Regular maintenance includes cleaning filters, checking spindle bearings, and recalibrating axes annually. Follow manufacturer-recommended lubrication schedules.
Safety practices:
- Use proper PPE (gloves, goggles, hearing protection)
- Ensure emergency stop buttons are accessible
- Install dust and mist collectors to meet OSHA or EU emission standards
Legally, ensure the machine complies with regional safety regulations (e.g., CE marking in Europe, UL listing in North America). Keep records of maintenance and operator training for liability purposes.
Conclusion
Choosing the right CNC tool grinding machine involves balancing precision, automation, budget, and long-term support. For most industrial applications, investing in a 5-axis model with reliable software and strong vendor support delivers the best outcome. Assess your production volume, tool complexity, and available floor space before deciding. Prioritize machines with proven track records, clear service networks, and scalable features. By carefully evaluating all aspects—from key specifications to real-world user experiences—you can select a CNC tool grinding machine that enhances productivity and maintains competitive advantage.
FAQs
Q: What is the average lifespan of a CNC tool grinding machine?
A: With proper maintenance, most industrial-grade machines last 10–15 years or more.
Q: Can a CNC tool grinder sharpen carbide tools effectively?
A: Yes, especially with diamond or CBN wheels, which are designed for hard materials like tungsten carbide.
Q: How much training is needed to operate a CNC tool grinder?
A: Basic operation can take 1–2 weeks; mastering advanced programming may require several months depending on experience.
Q: Are there used or refurbished CNC tool grinding machines worth considering?
A: Yes, but only from certified dealers who provide inspection reports and limited warranties.
Q: Do all CNC tool grinders require external chillers?
A: Not all, but high-power models generating significant heat during continuous operation benefit from dedicated cooling systems to maintain accuracy.
