How to Choose the Best CNC Insert Turning Tool: A Complete Buying Guide

When selecting the right cnc insert turning tool for your lathe operations, prioritize insert material (such as carbide, ceramic, or CBN), cutting geometry (positive vs. negative rake), and compatibility with your machine’s rigidity and feed rate 1. For general-purpose use, ISO-standardized carbide inserts with TiN or AlTiN coatings offer excellent wear resistance and thermal stability, making them ideal for steel and stainless steel turning. If you're working with hardened alloys or non-ferrous materials like aluminum, consider specialized grades—such as sharp-edged PCD-tipped inserts—to prevent built-up edge and ensure clean finishes. Always match the insert shape (e.g., CNMG, DNMG) and nose radius to your required surface finish and depth of cut.

Short Introduction

CNC insert turning tools are essential components in modern metalworking, enabling precise, repeatable, and efficient external and internal turning operations on lathes. Unlike traditional single-point tools that require constant regrinding, indexable inserts allow users to rotate or replace only the cutting edge when worn, reducing downtime and increasing productivity. These tools consist of a durable holder and a replaceable insert made from hard materials like tungsten carbide, ceramics, or cubic boron nitride (CBN). They are widely used across industries such as automotive, aerospace, and precision manufacturing where consistency and tool life matter.

About CNC Insert Turning Tools

A CNC insert turning tool is an indexable cutting tool designed for use on computer numerical control (CNC) lathes. It consists of two main parts: the tool holder and the removable insert. The insert is clamped into the holder using a screw, wedge, or lever mechanism and features multiple cutting edges. Once one edge wears out, the user indexes it to a fresh edge; once all edges are used, the insert is replaced. This design reduces tooling costs over time and increases operational efficiency.

Typical applications include facing, roughing, finishing, grooving, threading, and parting operations on materials ranging from mild steel to exotic alloys. Due to their interchangeability and adherence to ISO, ANSI, and JIS standards, these tools can be integrated into most modern CNC machines regardless of brand.

Why CNC Insert Turning Tools Are Gaining Popularity

The rise in adoption of cnc insert turning tools stems from several key advantages over traditional HSS (high-speed steel) tools. First, they significantly reduce machining downtime—since inserts can be changed in seconds, operators spend less time adjusting or resharpening tools. Second, advanced coating technologies have extended tool life by improving heat resistance and reducing friction. Third, consistent geometry ensures predictable chip formation and surface finish, which is crucial in high-volume production environments.

Additionally, automation trends in manufacturing demand reliable, long-lasting tools that maintain dimensional accuracy over thousands of cuts. With Industry 4.0 integration, many shops now track tool wear via sensors, further enhancing the value of standardized, measurable inserts.

Types and Variants

CNC insert turning tools come in various shapes, sizes, and configurations tailored to specific machining tasks. Understanding the differences helps optimize performance.

By Insert Shape

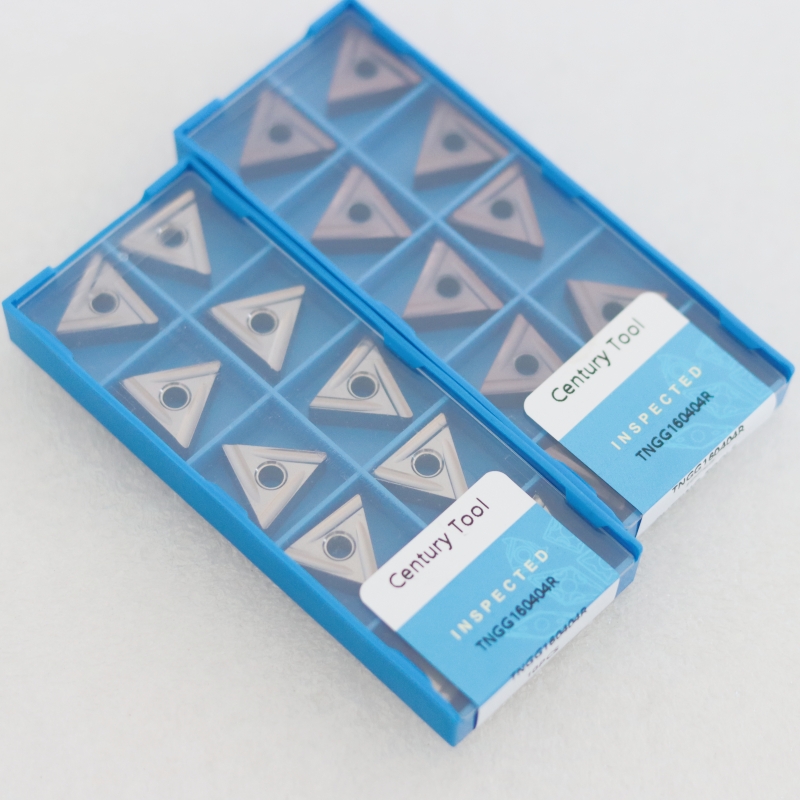

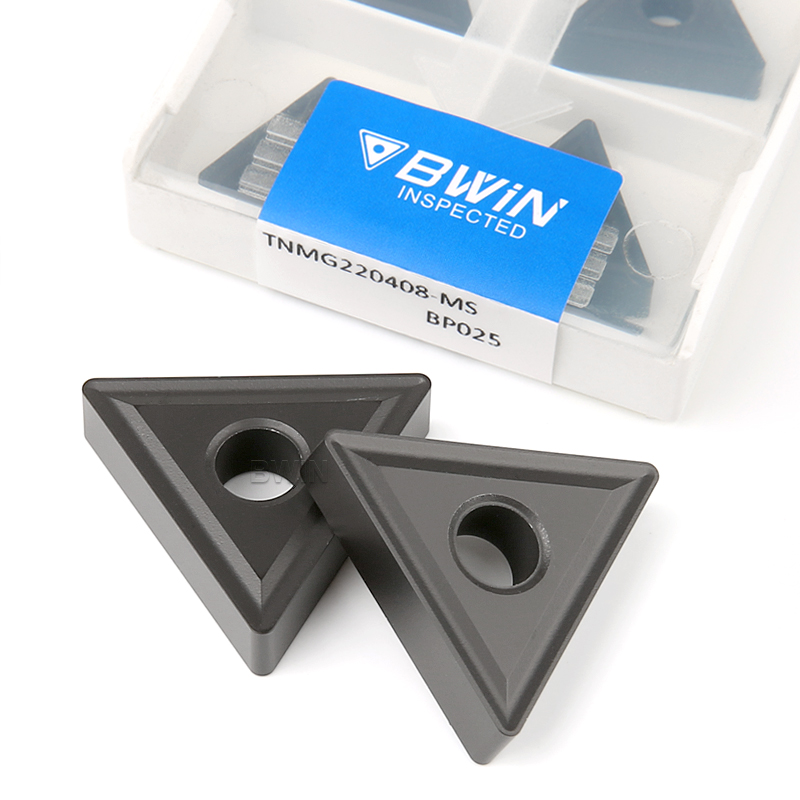

Triangle (C): Offers three usable edges. Common in general turning. Example: CNMG series.
Diamond (D): Narrow point allows fine profiling but less strength. Used in boring bars. Example: DNMG.
Square (S): Four edges provide longevity and strong edge support. Ideal for heavy cuts but requires more power. Example: SNMG.
Rhombic (R): Robust with good edge strength, often used in roughing. Example: RNMG.
Round (T): Continuous radius enables smooth finish without marks at direction changes. Great for contouring soft metals.

Positive vs. Negative Rake Inserts

Positive rake inserts have a back angle that reduces cutting force and heat generation, making them suitable for softer materials and low-power machines. However, they are less robust under shock loading. Negative rake inserts are stronger, handle interrupted cuts better, and are preferred in heavy-duty applications, though they require stiffer machines and higher horsepower.

Coated vs. Uncoated

Coatings like TiN (titanium nitride), TiCN (titanium carbonitride), and AlTiN (aluminum titanium nitride) enhance hardness and thermal resistance. Coated inserts last longer in high-speed operations and resist built-up edge, especially in sticky materials like stainless steel 2.

Specialty Inserts

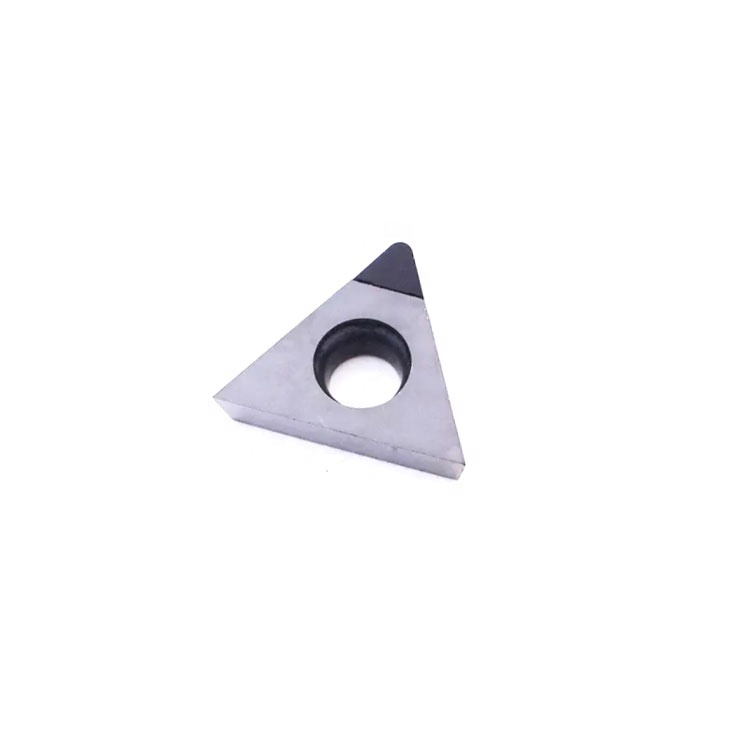

PCD (Polycrystalline Diamond): Extremely hard, used for non-ferrous materials like aluminum and composites.
CBN (Cubic Boron Nitride): Second hardest material after diamond; effective for hard turned steels (>45 HRC).
Ceramic Inserts: Can operate at very high speeds but are brittle—best for continuous cutting of cast iron.

Key Features and Specifications to Evaluate

To choose the best cnc insert turning tool, assess the following technical parameters:

Insert Grade: Refers to the substrate and coating combination. Grades like KC9015 (Kennametal) or UE6010 (Mitsubishi) indicate suitability for specific materials.
Nose Radius: Larger radii improve surface finish and strength but may cause chatter if unsupported. Smaller radii suit tight corners.
Tolerance Class: Standardized codes (e.g., M, G, E) define dimensional precision. Use tighter tolerances (G or E) for finishing.
Cutting Edge Condition: Honed, chamfered, or sharp edges affect performance. Chamfers add strength for roughing.
Holder Shank Size: Must match your turret capacity. Common sizes: 12x12 mm, 25x25 mm, 1 inch, etc.
Clamping Method: Top clamp offers visibility; seat clamp provides rigidity; wedge clamp allows quick change.
Relief Angle: Determines clearance between tool and workpiece. Higher angles reduce rubbing but weaken the edge.

Pros and Cons

Advantages

High tool life due to wear-resistant materials and coatings.
Multiple cutting edges reduce replacement frequency.
Standardization enables cross-brand compatibility.
Precise geometry improves repeatability and surface quality.
Wide range of options for different materials and operations.

Limitations

Higher initial cost compared to HSS tools.
Fragile inserts can chip under improper conditions (e.g., interrupted cuts with wrong grade).
Requires proper setup—incorrect speed/feed settings shorten life.
Limited flexibility for complex profiles unless using custom-shaped inserts.

How to Choose a CNC Insert Turning Tool

Follow this step-by-step guide to make an informed decision:

Identify Your Work Material: Match insert grade to material type. Use P-class inserts for steel, M-class for stainless, K-class for cast iron, and non-oxide ceramics or PCD for non-ferrous.
Determine Operation Type: Roughing needs strong, negative-rake inserts with large nose radii. Finishing requires sharp, positive-rake inserts with small radii.
Select Insert Shape: Balance number of edges, strength, and application fit. CNMG is versatile; WNMG suits wiper geometries for smoother finishes.
Check Holder Compatibility: Ensure the insert fits your existing holder in terms of style (right-hand/left-hand), height, and clamping system.
Verify Cutting Parameters: Consult manufacturer data sheets for recommended speeds, feeds, and depths of cut based on insert grade.
Evaluate Coating Needs: For high-temperature operations or abrasive materials, opt for multi-layer coatings like AlTiN or TiAlN.
Consider Chipbreaker Design: Effective chip control prevents tangling and damage. Some inserts feature engineered grooves to curl and break chips efficiently.

Red Flags to Avoid:

Buying unbranded inserts without documented grade specifications.
Using sharp-edged inserts on interrupted cuts without adequate toughness.
Ignoring proper coolant delivery, leading to premature flank wear.
Overlooking holder wear—worn pockets lead to poor seating and vibration.

Price & Market Insights

Prices vary widely based on brand, material, and coating technology. Basic uncoated carbide inserts start around $2–$5 each, while premium coated or specialty inserts (CBN, PCD) can cost $15–$50+. Holders range from $20 for standard models to over $100 for anti-vibration or modular designs.

Value tiers exist:

Budget: Generic brands from China or India. Suitable for low-volume shops but inconsistent in quality.
Mid-tier: Brands like Guhring, Iscar, Sandvik Coromant. Offer reliable performance and technical support.
Premium: Kennametal, Mitsubishi Materials, Walter. Known for innovation, durability, and global service networks.

For most industrial users, investing in mid-to-high-end inserts pays off through longer tool life and fewer rejects. Bulk purchases often yield discounts, but verify shelf life—some coated inserts degrade if stored too long.

Insert Type	Best For	Avg. Price Range	Lifespan (approx.)
Carbide (coated)	Steel, stainless steel	$3–$8	15–30 minutes at optimal parameters
CBN	Hardened steel (>45 HRC)	$20–$40	45–90 minutes
PCD	Aluminum, composites	$25–$50	60+ minutes
Ceramic	Cast iron, high-speed finishing	$10–$20	30–60 minutes

Customer Feedback Synthesis

Analysis of real-world reviews shows recurring themes:

Common Praises:

"The AlTiN-coated inserts lasted twice as long as my old ones on 304 stainless."
"Easy indexing and consistent results across batches."
"Good chip control even at high feed rates."

Common Complaints:

"Received a batch with inconsistent edge preparation—some chipped immediately."
"Expensive inserts didn’t perform better than cheaper alternatives on mild steel."
"Poor packaging led to damaged tips during shipping."

These insights suggest that while top brands generally deliver reliability, quality control inconsistencies occur even among reputable suppliers. Always inspect new batches before full deployment.

Sourcing & Supplier Tips

When sourcing cnc insert turning tools:

Buy from authorized distributors to ensure authenticity and access to technical datasheets.
For bulk orders, request sample runs before committing to large volumes.
Consider vendor-managed inventory programs offered by major brands to reduce stockouts.
If importing directly, confirm customs classification and potential tariffs.
Inspect packaging upon delivery—look for moisture indicators and physical damage.
Store inserts in dry, temperature-controlled environments to preserve coating integrity.

Maintenance, Safety & Legal Considerations

Proper maintenance extends tool life and ensures operator safety:

Always shut down the machine before changing inserts.
Use torque wrenches to tighten clamping screws to manufacturer specs (typically 4–8 Nm).
Regularly inspect holders for wear, deformation, or cracks.
Wear cut-resistant gloves when handling used inserts—they remain extremely sharp.
Dispose of spent inserts properly; many contain cobalt and are classified as hazardous waste in some regions.

From a regulatory standpoint, OSHA and similar bodies require safe handling practices for sharp objects and airborne particulates generated during machining. Use appropriate PPE and dust extraction systems. In the EU, REACH and RoHS regulations may apply to certain tool coatings or substrates—verify compliance if exporting products.

Conclusion

Selecting the right cnc insert turning tool involves balancing material compatibility, cutting conditions, tool geometry, and budget. Carbide inserts with advanced coatings remain the go-to choice for most applications, offering durability and cost-efficiency. For specialized tasks involving hardened metals or non-ferrous alloys, consider CBN or PCD variants. Always refer to manufacturer guidelines for cutting parameters and ensure compatibility with your CNC lathe setup. By focusing on standardized, well-documented products from reputable suppliers, you can achieve consistent results, minimize waste, and maximize return on investment.

FAQs

What does CNMG mean in cnc insert turning tools?
CNMG stands for: C = Triangle shape, N = 0° relief angle, M = Medium tolerance, G = General-purpose ground back. It describes the insert's geometry and specification per ISO standards.

How long should a cnc insert last?
Tool life varies by material, speed, and operation. Under optimal conditions, a carbide insert lasts 15–60 minutes. Factors like coolant use, machine rigidity, and correct feed rates greatly influence lifespan.

Can I reuse a worn cnc insert?
No, once all edges are used or the insert shows signs of chipping, cratering, or excessive flank wear, it should be replaced. Attempting to regrind indexable inserts is not recommended due to precision requirements.

Are expensive cnc inserts worth it?
In high-production environments, yes. Premium inserts often offer better coatings, substrates, and consistency, leading to fewer tool changes and lower scrap rates. For hobbyists, mid-range options may suffice.

How do I know if my insert is failing?
Signs include poor surface finish, increased cutting noise, rising spindle load, visible chipping, or burrs on the workpiece. Monitor these cues closely to avoid catastrophic failure.
