How to Choose the Best Chemical Seal Sliding: A Complete Buyer's Guide

When selecting a chemical seal sliding mechanism for industrial or laboratory applications, prioritize corrosion resistance, material compatibility, and long-term sealing integrity. The right choice depends on your specific environment—whether handling aggressive solvents, high-pressure systems, or temperature fluctuations. For example, PTFE-based chemical seal sliding components offer excellent resistance to most acids and bases, making them ideal for harsh chemical processing environments 1. Always verify the seal’s elastomer or polymer rating against your operating conditions. Look for models with low friction coefficients and minimal outgassing if used in vacuum or precision equipment. In short, how to choose chemical seal sliding solutions comes down to matching performance specs to real-world exposure—never assume universal compatibility.

About Chemical Seal Sliding

Chemical seal sliding refers to dynamic sealing mechanisms designed to maintain integrity while allowing controlled movement in systems exposed to reactive or corrosive substances. These seals are commonly found in valves, pumps, reactors, and piping systems where fluid containment must be preserved under motion—such as rotating shafts or reciprocating plungers. Unlike static seals, which remain fixed, sliding seals endure continuous mechanical interaction, increasing wear risks unless properly engineered.

Typical use cases include pharmaceutical manufacturing, petrochemical processing, semiconductor fabrication, and wastewater treatment. In these settings, maintaining leak-free operation is critical not only for efficiency but also for environmental compliance and worker safety. Seals may interface with liquids, gases, slurries, or supercritical fluids, often under elevated temperatures or pressures. Therefore, the term 'chemical seal sliding' encompasses both the material composition and mechanical design optimized for chemical inertness and durability during motion.

Why Chemical Seal Sliding Is Gaining Popularity

Industries are increasingly adopting advanced chemical seal sliding technologies due to stricter regulatory standards, rising costs of downtime, and growing emphasis on process reliability. Leaks in chemical handling systems can lead to hazardous releases, product contamination, and costly cleanups. As a result, companies are investing in higher-performance seals that reduce maintenance frequency and extend service life.

Another driver is the shift toward automation and continuous processing, where uninterrupted operation is essential. Traditional packing glands or basic O-rings often fail prematurely in such environments. Modern chemical seal sliding designs—like spring-energized seals or lip seals with reinforced polymers—offer better resilience. Additionally, sustainability initiatives have pushed demand for longer-lasting, recyclable, or lower-emission sealing solutions, further boosting innovation in this space 2.

Types and Variants

Understanding the different types of chemical seal sliding mechanisms helps buyers match functionality with application needs. Below are the most common variants:

1. Spring-Energized Seals

These consist of a resilient core (often metal or polymer) wrapped in a chemically resistant jacket (e.g., PTFE). The internal spring applies constant force to maintain contact even under thermal cycling or wear.

• Pros: Excellent recovery, works across wide temperature ranges, maintains sealing force over time.
• Cons: Higher cost, more complex installation, sensitive to misalignment.

2. Lip Seals (Radial Shaft Seals)

Commonly used in rotating equipment, these feature a flexible lip pressed against a shaft. Often made from FKM (Viton®), EPDM, or PTFE composites.

• Pros: Cost-effective, easy replacement, good for moderate speeds and pressures.
• Cons: Wear faster under dry running, limited chemical resistance depending on base material.

3. Bellows Seals

Metal or plastic bellows provide hermetic sealing in pumps and valves without sliding contact until flexing occurs. Used in diaphragm pumps and control valves.

• Pros: Zero leakage potential, no rubbing surfaces, suitable for ultra-pure processes.
• Cons: Fragile under shock loads, limited stroke length, expensive to replace.

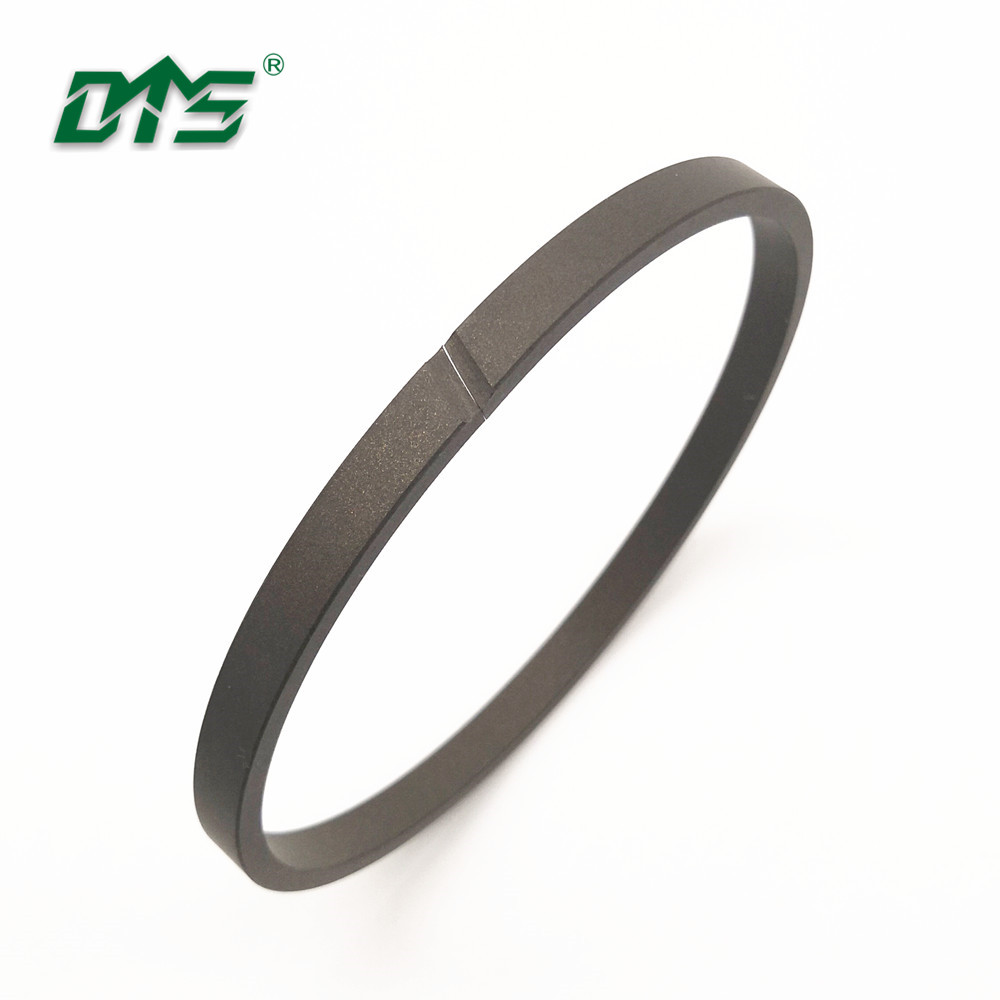

4. Piston Rings & Backup Rings

Used in reciprocating compressors and hydraulic cylinders. Made from filled PTFE, graphite, or polyimide materials.

• Pros: High load capacity, customizable for pressure zones, low friction.
• Cons: Require precise groove machining, prone to extrusion if gap is too large.

Key Features and Specifications to Evaluate

To make an informed decision when shopping for chemical seal sliding components, consider the following technical criteria:

• Material Compatibility: Confirm the seal material resists degradation from the chemicals involved. Use compatibility charts from manufacturers like Parker or Trelleborg as starting points, but always test under actual operating conditions.
• Temperature Range: Ensure the seal functions within minimum and maximum process temperatures. Some fluoropolymers degrade above 260°C, while certain perfluoroelastomers handle up to 327°C.
• Pressure Rating: Dynamic seals must withstand system pressure without extruding into gaps. Look for seals rated for both continuous and surge pressures.
• Friction Coefficient: Lower values reduce heat buildup and energy loss, especially important in high-speed applications.
• Wear Resistance: Check for reinforcement additives like carbon, bronze, or glass fiber in polymer seals.
• Installation Tolerance: Some seals require tight tolerances; others accommodate minor misalignments. Consider ease of field replacement.
• Certifications: Look for FDA, USP Class VI, or ISO 10993 ratings if used in food, medical, or biotech applications.

Pros and Cons

Advantages:

• Prevent leaks in aggressive chemical environments
• Extend equipment lifespan by reducing wear and contamination
• Support automation and continuous processing with reliable performance
• Available in diverse configurations for specialized needs

Disadvantages:

• Higher upfront cost compared to standard seals
• Require expert selection based on chemistry and mechanics
• Potential failure modes include swelling, cracking, or extrusion if mismatched
• Limited availability of custom sizes or exotic materials

This makes chemical seal sliding appropriate for mission-critical or regulated environments but possibly over-engineered for benign applications like water transfer.

How to Choose Chemical Seal Sliding

Follow this step-by-step guide to ensure optimal selection:

1. Define Your Application: Identify the media (chemical type, concentration), temperature, pressure, speed (RPM or cycles per minute), and motion type (rotary, linear, oscillating).
2. Select Base Material: Use chemical resistance databases to narrow options. For instance, PTFE handles nearly all solvents, while FKM fails in ketones.
3. Determine Seal Geometry: Match the housing and shaft dimensions. Avoid forcing undersized seals.
4. Check Environmental Factors: Account for UV exposure, sterilization cycles, or abrasive particulates.
5. Evaluate Supplier Documentation: Request full datasheets, test reports, and compatibility data—not just marketing claims.
6. Avoid These Red Flags: No traceability, missing certifications, vague material descriptions (e.g., “chemical-resistant” without specifics), or lack of technical support.

Ask yourself: What happens if this seal fails? If consequences involve safety risks or production halts, invest in higher-grade solutions.

Price & Market Insights

Pricing varies widely based on size, material, and complexity. Basic lip seals may cost $5–$50 each, while engineered spring-energized or metal bellows seals range from $100 to over $1,000 for large or exotic alloy versions.

Value tiers exist:

• Budget: Off-the-shelf elastomer seals; suitable for non-critical tasks.
• Mid-range: PTFE-composite or FKM seals with moderate customization.
• Premium: Fully customized, certified, or multi-material seals for aerospace, pharma, or nuclear sectors.

For best value, balance initial cost against lifecycle expenses. A $300 seal lasting five years may outperform three $80 seals failing annually. Also, consider inventory logistics—bulk purchases save money but risk obsolescence if specifications change.

Top-Seller & Competitive Analysis

Leading brands include Garlock, SKF, Freudenberg, and Bal Seal Engineering. Each offers distinct advantages:

Brand	Type	Key Strength	Limitation	Avg. Price Range
Garlock Blue-Gard®	PTFE Spring-Energized	Broad chemical resistance	Requires precise gland design	$200–$600
SKF CR Seals	Lip Seal (FKM/EPDM)	High-speed capability	Limited to moderate temps	$15–$75
Bal Spring-Energized	Custom Polymer Jacketed	Precision for vacuum systems	Long lead times	$300–$1,200

When comparing top sellers, assess not just performance but also documentation quality, global support, and return policies.

Customer Feedback Synthesis

Analysis of industrial buyer reviews reveals consistent themes:

Positive feedback: Users praise long service life, reduced leakage incidents, and ease of integration when specifications are matched correctly. Many highlight improved uptime after upgrading from generic seals.

Common complaints: Misleading material claims lead to premature swelling or hardening. Others report poor fitment due to inconsistent tolerances, especially with third-party replacements. Delayed technical responses from some suppliers also draw criticism.

One recurring suggestion: Always request sample testing before full deployment.

Sourcing & Supplier Tips

Buy from authorized distributors or directly from OEMs whenever possible. Unauthorized resellers may offer counterfeit or outdated stock. For bulk orders, negotiate service agreements that include technical audits or on-site training.

If sourcing internationally, confirm shipping timelines, import duties, and language barriers in documentation. Consider working with suppliers who offer CAD drawings, 3D samples, or failure analysis services.

Before accepting delivery, inspect packaging integrity, batch numbers, and conformance certificates. Conduct visual checks for nicks, warping, or discoloration—signs of improper storage.

Maintenance, Safety & Legal Considerations

Proper maintenance extends seal life. Monitor for signs of leakage, increased friction, or vibration. Replace seals proactively during scheduled downtimes rather than waiting for failure.

Safety-wise, never reuse compressed or distorted seals. Decommission old units properly, especially if contaminated with hazardous substances. Follow lockout/tagout procedures during replacement.

Legally, ensure compliance with local regulations such as OSHA, REACH, or PED (Pressure Equipment Directive) where applicable. In food or medical industries, adhere strictly to FDA 21 CFR or ISO 13485 requirements. Noncompliance can void insurance and expose companies to liability.

Conclusion

Selecting the right chemical seal sliding solution requires careful evaluation of chemical exposure, mechanical demands, and lifecycle costs. While premium options may carry higher prices, their reliability often justifies the investment in critical operations. Focus on verified material compatibility, proper installation, and reputable suppliers to avoid avoidable failures. Whether you're maintaining a single pump or managing a plant-wide system, taking a methodical approach to how to choose chemical seal sliding components ensures safer, more efficient operations.

FAQs

Q: What does chemical seal sliding mean?
A: It refers to seals that maintain integrity between moving parts in chemically aggressive environments, preventing leaks while allowing motion.

Q: How do I know if a seal is compatible with my chemical?
A: Consult manufacturer-provided chemical resistance charts and conduct real-condition testing. Never rely solely on general labels like "corrosion-resistant."

Q: Can I replace a failed seal with a cheaper alternative?
A: Only if it matches the original in material, dimensions, and performance specs. Substitutions can cause rapid failure or safety hazards.

Q: Do chemical seal sliding components need lubrication?
A: Some do, especially elastomeric types. However, many modern PTFE-based seals are self-lubricating—verify with the datasheet.

Q: How often should chemical seals be replaced?
A: There’s no fixed interval. Replace based on condition monitoring, preventive schedules, or after known exposure events (e.g., overheating).
