How to Choose the Best Ceiling Fan Rewinding Machine: A Complete Buyer's Guide

When selecting a ceiling fan rewinding machine, prioritize models with adjustable speed control, durable coil winding mechanisms, and compatibility with common motor sizes used in residential and commercial ceiling fans. For most repair workshops, a semi-automatic benchtop rewinding system offers the best balance of precision, efficiency, and cost-effectiveness—especially when handling frequent repairs of single-phase induction motors 1. Look for units that support wire gauges between 22–30 AWG and include tension control to prevent insulation damage during rewinding. This comprehensive guide covers everything from technical specifications to user feedback, helping you choose the right ceiling fan rewinding machine based on actual performance needs.

Short Introduction

Selecting the right ceiling fan rewinding machine is essential for technicians and repair businesses aiming to restore worn-out motors efficiently. These specialized tools automate the process of removing damaged windings and reapplying new copper coils, ensuring consistent results and extending the life of ceiling fans. Whether you're servicing household units or industrial-grade models, understanding what defines a reliable rewinding system can save time, reduce material waste, and improve service quality.

About Ceiling Fan Rewinding Machines

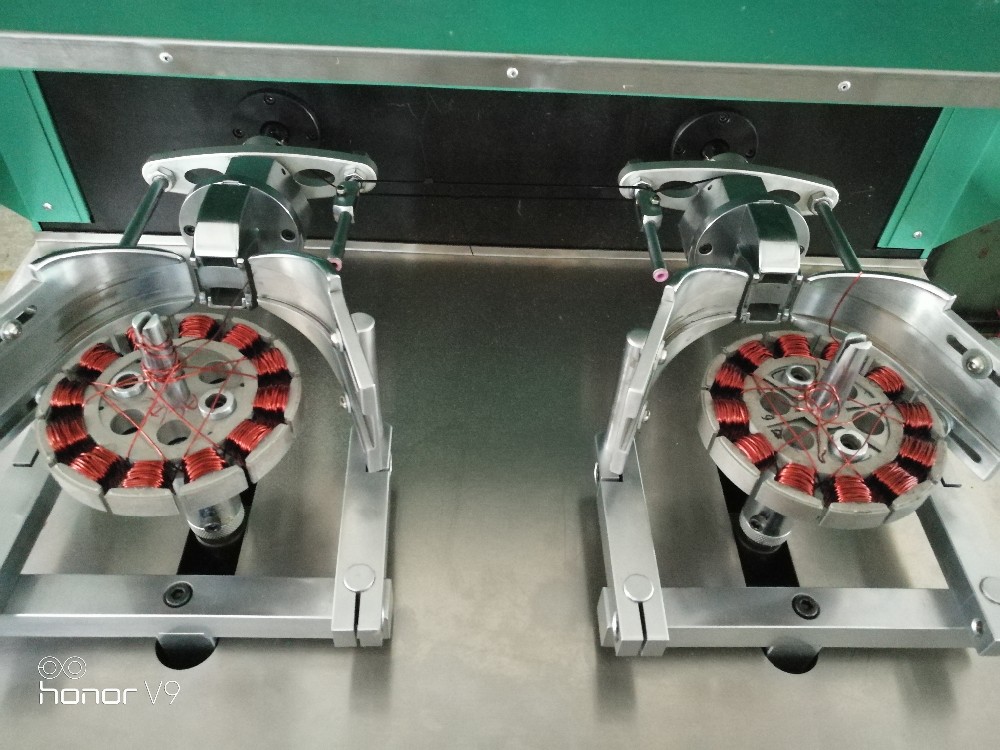

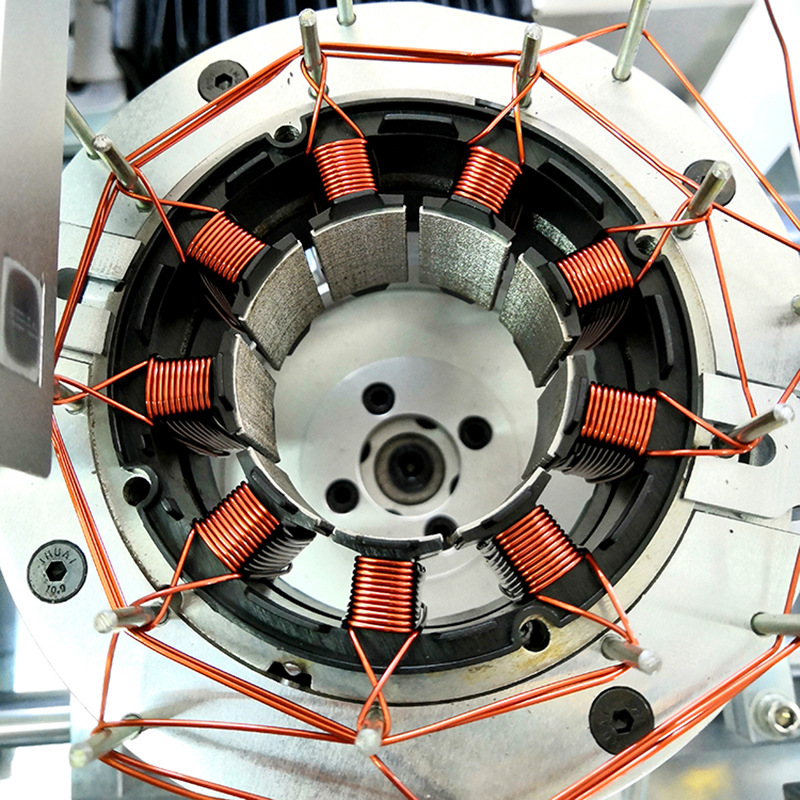

A ceiling fan rewinding machine is a precision electromechanical device designed to rewind the stator coils of ceiling fan motors. It replaces burnt or degraded copper windings with fresh wire, restoring electrical continuity and magnetic performance. The machine typically holds the motor stator securely while rotating it at controlled speeds, allowing operators to wrap enamel-coated copper wire evenly across designated slots.

These devices are primarily used in electrical repair shops, appliance maintenance centers, and by HVAC technicians who specialize in motor restoration. They are especially valuable in regions where replacing entire ceiling fans is cost-prohibitive or environmentally undesirable. Some advanced models integrate digital counters, tension regulators, and programmable rotation settings to enhance accuracy.

Why Ceiling Fan Rewinding Machines Are Gaining Popularity

The growing demand for sustainable electronics repair has driven increased interest in ceiling fan rewinding equipment. With rising energy costs and longer product lifespans expected from appliances, consumers and businesses alike are opting to repair rather than replace faulty fans.

In developing markets, where ceiling fans remain a primary cooling solution due to unreliable air conditioning infrastructure, local repair shops rely heavily on rewinding technology to keep motors running. Additionally, skilled technicians find that investing in a rewinding machine allows them to offer value-added services, differentiate their business, and generate higher margins per job compared to basic troubleshooting.

Environmental awareness also plays a role; rewinding reduces electronic waste by salvaging reusable components like housings, blades, and bearings, aligning with circular economy principles.

Types and Variants

Ceiling fan rewinding machines come in several configurations, each suited to different operational scales and technical requirements:

Manual Rewinding Devices

These are basic hand-cranked units ideal for occasional use or low-volume repair environments. Operators manually rotate the stator while feeding wire by hand.

Pros: Low cost, compact size, no power requirement
Cons: Inconsistent winding tension, slower operation, higher skill dependency

Semi-Automatic Benchtop Models

The most common type found in professional repair shops. These electrically powered units feature motorized rotation with adjustable RPM, preset turn counters, and mechanical wire guides.

Pros: Improved consistency, faster throughput, moderate learning curve
Cons: Requires stable power supply, limited automation beyond rotation control

Full Automatic CNC-Based Systems

High-end industrial machines capable of fully automated winding sequences. Often equipped with programmable logic controllers (PLCs), touchscreens, and multi-axis movement for complex coil patterns.

Pros: High repeatability, minimal operator intervention, suitable for batch processing
Cons: Expensive (often over $2,000), requires trained personnel, larger footprint

Portable Handheld Units

Compact, lightweight tools marketed for field service technicians. Designed to fit inside motor casings for in-place rewinding without full disassembly.

Pros: Mobility, quick setup, useful for remote locations
Cons: Limited torque and control, not suitable for large motors, lower durability

Key Features and Specifications to Evaluate

To make an informed choice, consider these critical factors when evaluating a ceiling fan rewinding machine:

Speed Control: Variable speed settings (typically 50–500 RPM) allow adaptation to different wire thicknesses and stator geometries. Digital controls offer finer adjustments than analog dials.
Tension Regulation: Proper wire tension prevents breakage and ensures tight, uniform layers. Spring-loaded or electronic tensioners are preferable to fixed guides.
Turn Counter: Mechanical or digital counters help maintain consistency across multiple windings, reducing human error.
Chuck Compatibility: Ensure the machine’s clamping mechanism fits standard stator shaft diameters (commonly 8–15mm). Interchangeable chucks add versatility.
Wire Guide System: A traversing guide that moves laterally across the stator improves layer alignment. Basic models may require manual guiding.
Power Supply: Most units operate on 110V or 220V AC. Confirm voltage compatibility with your region’s electrical standards.
Duty Cycle: For high-volume operations, look for machines rated for continuous use (e.g., 6+ hours) without overheating.
Noise Level: Industrial models can produce significant noise; check decibel ratings if operating in shared spaces.

Pros and Cons

Advantages:

Restores motor functionality at a fraction of replacement cost
Reduces e-waste and supports sustainability goals
Enables small businesses to expand service offerings
Precise winding improves motor efficiency and longevity

Disadvantages:

Initial investment may be high, especially for automated systems
Requires training and practice to achieve consistent results
Not all damaged motors are rewirable—severe core damage or shorted laminations may render rewinding ineffective
Maintenance of moving parts (bearings, belts) adds ongoing cost

This tool is best suited for technicians performing regular motor repairs. If you only encounter faulty ceiling fans occasionally, outsourcing rewinding may be more economical.

How to Choose a Ceiling Fan Rewinding Machine

Follow this step-by-step guide to select the optimal model for your needs:

Assess Your Workload: Estimate how many rewinds you perform monthly. Under 10 jobs? A manual or semi-auto unit suffices. Over 20? Consider automation.
Determine Motor Types: Identify the common stator sizes and power ratings you service. Verify machine compatibility with those dimensions.
Set a Budget: Entry-level models start around $150, mid-range semi-automatic units range from $400–$900, and industrial CNC systems exceed $2,000.
Evaluate Build Quality: Look for metal frames over plastic housings. Metal gears last longer than nylon ones.
Check Safety Features: Emergency stop buttons, insulated wiring, and overload protection enhance workplace safety.
Review Warranty & Support: Reputable brands offer at least one-year warranties and accessible customer service.
Read User Feedback: Search independent reviews focusing on long-term reliability and ease of calibration.
Avoid Red Flags: Be cautious of extremely low-priced machines lacking technical documentation, missing CE or ISO certifications, or sold without clear return policies.

Price & Market Insights

The global market for motor rewinding equipment has expanded steadily, driven by growth in after-sales service sectors. Prices vary widely based on automation level and origin:

Budget Tier ($100–$300): Typically manual or basic electric models from Asian manufacturers. Suitable for hobbyists or very light use.
Mid-Range ($400–$900): Semi-automatic systems with digital controls and better build quality. Popular among independent repair shops.
Premium Tier ($1,200–$3,000+): Fully automatic, programmable machines often used in manufacturing or large repair facilities.

Brands from China dominate the entry-level segment, while European and North American companies focus on high-end industrial solutions. When comparing value, factor in expected lifespan, spare part availability, and training resources. A slightly more expensive machine with modular design may offer lower total cost of ownership.

Top-Seller & Competitive Analysis

Several models consistently receive positive attention in technician communities:

Model	Type	Speed Range	Price Range	Notable Feature
XinYi XY-500	Semi-Automatic	60–480 RPM	$420–$550	Digital turn counter + tension adjuster
Wangda WD-RM2	Manual/Electric Hybrid	0–400 RPM	$280–$350	Compact design, dual power mode
Motortech ProSeries 3000	Full Automatic	50–600 RPM (CNC)	$2,100–$2,600	Programmable memory for 10+ motor types
GreenFan RF-200	Semi-Automatic	70–500 RPM	$480–$580	Low noise (<55 dB), energy-efficient motor

While no single model leads in every category, the XinYi XY-500 stands out for its balance of features and affordability. The Motortech unit excels in high-throughput environments but demands specialized knowledge for programming.

Customer Feedback Synthesis

Analysis of online reviews and forum discussions reveals recurring themes:

Common Praises:

“The digital counter eliminated guesswork—I now achieve perfect turns every time.”
“Sturdy construction; has handled daily use for over two years without issues.”
“Easy to set up and calibrate, even for someone new to rewinding.”

Frequent Complaints:

“Plastic gears stripped after three months of moderate use.”
“Poor instruction manual—had to watch YouTube tutorials to get started.”
“No way to purchase replacement parts directly; had to reverse-engineer fixes.”

Reliability concerns often stem from subpar internal components, particularly in budget models. Users emphasize the importance of accessible technical support and spare parts inventory when choosing a brand.

Sourcing & Supplier Tips

When purchasing a ceiling fan rewinding machine, consider sourcing options carefully:

Online Marketplaces: Platforms like Alibaba, Amazon, and eBay offer wide selection but vary in seller reliability. Prioritize sellers with verified business status, detailed product specs, and responsive communication.
Direct from Manufacturer: Buying directly (especially from OEMs in China or India) can reduce costs and allow customization, but may involve longer shipping times and import duties.
Distributors: Regional distributors often provide local warranty support, faster delivery, and installation assistance, albeit at a premium price.
Wholesale/Bulk Orders: If equipping a training center or franchise, request bulk pricing and inquire about training programs.
Verification Steps: Always confirm machine specifications match advertised claims. Request videos of the unit in operation before committing. Verify return policy and warranty terms in writing.

Maintenance, Safety & Legal Considerations

Proper upkeep ensures safe and efficient operation:

Maintenance: Regularly clean dust from motor vents and moving parts. Lubricate gears as specified by the manufacturer. Inspect wire guides for wear.
Safety: Always disconnect power before changing setups. Use eye protection when working with fast-moving wires. Ensure grounding is intact to prevent shocks.
Legal Compliance: In many countries, electrical repair equipment must meet safety standards such as CE (Europe), UL (USA), or ISI (India). Check local regulations before importing or selling.
Operator Training: Never allow untrained personnel to operate the machine. Misalignment or excessive speed can damage both the stator and the equipment.

Conclusion

Choosing the right ceiling fan rewinding machine depends on your workload, technical expertise, and budget. For most repair professionals, a semi-automatic model with variable speed, digital turn counting, and solid build quality provides the best return on investment. While manual units suit infrequent users, high-volume operations benefit from programmable, automated systems despite their higher cost. Focus on durability, ease of maintenance, and vendor support—not just initial price—when making your decision. By understanding the types, features, and real-world performance trends, you can select a machine that enhances productivity and delivers consistent, high-quality rewinds.

FAQs

Q: Can any ceiling fan motor be rewound?
A: No—only motors with intact stator cores and undamaged laminations are suitable. Severely burned or warped cores cannot be effectively rewound.

Q: How long does it take to rewind a typical ceiling fan motor?
A: With a semi-automatic machine, expect 30–60 minutes per motor, including disassembly and rewiring. Manual methods may take twice as long.

Q: Do I need special training to operate a rewinding machine?
A: Yes—understanding motor winding patterns, pole configuration, and proper insulation techniques is essential. Many suppliers offer basic training materials or videos.

Q: What gauge wire should I use for rewinding?
A: Most ceiling fans use 24–28 AWG enamel-coated copper wire. Always match the original winding specification when possible.

Q: Are replacement parts available for rewinding machines?
A: Availability varies by brand. Reputable manufacturers provide spare chucks, gears, and circuit boards. Always confirm part access before purchase.
