How to Choose the Best CCTV Plastic Junction Box for Your Security System

When selecting a cctv plastic junction box, prioritize durability, IP66 or higher ingress protection, UV-resistant materials like polycarbonate, and sufficient internal space for cable splicing and connectors. For outdoor installations, ensure the enclosure has proper strain relief, corrosion-resistant terminals, and is compatible with your camera’s power and signal requirements. A well-chosen how to choose cctv plastic junction solution protects wiring from moisture, dust, and tampering while simplifying maintenance. Avoid low-cost boxes made from brittle ABS plastic that degrade in sunlight; instead, opt for impact-resistant models with knockouts and mounting flanges for secure installation.

About CCTV Plastic Junction Boxes

A CCTV plastic junction box is an electrical enclosure used to safely house wire connections between surveillance cameras, power supplies, and transmission cables such as Siamese coaxial or network (Cat6) cables. These enclosures are commonly installed at transition points—such as where underground conduit meets a wall-mounted camera—to protect splices from environmental exposure and physical damage.

Typically made from thermoplastic materials like polycarbonate or ABS, these boxes shield critical connections from water, dust, rodents, and accidental disconnection. They are widely used in residential, commercial, and industrial security systems, especially in outdoor environments where weatherproofing is essential 1.

Most models include features such as hinged or screw-on lids, internal mounting brackets for terminal blocks or power adapters, and pre-molded cable glands or knockouts for routing wires. Their non-conductive nature also reduces electrical hazards compared to metal alternatives.

Why CCTV Plastic Junction Boxes Are Gaining Popularity

The growing adoption of IP-based and analog HD surveillance systems has increased demand for reliable, low-maintenance connection points. As more homeowners and businesses install perimeter cameras, there's a rising need for affordable, easy-to-install enclosures that offer long-term protection without rust or conductivity issues.

Plastic junction boxes have become preferred over metal ones in many applications due to their inherent resistance to corrosion, lighter weight, and lower cost. Additionally, modern formulations of UV-stabilized plastics can now withstand prolonged sun exposure without cracking or yellowing—a major concern in earlier generations.

They are particularly popular in coastal areas, humid climates, and locations with fluctuating temperatures, where metal enclosures may corrode or condense internally. The rise of DIY security setups has further driven interest in user-friendly designs with tool-free access or snap-in components.

Types and Variants of CCTV Plastic Junction Boxes

Different types of plastic junction boxes serve specific installation needs. Understanding these variants helps match the right model to your environment and system complexity.

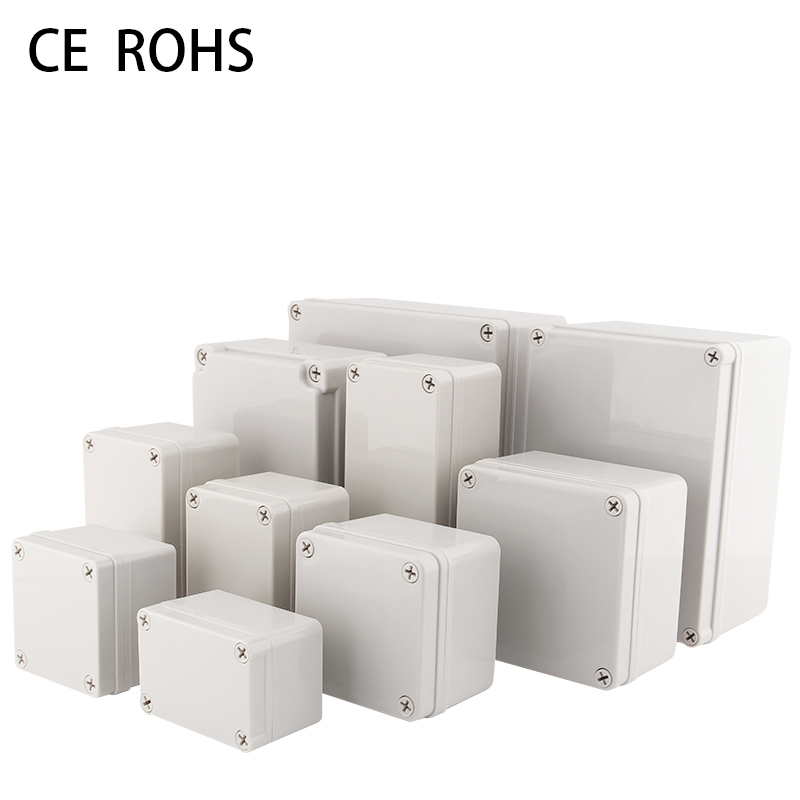

1. Standard Rectangular Enclosures

Pros: Inexpensive, widely available, simple design with basic knockouts.
Cons: Limited space; often lack internal organization features.
Best for: Indoor use or temporary outdoor setups under eaves.

2. Weatherproof (IP65/IP66 Rated) Boxes

Pros: Sealed gaskets, UV-resistant materials, drain holes, and robust latches prevent water ingress.
Cons: Slightly higher cost; some models require tools for opening.
Best for: Permanent outdoor installations exposed to rain and direct sunlight.

3. Splice-Specific Junction Boxes

Pros: Designed specifically for joining coaxial, power, and data lines; often include built-in terminal strips or fuse holders.
Cons: May not accommodate additional accessories like mini power supplies.
Best for: Analog CCTV systems using BNC connectors and DC power.

4. Hybrid Power + Splice Enclosures

Pros: Large interior volume allows integration of plug-in transformers or PoE injectors alongside cable terminations.
Cons: Bulkier size may be harder to conceal; requires ventilation if housing live electronics.
Best for: IP camera installations needing local power injection near the camera.

5. Flush-Mount vs. Surface-Mount Designs

Flush-mount: Installed within walls for clean appearance; ideal for new construction but harder to retrofit.
Surface-mount: Attached directly to walls or poles; easier to install and service, but more visible.

Key Features and Specifications to Evaluate

To make an informed decision when shopping for a what to look for in cctv plastic junction setup, consider the following technical and practical factors:

Ingress Protection (IP) Rating: Look for at least IP65 (dust-tight and protected against water jets); IP66 or IP68 is better for harsh conditions.
Material Type: Polycarbonate offers superior impact and UV resistance compared to ABS. Check product specs for UV stabilization claims.
Size and Internal Volume: Ensure enough room for wire bending radius, splices, heat shrink tubing, and future repairs. Measure existing components before choosing.
Cable Entry Points: Multiple knockouts or PG-threaded entries allow flexible routing. Removable knockouts offer adaptability.
Mounting Options: Integrated flanges, pole-mounting brackets, or adhesive pads affect ease of installation.
Terminal Blocks & Accessories: Some boxes come with DIN rail mounts or space for grounding wires—useful for organized wiring.
Color and Visibility: White or gray boxes blend with most surfaces; black versions reduce glare but absorb more heat.

Pros and Cons: When to Use a Plastic Junction Box

Advantages

Corrosion-resistant—ideal for wet or salty environments.
Electrically non-conductive—safer around low-voltage circuits.
Lightweight and easy to handle during installation.
Lower thermal conductivity than metal—reduces condensation risk.
Cost-effective compared to stainless steel or aluminum enclosures.

Disadvantages

Potential for UV degradation if not properly stabilized (check manufacturer warranty).
Less impact-resistant than metal in high-risk vandalism zones.
Can warp under extreme heat (e.g., direct desert sun on dark-colored units).
May attract rodents seeking shelter—seal all openings tightly.

Use plastic junction boxes when installing in standard outdoor or indoor settings with moderate exposure. Avoid them in high-traffic public areas prone to tampering unless paired with protective cages.

How to Choose a CCTV Plastic Junction Box

Selecting the right unit involves assessing your specific installation context. Follow this step-by-step guide:

Assess Environment: Is it indoors, outdoors, buried, or submerged? Choose IP66+ for exposed outdoor use.
Determine Cable Types: Will you connect coaxial, twisted pair, fiber, or power cables? Ensure adequate entry ports.
Calculate Space Needs: Include connectors, splices, slack, and any onboard electronics (like a PoE injector).
Check Temperature Range: Verify operating range (-20°C to +70°C is typical). Avoid dark enclosures in hot climates.
Evaluate Mounting Method: Wall, pole, flush, or magnetic mount? Confirm compatibility with surface type.
Look for Tool-Free Access: Hinged lids with quick-release latches simplify maintenance.
Avoid Thin-Walled Models: Thicker walls indicate better durability and heat insulation.
Verify Compliance: Look for UL, CE, or RoHS markings indicating safety and environmental standards.

Red flags to avoid: unclear IP ratings, no gasket seal, unbranded packaging, or absence of UV protection claims.

Price & Market Insights

CCTV plastic junction boxes typically range from $5 to $25 USD per unit, depending on size, material quality, and features.

Budget Tier ($5–$9): Basic ABS enclosures with minimal sealing; suitable only for sheltered locations.
Mid-Range ($10–$16): UV-stabilized polycarbonate with IP66 rating, multiple knockouts, and decent internal layout.
Premium ($17–$25+): Heavy-duty construction, transparent lids for visual inspection, integrated grounding, or hybrid power support.

Buying in bulk (e.g., 10+ units) often reduces per-unit cost by 15–30%. However, always verify consistency across batches. Higher-priced models usually justify cost through longer lifespan and reduced field failures.

Model Type	Avg. Price	IP Rating	Material	Best Use Case
Basic Rectangular	$5–$8	IP54	ABS	Indoor or covered areas
Weatherproof Dome	$10–$14	IP66	Polycarbonate	Outdoor wall/pole mounts
Hybrid Power Box	$18–$25	IP65	UV-PC	Remote IP camera feeds

Customer Feedback Synthesis

Analysis of verified buyer reviews reveals consistent patterns in satisfaction and complaints:

Common Praises:

“Easy to install with pre-drilled knockouts.”
“Stays dry even after heavy rainstorms.”
“Great value for the price—better than metal in coastal air.”

Frequent Complaints:

“Lid seal failed after six months in full sun.” (Often linked to non-UV-stabilized ABS)
“Too small for two Siamese cables and a connector block.”
“Knockouts were hard to remove without cracking.”

To avoid dissatisfaction, double-check dimensions, read recent reviews focusing on longevity, and purchase from reputable brands or suppliers with return policies.

Sourcing & Supplier Tips

These enclosures are available through online marketplaces (Amazon, eBay), electrical supply stores, and specialized security equipment distributors.

For Retail Buyers: Choose sellers with clear product specifications, customer service responsiveness, and return options.
For Bulk Purchases: Consider working directly with manufacturers via platforms like Alibaba—but request samples first to test build quality.
OEM/Private Label: Some suppliers offer customization (logo printing, color, size) for large orders (typically 500+ units).
Inspection Tips: Upon delivery, inspect for warped lids, missing gaskets, or brittle plastic. Flex a corner gently—if it cracks, reject the batch.

Always confirm compliance documentation (CE, RoHS) if importing or reselling.

Maintenance, Safety & Legal Considerations

Regular inspection every 6–12 months ensures ongoing performance. Check for:

Moisture accumulation inside the box.
Cracked seals or warping due to sun exposure.
Loose wire connections or corroded terminals.
Signs of rodent nesting or insect infestation.

Safety precautions:

Disconnect power before opening the enclosure.
Use dielectric grease on connectors to prevent oxidation.
Ensure all cables are strain-relieved to avoid pull-out.

Legally, while plastic junction boxes themselves aren’t regulated like electrical panels, they should comply with local building codes when part of permanent wiring. In the U.S., NEC Article 314 covers junction box requirements—including accessibility and fill capacity—which applies regardless of material 2. Always follow regional regulations regarding low-voltage installations.

Conclusion

Choosing the right cctv plastic junction solution comes down to matching durability, size, and environmental protection to your installation needs. Prioritize UV-stabilized polycarbonate enclosures with IP66 ratings for outdoor use, ensure adequate internal space for splices and service loops, and avoid cheap ABS models prone to cracking. Whether you're setting up a single home camera or managing a multi-point commercial system, investing in quality junction boxes improves reliability and reduces long-term maintenance costs. By following this guide, you’ll be equipped to select a safe, efficient, and lasting enclosure for your CCTV wiring.

FAQs

Can I use a plastic junction box underground?: Only if rated for burial (IP68) and placed in a protective conduit. Most standard boxes are not designed for direct soil contact.
Do plastic junction boxes need grounding?: The box itself doesn't conduct, but internal metal components (terminal blocks, screws) should be grounded if connected to powered devices.
How do I prevent condensation inside the box?: Use sealed gaskets, orient the box so knockouts face downward, and consider adding silica gel packs in humid environments.
Are transparent junction boxes a good idea?: They allow visual inspection without opening, but may degrade faster in UV light unless made from UV-rated polycarbonate.
Can I mount a plastic junction box on a metal pole?: Yes, using stainless steel straps or mounting brackets. Ensure the box does not restrict airflow if housing powered devices.
