How to Choose the Best Brushless Motor Frameless for Your Application

When selecting a brushless motor frameless, prioritize torque density, thermal management, and integration compatibility—especially if you're designing compact robotics, medical devices, or high-performance industrial systems. The best choice depends on your application's power-to-size ratio needs and control precision requirements. For instance, a high-torque-density frameless BLDC motor with integrated feedback sensors is ideal for surgical robots needing smooth, precise motion 1. Avoid off-the-shelf models without customization options if your design demands mechanical integration flexibility. Always verify winding specifications and thermal derating curves before finalizing.

Short Introduction

A brushless motor frameless (also known as a coreless or slotless rotor-stator set) differs from traditional motors by eliminating the housing, bearings, and shaft, delivering only the electromagnetic components: the rotor and stator. This design allows engineers to directly integrate the motor into their mechanical assembly, reducing volume, weight, and inertia. It’s particularly valuable in applications where space is constrained and efficiency matters—such as robotic joints, aerospace actuators, and advanced imaging equipment.

If you’re asking how to choose a brushless motor frameless, start by defining your torque, speed, and thermal constraints. Then match those to a model with compatible electromagnetic performance and physical dimensions that fit your housing. Unlike modular motors, these require custom mechanical support, so collaboration with suppliers early in the design phase is essential.

About Brushless Motor Frameless

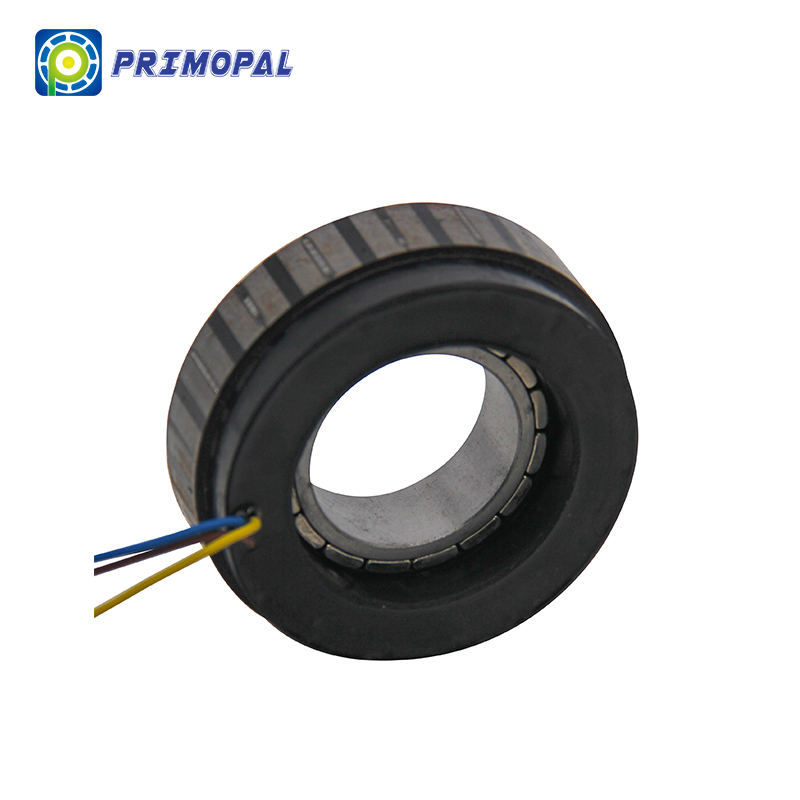

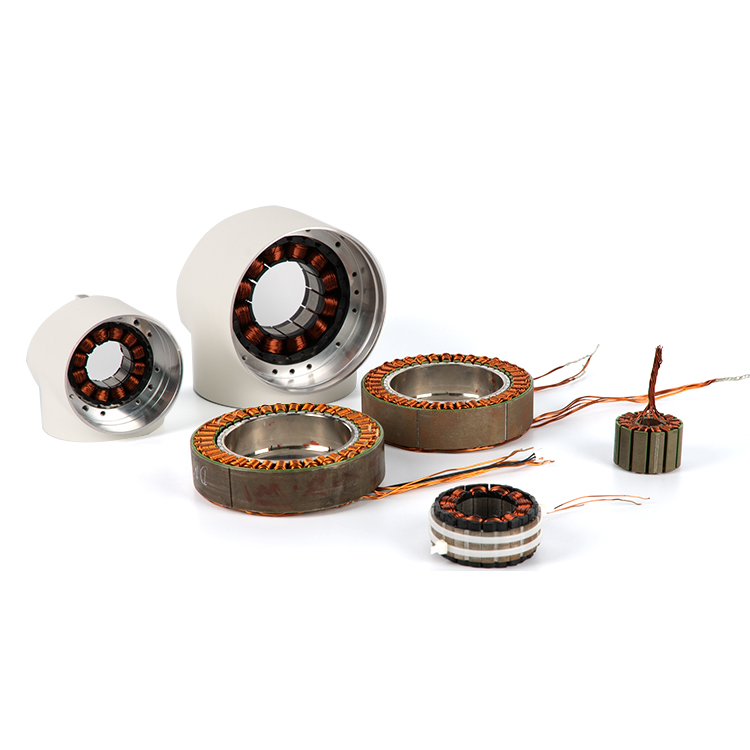

A frameless brushless DC (BLDC) motor consists of two main parts: a rotor (typically with permanent magnets) and a stator (with copper windings), both designed to be embedded within a host system. Without an external casing or built-in bearings, the motor relies on the end-user’s mechanical structure for alignment and support.

These motors are commonly used in high-precision fields. In medical robotics, for example, they enable minimally invasive surgical tools to achieve fine control with minimal heat generation. In industrial automation, they power rotary stages and direct-drive rotary tables where backlash-free transmission is critical. Aerospace applications benefit from their lightweight and high-efficiency characteristics in flight control surfaces and satellite positioning mechanisms.

The term "frameless" emphasizes the absence of structural components typically found in housed motors. Instead, manufacturers provide matched rotor-stator pairs engineered for seamless integration into custom assemblies.

Why Brushless Motor Frameless Is Gaining Popularity

Engineers are increasingly turning to frameless solutions due to advancements in miniaturization, demand for higher power density, and the need for more efficient electromechanical systems. As robotics and portable medical devices evolve, traditional motors often become too bulky or inefficient.

One major driver is the push toward electrification in mobile platforms—from drones to electric prosthetics. Frameless motors offer superior torque-to-weight ratios compared to canned servo motors. Additionally, removing the housing reduces parasitic losses and improves thermal coupling, allowing better heat dissipation through the host structure.

Another reason for rising adoption is improved manufacturing consistency. Modern magnet materials like neodymium-iron-boron (NdFeB) and precision winding techniques ensure reliable performance across batches 2. This reliability makes them viable even in safety-critical environments such as MRI-compatible instruments or autonomous vehicle steering units.

Types and Variants

Frameless motors come in several configurations, primarily differentiated by geometry, winding type, and magnetic topology:

• Slotless vs. Slotted Stators: Slotless designs reduce cogging torque and improve smoothness at low speeds but may have lower torque output. Slotted variants deliver higher torque density but can introduce vibration due to magnetic detent forces.
• Axial Flux vs. Radial Flux: Most frameless motors use radial flux architecture, where magnetic fields flow perpendicular to the axis of rotation. Axial flux types, though less common, offer shorter axial length and are useful in pancake-shaped installations.
• Inner Rotor vs. Outer Rotor: Inner rotor designs rotate the magnet assembly inside the stator, offering higher RPM capability. Outer rotor versions surround the stator, providing greater torque due to increased radius and moment arm.
• Custom-Wound vs. Standard Windings: Some vendors offer standard KV (RPM/Volt) options, while others allow full customization of back-EMF, resistance, and inductance for specific controller compatibility.

Each variant has trade-offs. For example, outer rotor motors generate more torque but may challenge cooling due to enclosed stators. Slotless motors excel in smooth operation but require careful thermal modeling under continuous load.

Key Features and Specifications to Evaluate

To make an informed decision when choosing a brushless motor frameless, assess the following parameters:

• Peak and Continuous Torque: Ensure the motor meets both short-term peak demands and sustained operational loads. Check derating curves for elevated temperatures.
• Speed Range: Confirm maximum RPM aligns with your gearbox or direct-drive requirements. High-speed models (>10,000 RPM) may require special balancing.
• Thermal Resistance (Rth): Lower values mean better heat transfer from windings to ambient. Values below 2 K/W are typical for well-designed units.
• Inertia Ratio: Match rotor inertia to your load for optimal servo tuning. A mismatch can lead to instability.
• Back-EMF Constant (Ke): Determines voltage generated per RPM; must align with your drive electronics.
• Winding Configuration: Delta vs. wye connections affect line current and thermal behavior. Wye offers smoother operation; delta delivers higher power.
• Magnet Type: NdFeB provides highest energy product but is sensitive to temperature. Samarium-cobalt resists demagnetization at high temps but costs more.

Also consider mechanical tolerances—runout, concentricity, and surface finish—which impact bearing life and vibration levels once integrated.

Pros and Cons

Advantages:

• High power and torque density
• Reduced size and weight
• Better thermal performance via direct mounting
• No mechanical play from couplings or misalignment
• Design freedom for compact, integrated systems

Disadvantages:

• Requires custom mechanical design and assembly expertise
• No built-in protection against contamination or moisture
• Limited availability of off-the-shelf testing fixtures
• Higher initial engineering effort and validation time
• Sensitive to improper installation (e.g., air gap deformation)

They are best suited for OEMs developing proprietary systems rather than hobbyists or retrofit projects. If you lack in-house mechanical design capabilities, partnering with a supplier that offers integration support is advisable.

How to Choose a Brushless Motor Frameless

Follow this step-by-step guide to select the right model:

1. Define Motion Requirements: List required torque, speed, acceleration, and duty cycle. Use motion profiles to calculate RMS and peak torque.
2. Determine Physical Constraints: Measure available diameter, axial length, and mounting surfaces. Account for rotor-stator air gap (typically 0.1–0.3 mm).
3. Select Cooling Method: Decide between conduction cooling (through housing), forced air, or liquid cooling. Verify thermal limits under worst-case ambient conditions.
4. Evaluate Control Compatibility: Match motor constants (Kt, Ke) with your amplifier’s voltage and current output. Ensure sensor feedback (resolver, encoder) can be integrated.
5. Assess Environmental Conditions: Consider exposure to dust, moisture, or corrosive agents. Plan for sealing or conformal coating if needed.
6. Engage Supplier Early: Share CAD models and loading scenarios. Request FEA analysis for thermal and magnetic performance.
7. Request Samples or Evaluation Kits: Test performance in your actual setup before mass integration.

Red flags include vague datasheets, lack of derating curves, or refusal to provide technical support. Avoid vendors who don’t specify magnet grade or insulation class.

Price & Market Insights

Frameless motors vary widely in price based on size, performance, and customization level. Small units (50–80 mm diameter) typically range from $300 to $800. Mid-sized, high-torque models cost $1,000–$3,000. Fully customized designs with specialized materials or certifications (e.g., ISO 13485 for medical use) can exceed $5,000 per unit.

Value tiers exist: entry-level options suit prototyping or non-critical tasks; premium motors offer tighter tolerances, higher efficiency, and traceable quality control. While some Chinese manufacturers offer lower-cost alternatives, verify build consistency and long-term supply stability.

For volume purchases (100+ units), expect 15–30% discounts. However, minimum order quantities (MOQs) may apply. Always compare total cost of ownership—not just upfront price—factoring in yield rates, failure risk, and integration labor.

Model	Diameter (mm)	Continuous Torque (Nm)	Max Speed (RPM)	Approx. Price
Kollmorgen TBM Series	75	1.8	6,000	$2,100
maxon BDLC 130 series	130	3.2	4,500	$3,400
Moog NGL Series	90	2.5	5,000	$2,800

Top-Seller & Competitive Analysis

Leading brands like Kollmorgen, maxon, and Moog dominate the high-end market due to rigorous testing, global support, and proven reliability. Kollmorgen’s TBM series stands out for its wide range of standard sizes and excellent thermal management. maxon offers exceptional precision and cleanroom-compatible builds, making it popular in medical applications. Moog excels in ruggedized designs for defense and aerospace sectors.

Mid-tier suppliers such as Tecnotion and Allied Motion provide competitive performance at lower prices, though with fewer regional service centers. Emerging Asian manufacturers offer cost-effective solutions but may lack comprehensive documentation or responsive engineering teams.

When comparing top sellers, focus not only on published specs but also on real-world consistency. Request test reports and ask about field failure rates. Also, check software tools—some vendors provide motor sizing calculators and thermal simulators that streamline selection.

Customer Feedback Synthesis

Based on user reviews and industry forums, common praises include:

• “Extremely smooth operation in robotic wrist joints.”
• “Saved 40% in volume compared to using a housed servo.”
• “Excellent torque linearity across the operating range.”

Recurring complaints involve:

• “Difficult to mount without proper tooling—needed custom alignment jigs.”
• “No clear guidance on recommended housing material for optimal heat transfer.”
• “Lead times extended during chip shortages affecting配套 drivers.”

Users emphasize the importance of early engagement with technical sales engineers and recommend investing in prototype validation.

Sourcing & Supplier Tips

Purchase from authorized distributors or directly from OEMs to avoid counterfeit or substandard units. For prototyping, consider evaluation kits that include mating connectors and basic mounting hardware.

If sourcing in bulk, negotiate service-level agreements (SLAs) covering delivery timelines and defect replacement. Ask for lot traceability and RoHS/REACH compliance documentation. When evaluating new suppliers, request sample testing data and inspect packaging quality.

For international shipping, confirm customs classifications (HTS codes) and import duties—especially for rare-earth magnet-containing motors. Work with freight forwarders experienced in handling sensitive electronic components.

Maintenance, Safety & Legal Considerations

Frameless motors generally require no maintenance due to the absence of brushes or sealed bearings. However, monitor for signs of overheating, insulation breakdown, or magnet degradation in high-temperature environments.

Safety precautions include ensuring proper grounding of the stator to prevent circulating currents and shielding cables to minimize EMI. In medical or explosive atmospheres, comply with IEC 60601 or ATEX standards respectively.

Legally, verify export controls—some high-performance motors fall under ITAR or EAR restrictions. Also, ensure compliance with local EMC regulations when integrating into finished products.

Conclusion

Choosing the right brushless motor frameless requires balancing electromagnetic performance, mechanical integration needs, and lifecycle costs. Focus on verified specifications, partner with reputable suppliers, and validate designs early. These motors shine in applications demanding compactness, precision, and efficiency—but only when properly specified and installed. For most professional applications, investing in a well-supported, high-quality unit pays off in reliability and performance.

FAQs

What does 'frameless' mean in a brushless motor?
A frameless motor lacks a housing, bearings, and shaft, consisting only of a rotor and stator intended for direct integration into a machine’s structure.

Can I replace a regular servo motor with a frameless one?
Not directly. Frameless motors require custom mechanical design and cannot be bolted in place like standard servos.

How do I cool a frameless brushless motor?
Use conduction cooling by mounting the stator to a heatsink or chassis, or employ forced air/liquid cooling depending on thermal load.

Are frameless motors more efficient than housed ones?
Yes, typically—they eliminate mechanical losses from couplings and housings, and allow better heat dissipation through direct contact.

Where can I find affordable frameless motors for prototyping?
Consider smaller models from maxon or Kollmorgen, or explore pre-certified modules from distributors like Anaheim Automation or Motion Solutions.
