When selecting a bevel gearbox gear waterproof unit, prioritize models with IP67 or higher ingress protection, precision-cut bevel gears made of hardened steel, and sealed housings designed to resist moisture, dust, and corrosion—especially if used in outdoor, marine, or high-humidity environments. A properly rated waterproof bevel gearbox ensures long-term reliability under demanding conditions 1. Key factors like gear ratio, torque capacity, input speed compatibility, and mounting configuration must align with your application’s mechanical requirements. For applications involving washdowns, submersion risks, or coastal installations, choosing a truly waterproof (not just water-resistant) model is essential to prevent internal lubricant contamination and gear wear.
Short Introduction
A waterproof bevel gearbox combines angular power transmission with environmental resilience. Unlike standard gearboxes, these units are specifically engineered to maintain performance even when exposed to water, humidity, or harsh cleaning procedures. They're commonly found in marine propulsion systems, food processing machinery, irrigation controls, and outdoor automation equipment where exposure to the elements is unavoidable. The term 'bevel gearbox gear waterproof' refers not only to the water resistance of the housing but also to the integrity of seals, shafts, and internal components that protect against moisture intrusion.
About Bevel Gearbox Gear Waterproof
A bevel gearbox transmits power between two intersecting shafts—typically at 90 degrees—using conically shaped gears. When equipped with waterproof features, such as O-ring seals, corrosion-resistant housings (often aluminum or stainless steel), and special gaskets, it becomes suitable for wet or corrosive environments. These gearboxes use either straight, spiral, or hypoid bevel gears, each offering different trade-offs in noise, efficiency, and load capacity.
The 'waterproof' designation usually means the unit meets specific international protection marking (IP) codes, such as IP65, IP67, or IP69K, which define resistance levels to solids and liquids 2. It's important to note that 'waterproof' does not imply indefinite submersion unless explicitly rated for it (e.g., IP68). In industrial contexts, true waterproofing involves more than just surface treatment—it includes sealed bearings, vent plugs that equalize pressure without allowing moisture entry, and dielectric greases on electrical interfaces (if applicable).
Why Bevel Gearbox Gear Waterproof Is Gaining Popularity
Industries are increasingly adopting waterproof bevel gearboxes due to stricter hygiene regulations, growing automation in outdoor settings, and demand for longer service intervals. Sectors like wastewater treatment, agriculture, and food & beverage manufacturing require equipment that can endure frequent cleaning with high-pressure water jets or chemical disinfectants. Traditional gearboxes often fail prematurely in these conditions due to seal degradation or rust formation inside the housing.
Additionally, renewable energy applications—such as solar tracking systems and tidal generators—operate in variable weather and benefit from robust, maintenance-free designs. As engineers design for sustainability and reduced downtime, the appeal of a durable, waterproof angular drive solution grows. This trend has led to improved manufacturing techniques, better synthetic lubricants, and modular designs that simplify replacement and integration.

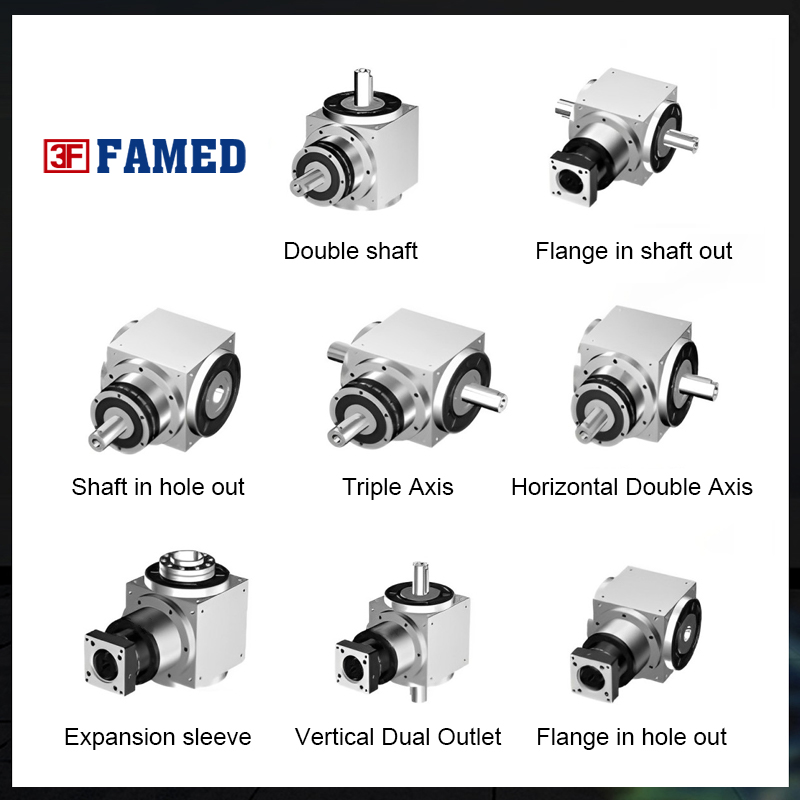

Types and Variants
Waterproof bevel gearboxes come in several configurations, each suited to particular operational needs:
Solid Shaft Bevel Gearboxes
These feature fixed-diameter output shafts and are ideal for direct coupling to driven equipment. They offer high torsional rigidity and minimal backlash.
- Pros: High strength, simple alignment, excellent torque transfer
- Cons: Less flexible in retrofitting; requires precise shaft matching
Hollow Shaft Bevel Gearboxes
Designed with a center bore allowing direct mounting over existing shafts, often secured with locking rings. Common in conveyor systems and rotating platforms.
- Pros: Easy installation, space-saving, reduces need for additional couplings
- Cons: Lower torsional stiffness compared to solid shaft versions
Right-Angle vs. Universal Joint Bevels
Most waterproof bevel gearboxes are right-angle types (90°), but some allow adjustable angles via universal joints or double bevel stages.
- Pros: Flexible positioning, useful in tight spaces
- Cons: Increased complexity, potential for vibration at high speeds
Single-Stage vs. Multi-Stage
Single-stage units provide moderate reduction ratios (typically 1:1 to 5:1), while multi-stage gearboxes achieve higher reductions through compound gearing.
- Pros (multi): Higher torque multiplication, compact size for high-ratio needs
- Cons (multi): Lower efficiency, increased heat generation, higher cost
Key Features and Specifications to Evaluate
To choose the best waterproof bevel gearbox, assess the following technical parameters:
Ingress Protection (IP) Rating
This is critical. Look for at least IP65 (dust-tight and protected against low-pressure water jets) for indoor washdown areas. For outdoor or submerged applications, aim for IP67 (temporary immersion up to 1 meter) or IP68/IP69K (continuous submersion or high-pressure, high-temperature washdowns).
Material Construction
Aluminum housings offer lightweight corrosion resistance and good heat dissipation. Stainless steel variants provide superior durability in saltwater or chemically aggressive environments but are heavier and more expensive.
Gear Type and Quality
Spiral bevel gears run quieter and handle higher loads than straight bevels. Precision-ground gears reduce backlash and improve efficiency. Check whether gears are case-hardened or nitrided for extended life.
Torque and Speed Ratings
Ensure the maximum continuous torque exceeds your system’s peak requirement by at least 20%. Also verify input speed limits to avoid resonance or overheating.
Lubrication Type
Some waterproof gearboxes use permanent lubrication (sealed-for-life), while others allow relubrication. Synthetic oils perform better in extreme temperatures and resist water washout.
Mounting Options
Flange-mounted, foot-mounted, or shaft-mounted configurations affect stability and integration ease. Confirm bolt patterns match your frame or motor setup.
Pros and Cons
Advantages:
- Reliable operation in wet or humid environments
- Reduced maintenance due to sealed construction
- Compact design ideal for space-constrained setups
- Efficient power transfer at right angles
- Longer lifespan compared to non-sealed counterparts in harsh conditions
Disadvantages:
- Higher initial cost than standard gearboxes
- Limited availability of certain ratios or sizes
- Potential for condensation buildup inside housing if no breather valve is present
- Repairs may require factory-level expertise due to sealed nature
Best suited for: Marine drives, agricultural sprayers, car wash systems, offshore platforms, and food processing lines.
Less ideal for: Dry, clean-room environments where waterproofing adds unnecessary cost, or ultra-high-speed applications exceeding 5,000 RPM unless specially rated.
How to Choose a Bevel Gearbox Gear Waterproof
Follow this step-by-step guide to make an informed decision:
- Determine Application Requirements: Identify torque, speed, duty cycle, and operating environment (indoor/outdoor, temperature range, exposure to chemicals).
- Select Appropriate IP Rating: Match the IP code to your exposure level—don’t over-specify unnecessarily.
- Choose Gear Ratio: Calculate required output speed and torque based on motor input. Use manufacturer catalogs or online calculators.
- Verify Shaft Configuration: Decide between solid, hollow, or flanged output based on driveline compatibility.
- Check Mounting Dimensions: Download CAD drawings or dimension sheets to ensure fit within your assembly.
- Assess Thermal Performance: In continuous-duty applications, confirm the gearbox won't overheat—look for thermal derating curves.
- Evaluate Sealing Technology: Prefer double-lip seals or labyrinth seals over basic rubber gaskets for prolonged wet exposure.
- Review Warranty and Support: Longer warranties (2+ years) often reflect confidence in build quality.
- Avoid Red Flags: Avoid units lacking clear IP ratings, missing test certifications, or vague material descriptions like “rust-proof” without specifying alloy type.
Price & Market Insights
Prices for waterproof bevel gearboxes vary widely based on size, materials, and performance specs. Small aluminum units with IP65 rating typically range from $80 to $250. Mid-range models with IP67, spiral bevel gears, and hollow shafts cost $250–$600. High-performance stainless steel or duplex-grade units with IP69K ratings and custom configurations can exceed $1,000.
Value isn’t always tied to price—some mid-tier brands offer comparable sealing and durability to premium labels. However, extremely low-cost options (<$70) often compromise on gear accuracy, seal quality, or metallurgy. Investing in a reputable brand with verifiable testing data usually pays off in longevity and reduced downtime.
| Model Type | IP Rating | Typical Torque Range | Price Range | Best Use Case |
|---|---|---|---|---|
| Aluminum Hollow Shaft | IP65 | 50–200 Nm | $120–$220 | Conveyors, packaging machines |
| Stainless Steel Right-Angle | IP68 | 150–500 Nm | $450–$800 | Marine thrusters, wastewater valves |
| Heavy-Duty Multi-Stage | IP69K | 300–1,200 Nm | $700–$1,400 | Food processing, chemical mixers |
Top-Seller & Competitive Analysis
Leading manufacturers like SEW-Eurodrive, Bonfiglioli, and Wittenstein produce high-quality waterproof bevel gearboxes known for precision and durability. However, newer entrants from Asia have gained traction by offering competitive pricing and acceptable performance for less critical tasks.
Top-selling models often feature modular design, allowing integration with brakes, encoders, or specific motors. When comparing options, focus on published test reports (e.g., salt spray resistance, thermal cycling), not just marketing claims. Some sellers inflate IP ratings without third-party verification—always request documentation or check independent reviews.
Customer Feedback Synthesis
Analysis of user reviews across industrial forums and B2B marketplaces reveals consistent themes:
Common Praises:
- “No leaks after six months in a car wash bay”
- “Easy to mount and align with our pump system”
- “Quiet operation despite heavy load”
Frequent Complaints:
- “Condensation formed inside after temperature swings”
- “Shaft seal failed after one year in saltwater spray”
- “Incorrect gear ratio shipped despite correct order number”
These highlight real-world issues: inadequate breathers causing internal moisture, inconsistent quality control in lower-tier brands, and mislabeling in distribution chains. Buyers recommend purchasing from authorized distributors and inspecting units upon delivery.
Sourcing & Supplier Tips
For individual buyers, reputable online platforms like Grainger, MISUMI, or RS Components offer verified products with return policies. For bulk purchases, consider working directly with OEMs or certified resellers who provide technical support and volume discounts.
If sourcing internationally, verify compliance with local electrical and safety standards (e.g., CE, UL, CCC). Request samples before large orders to evaluate build quality. Always confirm lead times—custom waterproof gearboxes may take 4–8 weeks to manufacture.
For private labeling or resale, ensure the supplier allows co-branding and provides marketing collateral and spec sheets. Conduct periodic audits if relying on a single source.
Maintenance, Safety & Legal Considerations
Even sealed gearboxes benefit from periodic inspection. Check for external damage, secure fasteners, and signs of leakage around shaft seals. If the unit has a breather plug, ensure it remains unobstructed to prevent pressure buildup.
Safety-wise, de-energize and lock out machinery before inspection. Never operate a gearbox beyond its rated speed or load, as overheating can degrade internal seals and lubricant.
Legally, ensure the product complies with regional environmental and electromagnetic compatibility (EMC) directives if used in automated systems. In food-grade applications, verify FDA-compliant lubricants are used internally. While not always regulated, adherence to ISO 9001 or ISO 14001 standards indicates quality management practices.
Conclusion
Choosing the right bevel gearbox gear waterproof unit requires balancing environmental demands, mechanical specifications, and total cost of ownership. Prioritize verified IP ratings, robust materials, and proven sealing technology over aesthetics or brand familiarity. Whether you’re automating an outdoor gate or building a marine propulsion system, a well-selected waterproof bevel gearbox enhances reliability and reduces unplanned maintenance. By carefully evaluating torque needs, housing type, and supplier credibility, you can find a solution that performs consistently—even in the wettest conditions.
FAQs
What does 'waterproof bevel gearbox' actually mean?
It means the gearbox is sealed to prevent water and dust ingress, typically rated IP65 or higher. True waterproof models withstand jets, immersion, or washdowns depending on their certification level.
Can I use a waterproof bevel gearbox underwater?
Only if it’s rated IP68 or IP69K. IP67 units tolerate temporary submersion (up to 1m for 30 minutes), but prolonged underwater use requires IP68 with proper cable glands and shaft seals.
How do I prevent condensation inside a sealed gearbox?
Use models with pressure-equalizing breather valves that block moisture. Alternatively, fill the housing with inert gas during assembly—a feature offered by some high-end manufacturers.
Are all stainless steel gearboxes waterproof?
No. Stainless steel resists corrosion but doesn’t guarantee waterproofing. Seals, gaskets, and ingress protection ratings determine actual water resistance—not just the housing material.
Do waterproof gearboxes need maintenance?
Yes. While many are sealed-for-life, regular visual inspections, cleaning of external surfaces, and checking for vibration or noise are recommended to catch early signs of wear or seal failure.
