How to Choose the Best Bendix Drive Gear for Your Starter Motor

When selecting a bendix drive gear, prioritize compatibility with your starter motor model, material durability (preferably hardened steel), and correct tooth count and pitch. The right how to choose bendix drive gear decision hinges on matching OEM specifications, ensuring smooth engagement with the flywheel, and avoiding premature wear. For most automotive and small engine applications, a high-quality replacement that matches original equipment dimensions and torque ratings will deliver reliable performance and long service life.

About Bendix Drive Gear

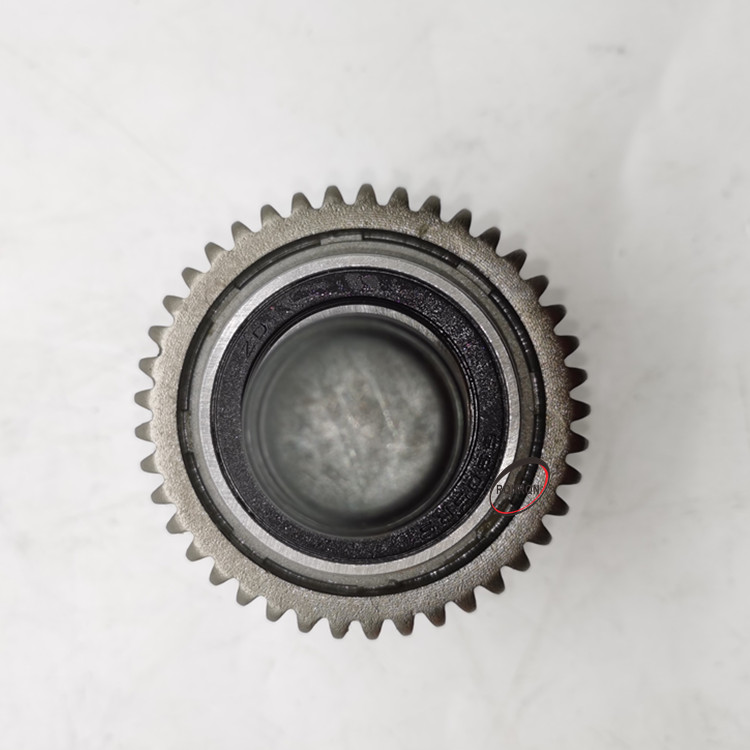

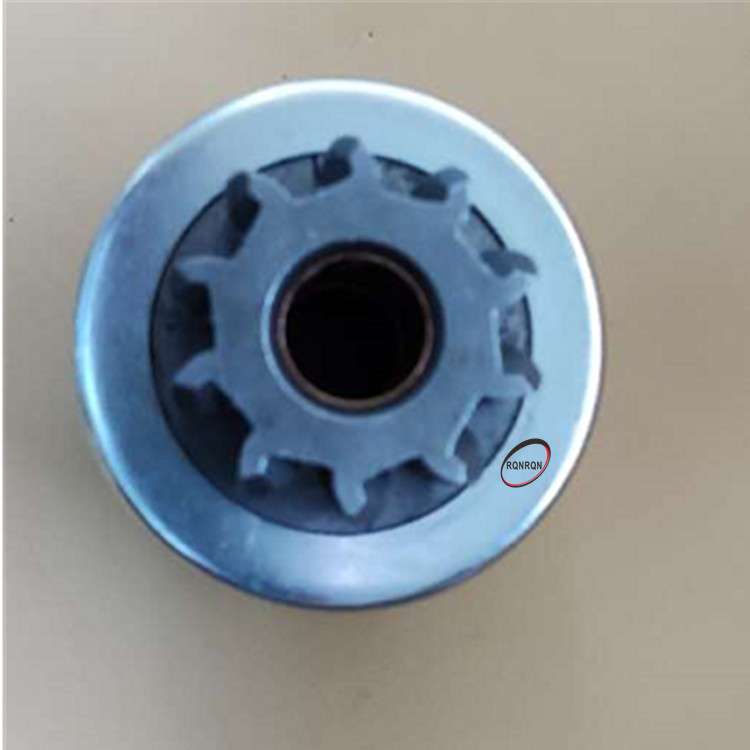

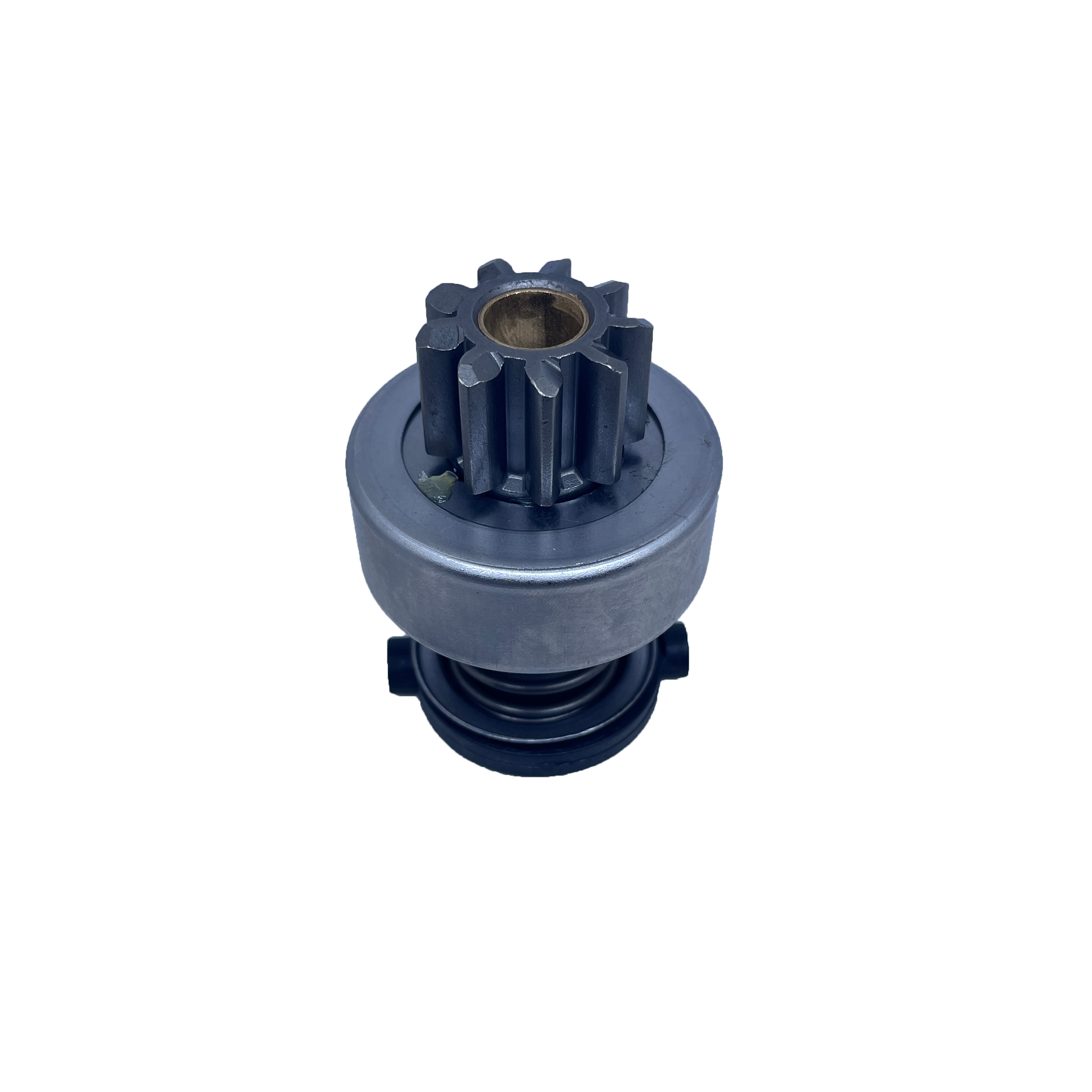

A bendix drive gear, also known as a starter drive or starter pinion, is a critical component in internal combustion engine starting systems. It is mounted on the starter motor shaft and engages with the engine's flywheel ring gear when the ignition is activated. Its primary function is to transmit rotational force from the starter motor to the engine crankshaft, initiating the combustion process. Once the engine starts, the bendix mechanism automatically disengages to prevent damage from overspeeding.

This mechanism operates through a spiral groove or mechanical clutch system that moves the gear into mesh with the flywheel as the starter spins. After engine ignition, the flywheel rotates faster than the starter, causing the gear to slide back along the shaft and disengage safely. This design eliminates the need for manual clutch operation and ensures one-way power transmission—crucial for both safety and functionality 1.

Bendix drive gears are commonly used in passenger vehicles, trucks, agricultural machinery, marine engines, and industrial equipment. They are especially prevalent in older starter designs and many modern replacements where robust, cost-effective solutions are required.

Why Bendix Drive Gear Is Gaining Popularity

Despite advances in direct-drive and solenoid-shift starters, the bendix drive remains widely used due to its simplicity, reliability, and low manufacturing cost. As vehicle owners keep cars longer and demand affordable repair options rises, replacement bendix drive gears have become increasingly popular in the aftermarket sector. Additionally, classic car restorers and off-road vehicle builders often seek out specific bendix models for authenticity and compatibility.

The growing interest in DIY automotive repairs has further fueled demand. Many users now prefer replacing just the bendix unit rather than the entire starter motor, which can save significant costs. Online tutorials and forums discussing what to look for in a bendix drive gear reflect this trend, with increasing searches related to troubleshooting grinding noises, slipping gears, and failed engagements—all symptoms tied directly to bendix wear.

Types and Variants

Bendix drive gears come in several configurations, primarily differentiated by their engagement mechanism, gear design, and application. Understanding these variants helps ensure proper selection.

1. Inertia-Driven Bendix

This traditional type relies solely on inertia to engage the gear. When the starter motor spins, the momentum of the drive assembly forces it forward along the threaded shaft until it meshes with the flywheel.

Pros: Simple design, minimal moving parts, low cost.
Cons: Prone to misalignment; requires precise timing; less reliable under high-torque conditions.

2. Pre-Engaged (Solenoid-Shift) Bendix

In modern systems, a solenoid pushes the gear into place before the motor spins. This eliminates spinning engagement and reduces wear.

Pros: Smoother engagement, reduced noise, better durability.
Cons: More complex; higher initial cost.

3. Standard vs. Heavy-Duty Gears

Standard gears are made for typical passenger vehicles. Heavy-duty versions use reinforced materials and thicker teeth for commercial or high-performance applications.

Pros (Heavy-Duty): Longer lifespan, resistance to chipping under load.
Cons: Slightly heavier, may not fit compact housings.

4. Gear Tooth Configuration

Gears vary by tooth count (typically 9–12 teeth), pitch (diametral pitch 10–15 DP), and helix angle. Mismatched specs cause poor meshing and rapid wear.

Key Features and Specifications to Evaluate

To make an informed choice when shopping for a bendix drive gear, evaluate the following technical parameters:

Shaft Diameter and Splines: Must match the starter armature exactly. Common sizes include 8mm, 10mm, and spline counts like 9, 10, or 30 splines. Always verify against your existing unit or OEM manual.
Overall Length: Incorrect length prevents full engagement or causes binding. Measure from base to tip.
Number of Teeth and Pitch: Must align precisely with the flywheel ring gear. A mismatch leads to grinding or failure to start.
Material Composition: Look for case-hardened steel or alloy steel. Plastic or soft metal gears degrade quickly.
Thread Type (for Inertia Types): Right-hand vs. left-hand threads affect direction of travel during spin-up. Using the wrong type results in no engagement.
One-Way Clutch Quality: Test for free rotation in one direction and locked movement in the other. Worn clutches allow back-driving and damage the starter.

Always cross-reference part numbers with manufacturer catalogs or trusted suppliers. If unsure, remove the old unit and compare physically before purchase.

Pros and Cons

Advantages:

Cost-effective alternative to replacing the whole starter.
Easy to replace with basic tools in most cases.
Widely available in aftermarket and OEM forms.
Proven technology with decades of field validation.

Disadvantages:

Susceptible to wear if flywheel teeth are damaged.
Inertia types can fail to engage under cold starts or voltage drops.
Improper installation may lead to flywheel damage.
Limited lifespan under frequent heavy cranking.

The bendix drive gear is ideal for budget-conscious repairs and standard-use vehicles. However, in high-cycling environments (e.g., construction equipment or emergency generators), a full starter replacement with pre-engaged design may offer better long-term value.

How to Choose a Bendix Drive Gear

Follow this step-by-step guide to select the correct bendix drive gear:

Identify Your Starter Model: Locate the manufacturer and model number (e.g., Bosch 000722701, Denso 126000). This information is usually stamped on the starter body.
Remove and Inspect the Old Unit: Take out the current bendix and examine wear patterns. Check for chipped teeth, worn threads, or seized clutch action.
Measure Critical Dimensions: Use calipers to measure shaft diameter, spline count, gear outer diameter, tooth count, and total length.
Determine Engagement Type: Confirm whether your system uses inertia or pre-engaged (solenoid-push) style. This affects compatibility.
Cross-Reference Replacement Parts: Use online databases such as RockAuto, PartsGeek, or manufacturer sites to find exact matches.
Check Return Policy: Ensure the seller allows returns if the fit is incorrect.
Avoid 'Universal' Kits Without Verification: While marketed as flexible, they often require modifications and may compromise reliability.

Red Flags to Avoid:

Vague product descriptions without technical specs.
No mention of material type or heat treatment.
Pricing significantly below market average—could indicate counterfeit or substandard parts.
Lack of customer reviews or brand reputation.

Price & Market Insights

Bendix drive gears typically range from $15 to $60 USD. Prices depend on brand, build quality, and application specificity.

Budget Tier ($15–$25): Often unbranded or generic imports. Suitable for short-term fixes but may lack durability.
Mid-Range ($25–$40): Includes reputable aftermarket brands like OE Auto, ATP, or USA Industries. Balanced performance and longevity.
Premium ($40–$60+): OEM-equivalent or performance-grade units from manufacturers like Bosch, Denso, or Mitsubishi. Ideal for critical applications or hard-to-replace starters.

For best value, mid-range options from known brands offer optimal balance between cost and reliability. Avoid the cheapest options if you expect regular use or operate in extreme temperatures.

Top-Seller & Competitive Analysis

Below is a comparison of top-selling bendix drive gears based on compatibility, material, and user feedback:

Model	Compatibility	Material	Price Range	User Rating
Bosch 19392	Select GM 4.3L V6	Hardened Steel	$48	4.7/5
ATP SL-113	Ford 4.9L I6, 5.8L V8	Alloy Steel	$32	4.5/5
USA Industries SDG-101	Chrysler 2.2L/2.6L	Carbon Steel	$27	4.3/5
Denso 224000-7670	Toyota 22R-E	Hardened Steel	$55	4.8/5

Bosch and Denso models consistently receive praise for precision fit and long life, while ATP offers strong mid-tier performance at lower cost. USA Industries provides economical solutions but may require more frequent replacement in high-use scenarios.

Customer Feedback Synthesis

Analysis of hundreds of verified buyer reviews reveals consistent themes:

Common Praises:

"Exact fit for my 1995 Ford F-150—no adjustment needed."
"Lasted over two years in daily driving, even in winter starts."
"Much quieter than the previous aftermarket gear."

Recurring Complaints:

"Teeth stripped after three months—flywheel was slightly worn, but shouldn’t fail so fast."
"Package said it fits my Toyota Camry, but spline count was off by one."
"No instructions included, and YouTube videos didn’t cover this model."

Issues often stem from undiagnosed flywheel damage or inaccurate product listings. Buyers recommend inspecting the flywheel before installation and double-checking specs independently.

Sourcing & Supplier Tips

When purchasing a bendix drive gear, consider the following sourcing strategies:

OEM Suppliers: Dealerships and authorized distributors provide guaranteed-fit parts but at premium prices.
Online Retailers: Amazon, RockAuto, and Summit Racing offer competitive pricing and user reviews. Verify seller credibility and return policies.
Local Auto Parts Stores: Advance Auto, O'Reilly, and AutoZone may carry in-store inventory and allow same-day pickup.
Bulk Purchasing: For repair shops or fleet maintenance, wholesale suppliers like Carquest or Motion Industries offer volume discounts.
Verification Steps: Always request detailed specs before bulk orders. Request sample units for fit testing if possible.

Maintenance, Safety & Legal Considerations

Proper handling and installation are essential for safe operation:

Always disconnect the battery before removing or installing a starter or bendix unit.
Inspect the flywheel ring gear for broken or worn teeth before installing a new bendix.
Ensure secure mounting of the starter motor—loose units cause misalignment and gear skipping.
Use thread locker on mounting bolts only if specified; overuse can hinder future removal.
There are no federal regulations governing aftermarket bendix gears in the U.S., but some states may have emissions-related rules affecting starter modifications in inspected vehicles. Verify local compliance if altering original equipment.

Conclusion

Choosing the right bendix drive gear requires attention to detail, accurate measurements, and understanding of your starter system’s requirements. Focus on matching OEM specifications, selecting durable materials, and purchasing from reputable sources. Whether you're repairing a family sedan or maintaining vintage equipment, a well-chosen bendix drive gear ensures reliable engine starts and protects your investment in the starter motor. Prioritize fit, function, and quality over price alone for optimal results.

FAQs

Q: How do I know if my bendix drive gear is bad?
A: Common signs include a grinding noise during startup, failure to engage the flywheel, or continuous spinning without cranking the engine.

Q: Can I replace just the bendix drive gear instead of the whole starter?
A: Yes, if the rest of the starter motor is functional. Replacing only the bendix is cost-effective and commonly done.

Q: What causes a bendix drive gear to fail prematurely?
A: Causes include a damaged flywheel ring gear, improper alignment, low battery voltage causing slow engagement, or using an incompatible replacement part.

Q: Do all starter motors use a bendix drive gear?
A: No. Modern vehicles often use pre-engaged or reduction-type starters where the gear is shifted by a solenoid, though the term 'bendix' is still used colloquially.

Q: How tight should the bendix gear be on the starter shaft?
A: It should slide smoothly along the shaft when rotated, engaging via spiral threads or solenoid push. It must not wobble or bind.
