How to Choose a Heat Resistant Bellows Cover: Buying Guide

When selecting a bellows cover heat resistant for industrial machinery, prioritize high-temperature resistance (typically 300°F to 1800°F), durable materials like silicone-coated fiberglass or ceramic fiber, and proper fit for linear or telescoping motion. The best choice depends on your specific application—whether it's CNC machines, welding robots, or furnace equipment—so always verify the material’s thermal stability and mechanical durability 1. A well-chosen heat resistant bellows cover protects sensitive components from extreme heat, debris, and mechanical stress, ultimately reducing downtime and maintenance costs.

About Bellows Cover Heat Resistant

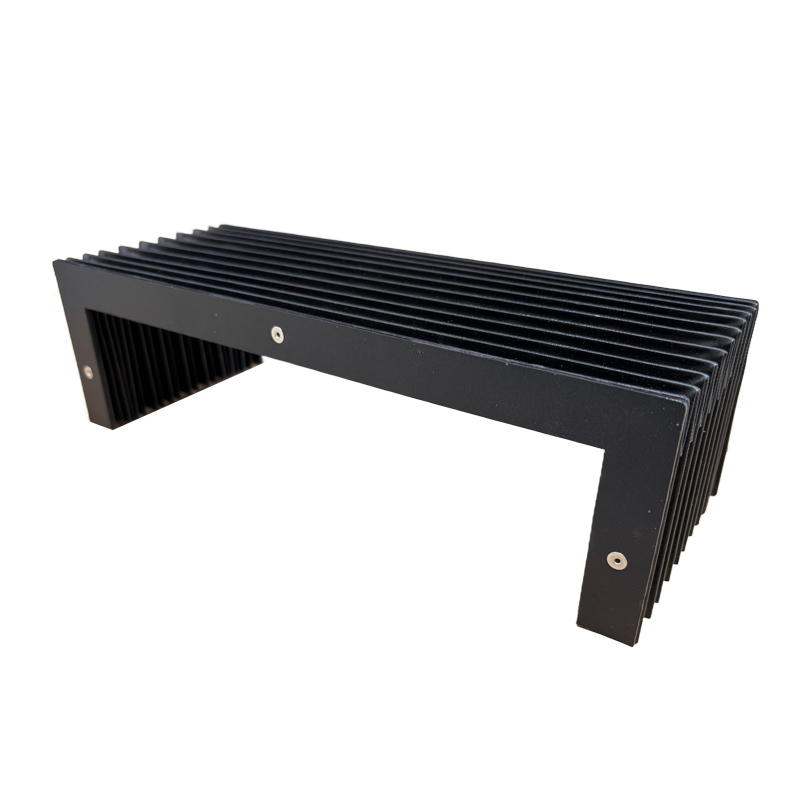

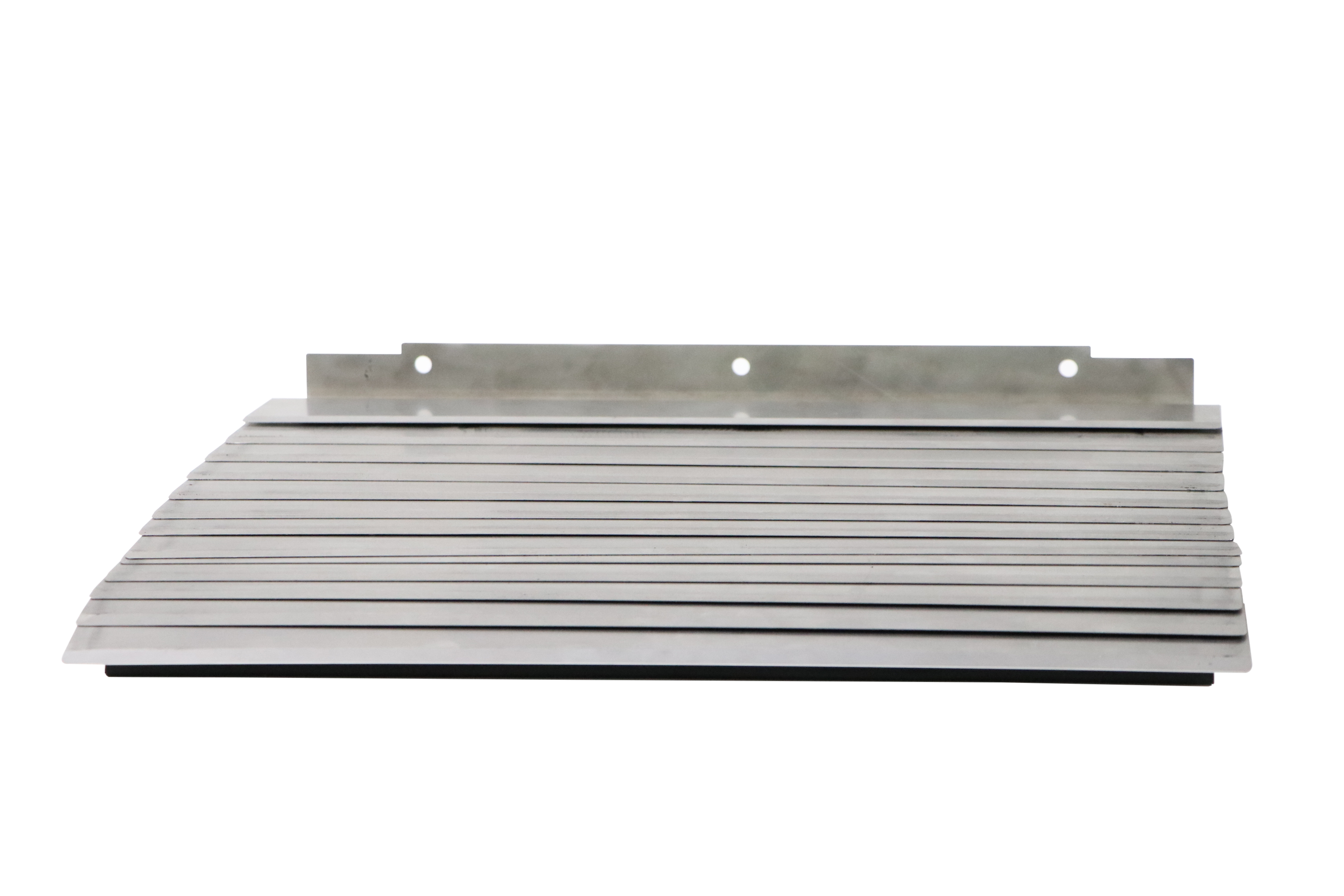

A heat resistant bellows cover is a flexible protective sleeve designed to shield mechanical components—such as guide rails, pistons, actuators, and hydraulic cylinders—from high temperatures, sparks, molten metal splatter, and abrasive debris. These covers are commonly used in demanding environments like metal fabrication, automotive manufacturing, foundries, and automated welding systems. Made from advanced composite materials, they expand and contract with moving parts while maintaining a sealed barrier against environmental hazards.

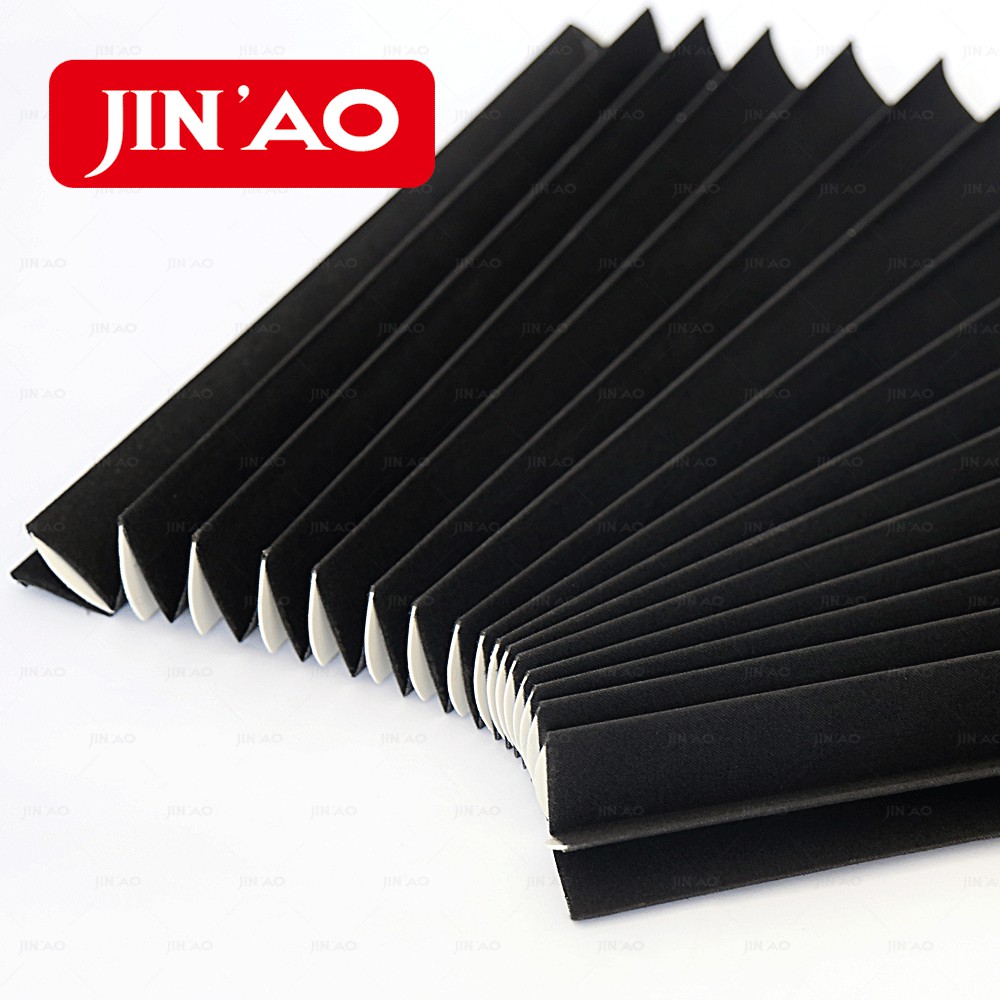

The term "bellows" refers to the accordion-like design that allows compression and extension. When enhanced for heat resistance, these covers are engineered using specialized fabrics and coatings capable of withstanding prolonged exposure to elevated temperatures without degrading. Unlike standard protective boots, heat resistant versions are built to endure not just physical wear but also thermal cycling—the repeated expansion and contraction caused by heating and cooling.

Why Bellows Cover Heat Resistant Is Gaining Popularity

As industrial automation increases, so does the need for reliable component protection under extreme conditions. Machines operating near furnaces, laser cutters, or robotic welders generate intense localized heat and flying debris. Traditional rubber or plastic boots fail quickly in such settings, leading to frequent replacements and unplanned downtime.

Heat resistant bellows covers offer a long-term solution. Their growing adoption stems from several factors: improved machine uptime, reduced maintenance labor, compliance with safety regulations, and the rising cost of replacing damaged linear guides or actuators. Additionally, modern manufacturing emphasizes lean operations and predictive maintenance—both of which benefit from durable, inspection-friendly protective solutions.

Another driver is the shift toward modular machine design. Engineers now specify bellows covers early in the design phase, knowing that proper guarding enhances both performance and worker safety. This proactive approach has increased demand for customizable, high-performance options tailored to specific stroke lengths, diameters, and temperature profiles.

Types and Variants

Bellows covers come in various configurations depending on application requirements. Understanding the differences helps ensure optimal performance and longevity.

1. Single-Ply vs. Multi-Ply Construction

Single-ply bellows are lighter and more flexible, suitable for lower-heat applications (up to 500°F). They’re often made from silicone-coated fiberglass and work well in CNC machining centers where occasional spark exposure occurs.

Pros: Lightweight, cost-effective, easy to install.
Cons: Limited heat and abrasion resistance compared to heavier variants.

Multi-ply designs stack two or more layers of heat-resistant fabric, offering superior protection up to 1800°F. These are ideal for foundry equipment or near-induction heaters.

Pros: Excellent thermal insulation, longer service life.
Cons: Heavier, less flexible, higher initial cost.

2. Material-Based Types

Silicone-Coated Fiberglass: Common for moderate heat (up to 1000°F), resistant to oils and mild chemicals 2. Good balance of flexibility and protection.
Ceramic Fiber Cloth: Used in ultra-high-temperature environments (1200–1800°F). Rigid when cold but maintains integrity under extreme heat.
Aluminized Glass Fabric: Reflects radiant heat effectively; often used in welding zones. Can handle intermittent contact with hot particles.
Stainless Steel Mesh Reinforced: Combines metal strength with heat resistance. Ideal where mechanical impact is a concern alongside high temps.

3. Design Styles

Telescoping (Accordion) Style: Most common. Folds neatly during retraction and extends fully during operation. Suitable for vertical and horizontal motion.

Roll-Up (Pleated) Type: Rolls rather than folds, reducing internal friction. Best for high-cycle applications but requires precise alignment.

Custom-Welded Seams: For non-standard shapes or large openings. Offers better sealing but at increased cost.

Key Features and Specifications to Evaluate

To choose the right bellows cover heat resistant, consider the following technical parameters:

Temperature Rating: Check both continuous and peak exposure limits. Don’t rely solely on advertised max temps—verify test standards (e.g., ASTM E1354).
Compression Ratio: Indicates how much the cover can collapse. Typical ratios range from 3:1 to 6:1. Higher ratios allow compact retracted length.
Extension Length & Stroke: Must match machine travel. Always add 10–15% extra for tension-free movement.
Diameter (Inner/Outer): Ensure clearance around moving parts and mounting hardware.
Flame Resistance: Look for self-extinguishing materials meeting UL 94 V-0 or NFPA 701.
Environmental Resistance: Consider exposure to coolant, oil, UV light, or chemicals. Some coatings degrade faster under certain conditions.
Mounting Options: Flanges, clamps, drawstrings, or adhesive strips. Choose based on vibration levels and accessibility.

Pros and Cons

Advantages:

Protects expensive linear motion systems from heat damage
Reduces fire risk by containing sparks and hot particles
Extends equipment lifespan and reduces maintenance frequency
Improves workplace safety by shielding operators from hot surfaces
Available in custom sizes and shapes for complex installations

Limitations:

Higher upfront cost than standard boots
Some materials become stiff at low temperatures
Not all types handle lateral loads well—misalignment causes premature wear
Limited recyclability due to composite construction

These covers are most beneficial in high-heat, high-risk environments. In cooler, clean-room settings, they may be over-engineered and unnecessary.

How to Choose Bellows Cover Heat Resistant

Selecting the right model involves a step-by-step evaluation:

Assess Operating Temperature: Measure actual surface and ambient temps near the component. Use an infrared thermometer if possible. Choose a cover rated at least 20% above the maximum recorded temperature.
Determine Motion Type: Linear, rotary, or multi-axis? Telescoping works best for straight-line travel; pleated types suit oscillating movements.
Measure Critical Dimensions: Record extended length, compressed height, inner diameter, and any obstructions. Include space for mounting hardware.
Evaluate Environmental Exposure: Are there cutting fluids, welding slag, or corrosive gases? Select chemically resistant coatings accordingly.
Check Mounting Compatibility: Verify whether flange size, bolt pattern, or clamp style matches existing fixtures.
Review Safety Standards: Confirm compliance with OSHA, ISO 14120 (machine guarding), or local fire codes.
Consult Manufacturer Data Sheets: Compare real-world performance metrics, not just marketing claims.

Red Flags to Avoid:

Unverified temperature ratings (e.g., “up to 2000°F” with no testing standard)
No information about flame spread or smoke toxicity
Poor seam construction (stitched instead of welded on high-temp models)
Vague material descriptions like “industrial-grade fabric”
Lack of dimensional drawings or tolerance specs

Price & Market Insights

Pricing varies widely based on size, material, and customization level.

Standard Off-the-Shelf Models: $50–$300. Suitable for common diameters and strokes.
Heavy-Duty / High-Temp Versions: $300–$800. Includes aluminized or multi-ply constructions.
Fully Custom Units: $800–$2,500+. Used in specialty machinery or large-scale industrial systems.

While premium models cost more, they often deliver better ROI through longer service intervals. However, avoid over-specifying—using a 1800°F-rated cover in a 600°F environment may double costs without added benefit. Focus on value: total cost of ownership, including replacement frequency and labor.

Top-Seller & Competitive Analysis

Several brands dominate the industrial bellows market, including Bunting, Habasit, and SKF. While direct comparisons depend on exact specifications, key differentiators include seam integrity, coating uniformity, and dimensional accuracy.

Model	Max Temp	Material	Compression Ratio	Approx. Price
Bunting BC-FG100	1000°F	Silicone Fiberglass	4:1	$220
Habasit HTR-1200	1200°F	Aluminized Fabric	5:1	$450
SKF TCB 1800	1800°F	Ceramic Fiber	3:1	$780
Generic OEM Supply	800°F (unverified)	Coated Fiberglass	4:1	$120

Note: Independent lab testing shows branded models consistently meet stated temperature and flame resistance claims, whereas generic alternatives sometimes fall short—especially in sustained heat tests.

Customer Feedback Synthesis

Analysis of user reviews across industrial forums and distributor sites reveals consistent themes:

Common Praises:

“Lasted over two years in our plasma cutting bay—no signs of cracking.”
“Easy to install with included flange kit.”
“Noticeable drop in rail maintenance after installation.”

Frequent Complaints:

“Compressed too short—rubbed against frame during full retraction.” (Sizing error)
“Material became brittle after six months despite being rated for 1000°F.” (Possible counterfeit or degraded batch)
“No dimensional drawing provided—had to return for correct fit.”

The majority of negative experiences stem from incorrect sizing or unclear product descriptions, not inherent design flaws.

Sourcing & Supplier Tips

Purchase from reputable industrial suppliers or directly from manufacturers whenever possible. Major platforms like McMaster-Carr, Grainger, and Misumi offer vetted products with detailed specs and return policies 3.

For bulk orders:

Negotiate volume pricing with certified distributors.
Request sample units before committing to large purchases.
Verify lead times—custom items can take 4–8 weeks.
Ask for material certifications (e.g., RoHS, REACH, UL).

If sourcing internationally, confirm shipping terms (FOB, CIF) and inspect upon arrival for defects or inconsistencies.

Maintenance, Safety & Legal Considerations

Regular inspection is critical. Check monthly for:

Cracks, burns, or holes in the material
Loose stitching or failing seams
Accumulated debris inside the folds
Signs of rubbing or misalignment

Replace immediately if structural integrity is compromised. Never patch a severely damaged heat resistant bellows cover—temporary fixes can fail catastrophically.

Safety-wise, ensure the cover doesn’t restrict machine movement or create pinch points. Follow lockout/tagout procedures during inspection or replacement.

Legally, machine guards—including bellows covers—must comply with regional safety standards such as ANSI B11.19 (U.S.) or EN 953 (EU). Non-compliance can result in fines or liability in case of injury.

Conclusion

Choosing the right bellows cover heat resistant requires balancing temperature demands, mechanical fit, and long-term reliability. Prioritize verified material ratings, proper dimensions, and robust construction. While off-the-shelf models work for many applications, custom solutions may be necessary for extreme or unique setups. By focusing on real-world performance and supplier credibility, buyers can significantly improve machine protection and operational efficiency.

FAQs

What temperature range do most heat resistant bellows covers handle?
Most range from 300°F to 1800°F, depending on material. Silicone-coated fiberglass handles up to 1000°F; ceramic fiber versions go higher.

Can I use a heat resistant bellows cover in a wet environment?
Yes, if the material is coated (e.g., silicone or PVC). Uncoated fiberglass absorbs moisture and loses strength.

How do I measure for a replacement bellows cover?
Record fully extended length, compressed height, inner diameter, and mounting style. Include photos if ordering custom.

Are heat resistant bellows covers repairable?
Minor surface burns may be tolerable, but cuts, holes, or seam failures require full replacement.

Do these covers need regular maintenance?
Yes. Inspect monthly for damage, clean debris from folds, and ensure no rubbing occurs during motion.
