When selecting a ball float level switch for liquid level control in tanks or reservoirs, prioritize durability, material compatibility, and correct float size to ensure long-term reliability. A properly chosen ball float level switch for water tank applications will provide accurate, maintenance-free operation for years. Look for corrosion-resistant materials like stainless steel or engineered plastics, verify voltage and current ratings match your system, and confirm the mounting style fits your tank design. Avoid cheap models with poor sealing, as they often fail prematurely. For most residential and light industrial uses, a top-mounted PVC or polypropylene switch offers the best balance of cost and performance.
About Ball Float Level Switch
A ball float level switch is a mechanical device used to detect and control liquid levels in tanks, sumps, and reservoirs. It operates on a simple principle: a hollow spherical float moves up and down with the liquid surface, connected via arm or cable to a switching mechanism. As the liquid rises or falls, the float's motion triggers an electrical contact that can start or stop pumps, open or close valves, or activate alarms.
These switches are commonly used in water treatment systems, HVAC equipment, irrigation setups, sewage sumps, and industrial process tanks. Their simplicity makes them ideal for both automatic pump control and overflow protection. Unlike electronic sensors, ball float switches require no external power to sense level—they rely solely on buoyancy and gravity, making them inherently fail-safe in many configurations.
Because of their robust design and low failure rate when properly matched to the application, ball float level switches remain one of the most trusted methods for liquid level monitoring across residential, commercial, and industrial environments.
Why Ball Float Level Switch Is Gaining Popularity
In recent years, there has been a resurgence in demand for mechanical solutions like the ball float level switch, especially in applications where reliability outweighs the need for digital integration. One major reason is their proven track record in harsh or remote environments where electronic sensors may fail due to scaling, coating, or electrical interference.
Homeowners and facility managers alike appreciate the plug-and-play nature of these devices—no programming, calibration, or specialized tools required. Additionally, increasing awareness of energy efficiency and system longevity has led users to favor components with minimal moving parts and no standby power consumption.
The growing DIY market has also contributed to popularity, as many ball float switches come with straightforward installation guides and universal mounting options. In wastewater management and rainwater harvesting systems, where clogging and chemical exposure are common, the resilience of well-designed float switches stands out compared to ultrasonic or capacitive alternatives 1.
Types and Variants
Ball float level switches come in several configurations, each suited to different tank designs, media types, and control needs. Understanding these variants helps avoid mismatched installations.

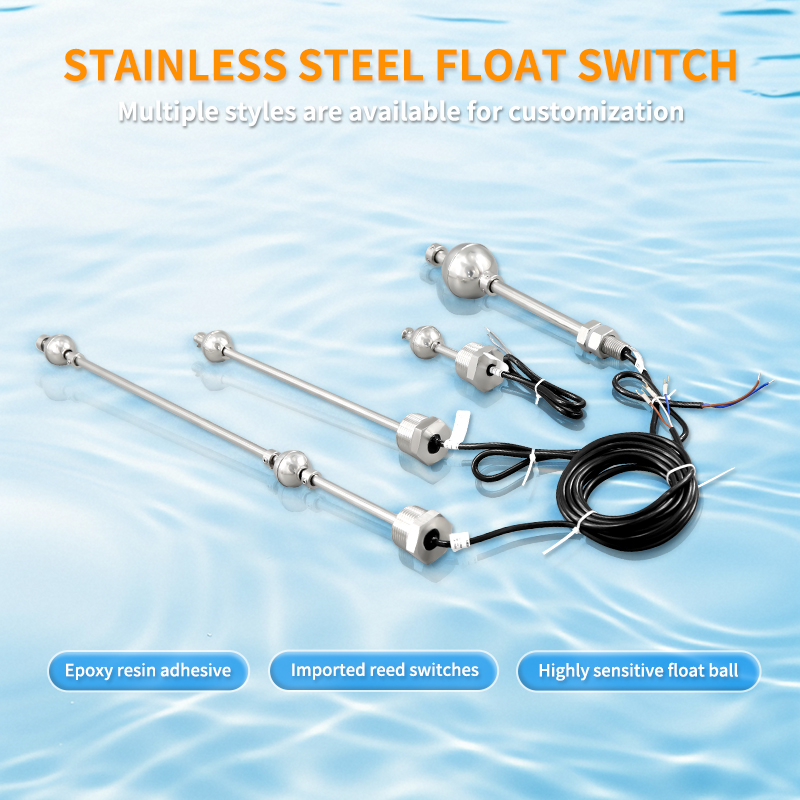

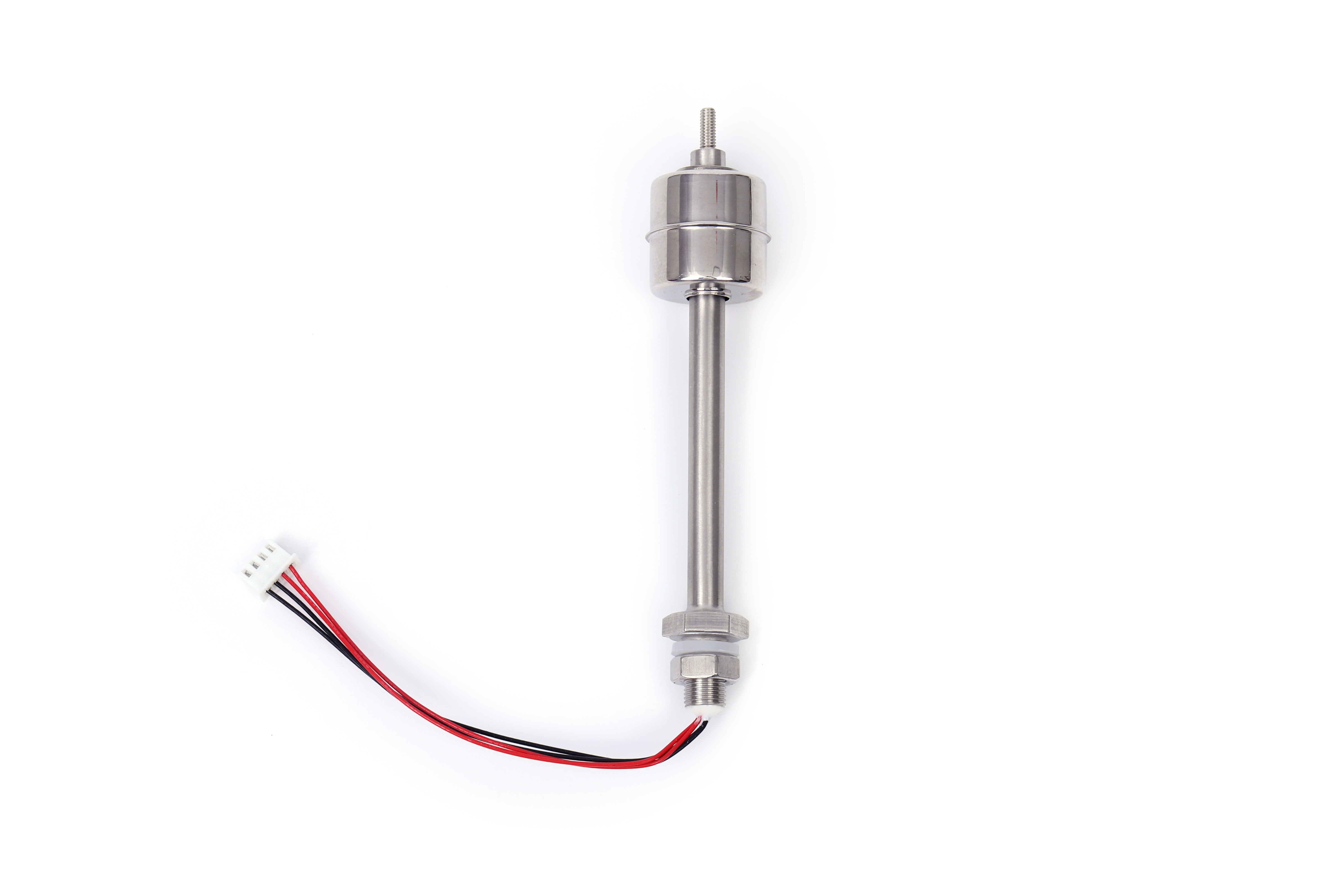

Top-Mounted (Vertical) Float Switches
These are the most common type, installed through the top of a tank with the float hanging vertically below. The float rises and falls along a rod or guide tube.
- Pros: Easy to install and service; widely available; suitable for deep tanks.
- Cons: Requires access to the tank top; not ideal for pressurized or sealed vessels unless designed for it.
Side-Mounted (Horizontal) Float Switches
Mounted through the side wall of a tank, these use a pivoting arm that extends inward. As the liquid level changes, the float swings up or down to actuate the switch.
- Pros: Can be installed on existing tanks without roof penetrations; good for retrofitting.
- Cons: More prone to mechanical binding if debris accumulates; limited by wall thickness and accessibility.
Cable-Suspended Float Switches
Used primarily in deep wells or sump pits, this version features a float attached to a flexible cable that routes over a pulley to a switch housing mounted externally.
- Pros: Adjustable range; works in very deep tanks; isolates electronics from wet environment.
- Cons: Cable can tangle or stretch over time; requires precise routing and anchoring.
Magnetic Reed vs. Microswitch Mechanisms
Internally, switches use either magnetic reed contacts sealed in a tube or mechanical microswitches.
- Reed Switches: Hermetically sealed, corrosion-resistant, but limited current capacity.
- Microswitches: Higher load tolerance, more durable under frequent cycling, but may have shorter life in humid conditions if seals degrade.
Key Features and Specifications to Evaluate
To choose the right ball float level switch, assess the following technical and environmental factors:
Liquid Compatibility
Ensure all wetted parts (float, stem, seal) are compatible with the fluid. For potable water, look for NSF/ANSI 61 certification. For chemicals or wastewater, check resistance to pH extremes and solvents. Common materials include:
- Polypropylene – good for acids and alkalis
- PVDF – excellent chemical resistance
- Stainless steel 316 – high strength and corrosion resistance
- PVC – economical for water and mild chemicals
Switch Rating (Voltage & Current)
Match the switch’s electrical rating to your load. Small pumps (under 1/2 HP) typically draw 5–10 amps at 120V. Larger systems may require 240V or higher. Always derate by 20% for safety. If controlling a relay or controller input, a low-power reed switch may suffice.
Float Size and Buoyancy
Larger floats offer better stability in turbulent liquids but require more space. Minimum buoyancy should exceed the force needed to actuate the switch. Check manufacturer data for displacement volume and lifting capacity.
Mounting Style and Connection
Verify thread size (e.g., 1/2", 3/4" NPT), flange type, or custom bracket requirements. Some models include adjustable brackets for fine-tuning trip points.
Temperature Range
Standard plastics work up to 80°C (176°F). For hot water or steam environments, specify high-temp polymers or metal housings.
Adjustability
Some units allow adjustment of the on/off point via float position or arm length. This is useful when precise control levels are needed.
Pros and Cons
Like any technology, ball float level switches have strengths and limitations.
Advantages
- Highly reliable in clean to moderately dirty fluids
- No external power needed for sensing function
- Low cost compared to electronic sensors
- Long service life with minimal maintenance
- Fail-safe operation in normally open/closed configurations
Disadvantages
- Can jam in sludge-heavy or fibrous media
- Limited precision compared to continuous level transmitters
- Requires physical movement space inside tank
- Not suitable for highly viscous or sticky liquids
- Vulnerable to damage from rapid water hammer or turbulence
They are best suited for on/off control rather than proportional regulation. If your system requires analog output or remote monitoring, consider pairing the float switch with a PLC or adding a secondary sensor.
How to Choose a Ball Float Level Switch
Follow this step-by-step guide to make an informed decision:
- Define Your Application: Is it for water, oil, chemical, or wastewater? Will it control a pump, prevent overflow, or signal low level?
- Check Tank Dimensions: Measure depth, access points, and internal obstructions. Ensure the float has room to move freely.
- Select Mounting Type: Top-mount for new tanks, side-mount for retrofits, cable-suspended for deep pits.
- Verify Material Compatibility: Cross-reference fluid properties with manufacturer’s chemical resistance charts.
- Determine Electrical Requirements: Match switch rating to pump motor specs. When in doubt, use a relay.
- Evaluate Environmental Conditions: Consider temperature, pressure, vibration, and exposure to UV or weather.
- Look for Certifications: NSF, UL, CE, or ATEX ratings add assurance for safety and compliance.
- Avoid Red Flags: No datasheet, vague specifications, unbranded products, or missing IP ratings should raise concerns.
Avoid overly cheap models lacking IP68 ingress protection or proper strain relief on wiring. Also, steer clear of non-adjustable units if your system’s operating level might change.
Price & Market Insights
Pricing varies significantly based on materials, build quality, and certifications.
- Budget Tier ($10–$25): Basic PVC or polyethylene switches for residential sump pumps. Often lack detailed specs or long warranties.
- Mid-Range ($25–$60): Durable construction with stainless steel hardware, IP68 rating, and clear documentation. Suitable for commercial and light industrial use.
- Premium ($60–$150+): Full-metal bodies, explosion-proof ratings, or marine-grade materials. Used in oil & gas, food processing, or hazardous locations.
While budget options may seem attractive, mid-range models typically offer the best value—balancing reliability, longevity, and support. Premium units are justified only in extreme environments or regulated industries.
Top-Seller & Competitive Analysis
Several brands dominate the market, each with distinct advantages.
| Model | Material | Max Current | Mounting | Price Range |
|---|---|---|---|---|
| Liberty Pumps 632 | Polypropylene | 10A @ 120V | Top-mount | $35–$45 |
| Flo-Tech FTB-1 | PVC | 5A @ 120V | Side-mount | $28–$38 |
| Ohmart/Vega Series 2000 | SS 316 | 15A @ 240V | Top/Side | $90–$120 |
| King Instrument KFS-3 | PVDF | 8A @ 120V | Top-mount | $50–$70 |
The Liberty 632 is popular for its ruggedness and wide availability. Flo-Tech offers affordability for basic side-mount needs. Ohmart/Vega serves heavy-duty industrial roles, while King Instruments excels in chemical resistance.
Customer Feedback Synthesis
Based on aggregated reviews from industrial suppliers and e-commerce platforms:
Common Praises:
Users frequently commend ease of installation, long-term reliability, and clear on/off action. Many note that well-built models operate for 5+ years without issues in clean water systems. The mechanical simplicity is appreciated in off-grid or backup systems.
Recurring Complaints:
Failures often stem from using plastic switches in abrasive or chemically aggressive environments. Some report premature seal degradation or microswitch corrosion in humid settings. A few mention difficulty adjusting trip points on fixed-arm models. Misapplication—such as using a small float in a churning sump—is a frequent root cause of dissatisfaction.
Sourcing & Supplier Tips
Buy from reputable distributors or authorized dealers to ensure authenticity and warranty coverage. For bulk purchases, request product samples before committing. Verify return policies and lead times, especially for specialty materials.
When sourcing internationally, confirm voltage compatibility and regulatory markings. Alibaba or similar platforms can offer competitive pricing, but insist on test reports and material certifications. Consider working with suppliers who provide CAD drawings or installation templates.
Always inspect incoming units for packaging integrity, labeling clarity, and visible defects. Test operation manually before installation.
Maintenance, Safety & Legal Considerations
Regular inspection every 6–12 months is recommended. Check for float buoyancy (ensure it doesn’t fill with liquid), pivot smoothness, and wire insulation condition. Clean the float and guide rod if scaling or biofilm builds up.
Safety-wise, de-energize circuits before servicing. Use lockout/tagout procedures in industrial settings. Ensure the switch is rated for the circuit it controls—undersized switches can overheat and pose fire risks.
Legally, some jurisdictions require certified components in potable water systems (e.g., NSF 61) or explosive atmospheres (ATEX, IECEx). Always verify local codes before final installation.
Conclusion
Choosing the right ball float level switch comes down to matching the device to your specific fluid, tank configuration, and control needs. Prioritize material compatibility, proper electrical ratings, and robust construction over initial cost. For most standard water level control tasks, a top-mounted polypropylene or stainless steel model from a known brand offers optimal performance and longevity. By carefully evaluating your requirements and avoiding common pitfalls like underspecification or poor mounting, you can ensure reliable, trouble-free operation for years to come.
FAQs
What is the lifespan of a ball float level switch?
With proper selection and maintenance, most last 5–10 years. Harsh environments may reduce this to 2–3 years.
Can a ball float switch work in a sealed pressurized tank?
Yes, but only if specifically rated for pressure. Standard atmospheric models will leak or fail.
Why does my float sink over time?
This usually means the float has developed a crack or seal failure and filled with liquid. Replace it immediately.
Are ball float switches adjustable?
Some models allow adjustment of the trip point via float position or arm angle. Check product specs before purchase.
Do I need a relay with my float switch?
If the pump draws more than 80% of the switch’s rated current, use a relay to protect the contacts.
