How to Choose the Best AV Matrix Video Switcher: A Complete Buying Guide

When selecting an AV matrix video switcher, prioritize models that support your required input/output formats (HDMI, SDI, etc.), offer scalable port configurations, and include features like EDID management and IP control—especially if you're setting up a commercial conferencing room or multi-display environment 1. For most professional installations, a 4x4 or 8x8 HDMI matrix switcher with remote access provides the best balance of flexibility and cost. If you need seamless integration with control systems, ensure compatibility with protocols like RS-232 or Ethernet. Avoid cheap consumer-grade units if reliability and signal integrity are critical.

About AV Matrix Video Switcher

An AV matrix video switcher is a device that allows multiple audio and video sources to be connected and routed to multiple displays or output devices. Unlike simple HDMI switches that only allow one output, matrix switchers provide full cross-point switching—meaning any input can be sent to any combination of outputs simultaneously. This makes them ideal for environments where dynamic content distribution is needed, such as conference centers, classrooms, broadcast studios, digital signage networks, and home theaters with multiple zones.

These devices typically support various signal types including HDMI, VGA, DisplayPort, and SDI, often with embedded audio or separate audio de-embedding capabilities. Modern AV matrix switchers also frequently include network-based control, IR pass-through, and support for high-resolution formats like 4K@60Hz HDR. Some advanced models integrate HDBaseT transmission for long-distance signal extension over Cat6 cables.

Why AV Matrix Video Switcher Is Gaining Popularity

The growing demand for flexible AV setups in both corporate and residential settings has driven increased adoption of AV matrix video switchers. As hybrid work models become standard, meeting rooms require seamless switching between laptops, wireless presentation systems, cameras, and streaming encoders—all routed to projectors, monitors, or video conferencing platforms.

In educational institutions, instructors may need to switch between Blu-ray players, document cameras, PCs, and student devices across several screens. Similarly, retail spaces use matrix switchers to manage promotional content across multiple displays from centralized media players. The ability to automate switching via control systems like Crestron or Extron further enhances their appeal.

Additionally, rising consumer expectations for high-quality visuals—including 4K resolution and low-latency performance—have made traditional switching solutions inadequate. AV matrix switchers meet these demands by maintaining signal fidelity while enabling complex routing scenarios 2.

Types and Variants

AV matrix video switchers come in several configurations based on port count, supported signal types, and transmission technology. Understanding these variants helps match the right model to your application.

HDMI Matrix Switchers

The most common type, HDMI matrix switchers handle digital audio/video signals up to 4K or even 8K. Available in sizes like 4x4, 8x8, or 16x16, they are widely used in homes and small businesses.

Pros: Plug-and-play setup, wide device compatibility, supports HDCP and HDR.
Cons: Limited cable length without extenders; higher port counts increase cost significantly.

HDBaseT Matrix Switchers

These use Cat6/7 cables to transmit HDMI, power, Ethernet, USB, and control signals up to 100 meters. Ideal for large installations where running multiple HDMI cables isn't feasible.

Pros: Long-distance transmission, reduced cabling complexity, centralized power delivery.
Cons: Requires compatible transmitters/receivers; slightly higher latency than direct HDMI.

Analog Matrix Switchers (VGA/Component)

Used primarily in legacy systems, these support older computers or equipment using VGA or component video.

Pros: Cost-effective for existing analog infrastructure.
Cons: Lower resolution support (typically max 1080i); being phased out in new builds.

Hybrid & IP-Based Matrix Switchers

Modern solutions encode AV signals into IP packets for transport over standard gigabit networks. These are highly scalable and suitable for enterprise deployments.

Pros: Virtually unlimited scalability, easy integration with IT networks, remote access from anywhere.
Cons: Higher initial cost; requires networking expertise for configuration.

Key Features and Specifications to Evaluate

Choosing the right AV matrix video switcher involves evaluating several technical and operational factors:

Input/Output Count: Match the number of sources and displays. Always consider future expansion—choose a switcher with at least two extra ports.
Signal Format Support: Ensure compatibility with all source devices (e.g., HDMI 2.0, HDCP 2.2, HDR10).
Resolution and Bandwidth: Look for minimum 18Gbps bandwidth for 4K@60Hz with HDR. Higher bandwidth ensures headroom for future-proofing.

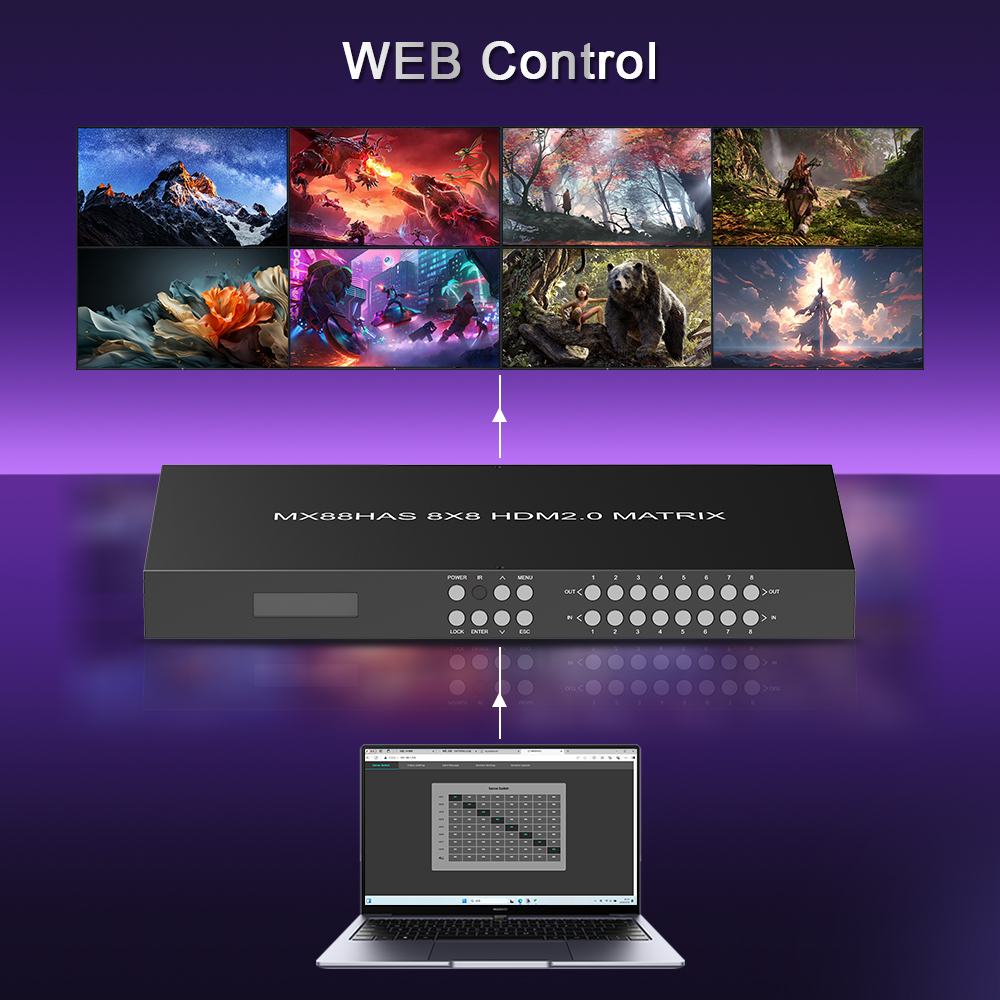

Control Options: Front panel buttons, IR remotes, web GUI, Telnet, API, or integration with control systems (Crestron, AMX).

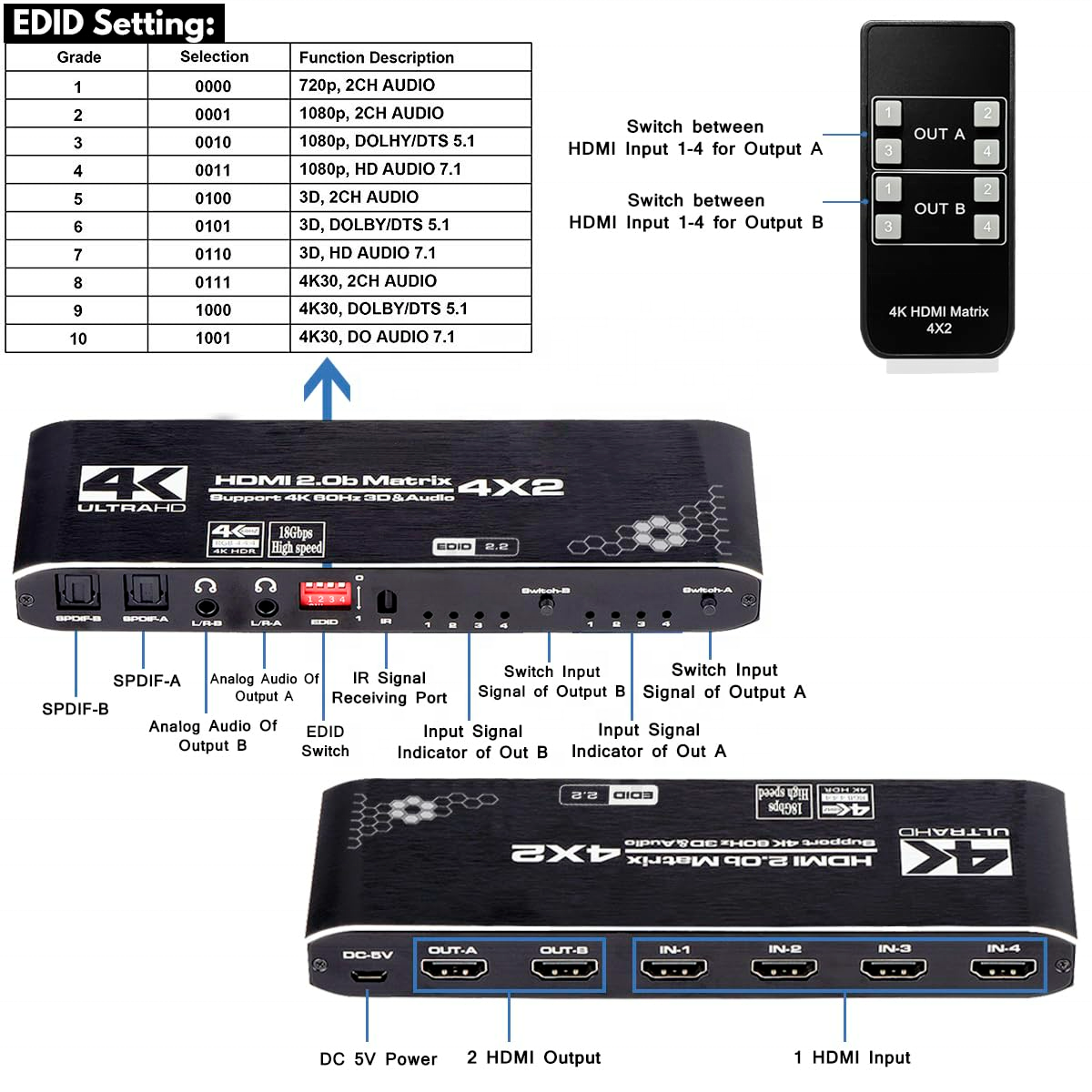

EDID Management: Critical for stable handshaking between sources and displays. Models with programmable EDID prevent black screens or resolution mismatches.
Audio Handling: Check for audio de-embedding (extracting audio from HDMI) or independent stereo routing.
Network Connectivity: Gigabit Ethernet enables remote management and firmware updates.
Power Supply: Rack-mountable units should have redundant power options in mission-critical applications.

Pros and Cons

Advantages:

Flexible routing: Any input to any output combination.
Centralized control: Simplifies operation in complex AV environments.
Scalability: Especially true for IP-based systems.
Support for modern standards: Including 4K, HDR, and HDCP compliance.

Disadvantages:

Cost: High-end models can exceed $2,000.
Complexity: Setup may require technical knowledge, particularly for networked systems.
Latency: Some compression-based IP switchers introduce slight delays unsuitable for real-time monitoring.
Compatibility risks: Not all sources work perfectly without proper EDID handling.

Matrix switchers are ideal when managing multiple inputs and outputs dynamically. They’re less necessary in basic home theater setups with one display and few sources.

How to Choose an AV Matrix Video Switcher

Follow this step-by-step guide to make an informed decision:

Assess Your I/O Needs: List all current sources (laptops, cameras, media players) and displays. Add 20% extra capacity for growth.
Determine Signal Types: Are all devices HDMI? Do you need analog inputs or HDBaseT extension?
Evaluate Distance Requirements: If runs exceed 15 meters, consider HDBaseT or fiber optic solutions.
Check Control System Compatibility: Will it integrate with your automation platform (e.g., Control4, Savant)? Verify protocol support (RS-232, TCP/IP).
Review EDID Handling: Opt for models with EDID learning or emulation to avoid handshake issues.
Test for Low Latency: Critical for live events or gaming applications—look for frame delays under 1 frame.
Verify Warranty & Support: Reputable brands offer 3-year warranties and accessible technical assistance.
Avoid Red Flags: No firmware update path, unclear specifications, missing HDCP licensing, or poor user reviews about reliability.

Price & Market Insights

Pricing varies widely based on functionality and scale:

Entry-level (4x4 HDMI): $150–$300. Suitable for small offices or homes.
Mid-range (8x8 with IP control): $500–$1,200. Common in conference rooms and lecture halls.
Premium (16x16+ with HDBaseT/IP): $1,500–$5,000+. Used in broadcast facilities and enterprise campuses.

Value is best measured by total cost of ownership—not just purchase price. Consider ease of installation, durability, and upgrade potential. Brands like Kramer, Atlona, and Extron tend to command premium prices due to robust build quality and enterprise support, while budget brands like UGREEN or J-Tech Digital offer functional alternatives for non-critical uses.

Model	Ports	Signal Type	Control	Price Range
Kramer VS-88HDLA	8x8	HDMI 2.0 + HDBaseT	Web, RS-232	$1,800
Atlona AT-UHD-MTX-88	8x8	HDMI 2.0	IP, API, PoE	$1,600
J-Tech Digital 4x4 Pro	4x4	HDMI 2.0	IR, App	$280
Magewell Ultra Stream Encoder	1xN (IP)	HDMI to IP	Web, API	$500

Customer Feedback Synthesis

Analysis of verified buyer reviews reveals consistent patterns:

Common Praises:

Reliable switching without signal drops (especially in Kramer and Atlona units).
User-friendly apps or web interfaces for remote control.
Solid metal enclosures and rack-mount designs.
Effective EDID management preventing boot-up issues.

Frequent Complaints:

Budget models failing after 6–12 months of regular use.
Limited customer support from lesser-known brands.
Confusing menu systems or outdated firmware with no update mechanism.
Inconsistent 4K HDR performance across different source devices.

Many users emphasize the importance of reading detailed specs rather than relying on marketing claims—particularly regarding HDCP compliance and actual bandwidth limits.

Sourcing & Supplier Tips

Purchase from authorized distributors or reputable AV integrators to ensure genuine products and valid warranties. Online retailers like B&H Photo, Adorama, or Fullcompass offer reliable fulfillment and return policies.

For bulk purchases or reseller programs, contact manufacturers directly for volume pricing and white-label opportunities. Always request demo units before large deployments to test interoperability with your specific gear.

When receiving shipments, inspect packaging for tampering and verify serial numbers against manufacturer databases if possible. Test all ports upon arrival to catch defects early under warranty terms.

Maintenance, Safety & Legal Considerations

Ensure adequate ventilation around the unit to prevent overheating, especially in enclosed racks. Clean air filters regularly if present. Use surge protectors or UPS systems to guard against power fluctuations.

Comply with local electrical codes when installing permanent units. In commercial settings, confirm that installed equipment meets fire safety standards (e.g., UL listing in the U.S.).

Be aware of copyright laws when routing protected content—ensure your system adheres to HDCP requirements to legally transmit encrypted signals. Unauthorized stripping or redistribution of DRM-protected content may violate digital rights regulations.

Conclusion

Selecting the right AV matrix video switcher requires balancing performance, scalability, and budget. For most professional applications, a well-built 8x8 HDMI or HDBaseT model from a trusted brand offers optimal value. Prioritize features like EDID management, network control, and HDCP compliance to ensure smooth operation. While entry-level options exist for simpler needs, mission-critical environments benefit from enterprise-grade hardware with proven reliability. By following a structured evaluation process and consulting real-world feedback, buyers can confidently choose a solution that meets both current and future AV distribution demands.

FAQs

What is the difference between a video switcher and a matrix switcher?
A standard video switcher routes one output from multiple inputs (e.g., 4-to-1). An AV matrix switcher allows any input to go to any output—or multiple outputs—at once (e.g., 4x4), offering far greater flexibility.

Can I control an AV matrix switcher over Wi-Fi?
Yes, many modern models support Ethernet and can be accessed via Wi-Fi routers using web browsers or mobile apps, provided they are on the same local network.

Do AV matrix switchers support 4K HDR?
High-quality models supporting HDMI 2.0 or higher with 18Gbps bandwidth do support 4K@60Hz and HDR10. Always verify specifications, as not all switchers labeled “4K” handle HDR properly.

Why does my display show no signal after connecting a matrix switcher?
This is often due to EDID negotiation failure. Try using EDID emulation mode, reboot all devices in order (switcher first), or consult the manual for reset procedures.

Are there wireless AV matrix switchers?
True wireless matrix switching is limited, but some systems use IP-based encoding to stream video over Wi-Fi networks. However, wired connections remain more reliable for high-bandwidth content.
