How to Choose Autoclave Composites: A Complete Buyer's Guide

When selecting autoclave composites for high-performance applications, the best choice depends on your specific requirements for strength, temperature resistance, and production volume. For most industrial users seeking durable, aerospace-grade materials, carbon fiber-reinforced polymer (CFRP) systems cured under precise autoclave conditions offer superior mechanical properties and consistency 1. Key factors like resin type, fiber orientation, vacuum bagging compatibility, and cure cycle parameters must align with your manufacturing process. Understanding how to choose autoclave composites ensures optimal performance in demanding environments such as aerospace, defense, or motorsports.

About Autoclave Composites

Autoclave composites refer to advanced composite materials—typically layered combinations of reinforcing fibers (like carbon, glass, or aramid) and thermosetting resins—that are cured under controlled heat and pressure inside an autoclave. This environment enables full consolidation of layers, minimizes void content, and maximizes mechanical strength and dimensional stability.

These materials are commonly used in industries where performance is critical. The aerospace sector relies heavily on autoclave-cured laminates for primary and secondary aircraft structures due to their predictable fatigue life and damage tolerance. Similarly, Formula 1 teams, satellite manufacturers, and high-end medical device producers use autoclave composites when failure is not an option.

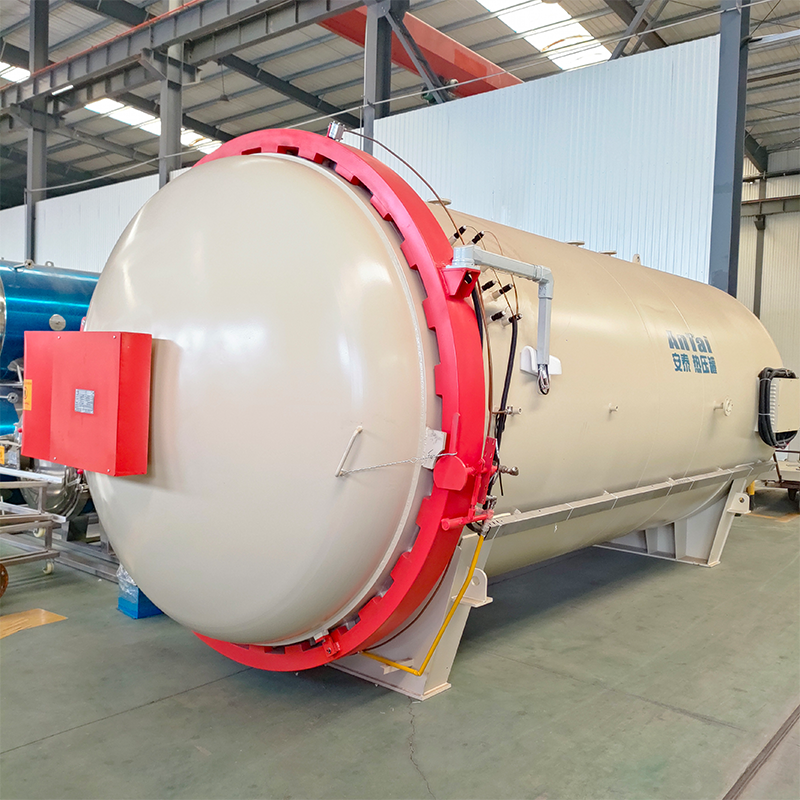

The curing process involves placing a pre-impregnated ('prepreg') layup into a vacuum-sealed bag, then loading it into the autoclave. Here, temperatures typically range from 120°C to 180°C (250°F–350°F), with pressures between 50–100 psi applied using compressed air or inert gas. This combination drives out entrapped air and volatiles while ensuring complete resin flow and cross-linking.

Why Autoclave Composites Are Gaining Popularity

In recent years, demand for autoclave composites has grown significantly beyond traditional aerospace markets. One major driver is the push for lightweighting across transportation sectors. Electric vehicles, drones, and next-generation rail systems benefit from reduced mass without sacrificing structural integrity—a key advantage of autoclave-processed parts.

Additionally, advancements in digital simulation tools allow engineers to model composite behavior more accurately before physical prototyping. This reduces trial-and-error waste and increases confidence in using autoclave composites for complex geometries. According to industry reports, the global market for advanced composites is projected to exceed $100 billion by 2030, fueled largely by adoption in renewable energy (e.g., wind turbine blades) and urban air mobility platforms 2.

Another reason for rising interest is improved accessibility. While once limited to large OEMs with in-house autoclaves, smaller fabricators now access shared facilities or contract manufacturing services. This democratization allows startups and R&D labs to explore what to look for in autoclave composites without massive capital investment.

Types and Variants

Not all autoclave composites are created equal. Selection should be based on reinforcement fiber, matrix resin, form factor, and intended service environment.

Carbon Fiber-Reinforced Polymers (CFRP)

Pros: High stiffness-to-weight ratio, excellent fatigue resistance, low thermal expansion.
Cons: Higher cost than alternatives, electrically conductive (can interfere with electronics), brittle under impact if not properly designed.

Ideal for aerospace wings, UAV fuselages, and racing components where weight savings directly affect efficiency.

Glass Fiber-Reinforced Polymers (GFRP)

Pros: Lower cost, good tensile strength, electrical insulation properties.
Cons: Heavier than carbon fiber, lower stiffness, prone to microcracking over time.

Commonly used in marine hulls, enclosures, and non-critical structural panels where budget constraints exist.

Aramid Fiber (e.g., Kevlar®)

Pros: Exceptional impact and abrasion resistance, good vibration damping.
Cons: Absorbs moisture easily, degrades under UV exposure, difficult to cut and drill cleanly.

Frequently found in ballistic protection, helicopter rotor blades, and crash-resistant zones.

Hybrid Laminates

Pros: Combines benefits of multiple fibers (e.g., carbon + glass for balanced cost/performance).
Cons: Risk of galvanic corrosion between dissimilar materials, requires careful stacking sequence design.

Useful in applications needing localized reinforcement or transition zones between stiff and flexible sections.

Key Features and Specifications to Evaluate

To make an informed decision about how to choose autoclave composites, evaluate these technical parameters:

Fiber Areal Weight (FAW): Measured in g/m², this affects thickness and strength. Higher FAW means thicker plies but longer processing times.
Resin Content: Typically ranges from 30% to 40%. Too much resin increases weight and risk of cracking; too little compromises interlaminar shear strength.
Cure Cycle Requirements: Check manufacturer data sheets for required time-at-temperature, ramp rates, and hold pressures. Mismatched cycles lead to incomplete curing or residual stress.
Tg (Glass Transition Temperature): Indicates maximum continuous service temperature. Exceeding Tg causes softening and loss of load-bearing capacity.
Voids & Porosity: Acceptable levels are usually below 2%. High-quality prepregs processed correctly yield less than 1% porosity.
Out-Time & Shelf Life: Prepregs degrade at room temperature. Most require frozen storage (-18°C) and have limited out-time (e.g., 30 days at 23°C). Verify logistics capabilities before purchase.

Pros and Cons

Advantages:

Premium mechanical performance and repeatability
Low defect rates when processed correctly
Suitable for safety-critical and flight-certified components
Wide range of customizable layup options

Disadvantages:

High initial material and processing costs
Requires specialized equipment (autoclave, vacuum systems)
Long lead times for tooling and curing cycles
Sensitive to environmental conditions during layup

Autoclave composites are ideal for projects requiring certification, long-term durability, or extreme operating conditions. They may be overkill for prototypes, short-run educational models, or consumer DIY builds where hand lay-up or oven curing suffices.

How to Choose Autoclave Composites

Follow this step-by-step guide to ensure you select the right material:

Define Application Requirements: Determine load types (tensile, compressive, shear), temperature range, exposure to chemicals or UV, and lifecycle expectations.
Select Fiber Type: Use carbon fiber for maximum strength-to-weight; glass for cost-sensitive builds; aramid for impact zones.
Choose Resin System: Epoxy offers best overall performance; phenolic provides fire resistance; bismaleimide (BMI) suits high-Tg needs.
Verify Compatibility with Your Process: Confirm that the prepreg’s recommended cure schedule matches your autoclave’s capabilities. Don’t assume interchangeability between brands.
Assess Supply Chain Reliability: Order samples first. Evaluate packaging integrity, labeling clarity, and batch traceability.
Review Documentation: Ensure datasheets include full ASTM test results (e.g., ILSS, flexural strength, CTE).
Beware of Red Flags: Avoid suppliers who don’t provide Material Safety Data Sheets (MSDS), lack ISO certification, or refuse batch-specific testing reports.

Price & Market Insights

Pricing varies widely depending on material type and volume. As of 2024:

Standard aerospace-grade CFRP prepreg: $80–$150 per square meter
High-Tg or specialty formulations (e.g., BMI): $180–$300/m²
GFRP prepreg: $40–$70/m²
Kevlar-based systems: $100–$200/m²

Economies of scale apply—bulk purchases (over 500 m²) often reduce unit price by 15–25%. However, minimum order quantities may limit access for small shops. Consider joining buyer cooperatives or using contract manufacturers who consolidate orders.

Value isn't just in upfront cost. Factor in scrap rate reduction, rework frequency, and certification readiness. A slightly more expensive prepreg with tighter quality control can save thousands in rejected parts.

Material Type	Avg. Cost (per m²)	Tg Range (°C)	Typical Use Case
CFRP (Epoxy)	$90–$140	120–180	Aircraft structures
CFRP (BMI)	$200–$280	230–260	Engine nacelles, hot zones
GFRP	$45–$65	100–130	Marine decks, covers
Aramid/Epoxy	$110–$190	120–150	Impact-resistant panels

Customer Feedback Synthesis

Analysis of user reviews and industry forums reveals consistent themes:

Positive Feedback:

“Excellent consistency across batches—critical for FAA compliance.”
“Achieved 0.8% void content with proper debulking and vacuum integrity.”
“Technical support helped optimize our cure cycle for thicker laminates.”

Common Complaints:

“Short out-life caused delays when shipping was delayed.”
“No batch-specific certificates provided—rejected during audit.”
“Moisture ingress observed after improper storage—even with sealed packaging.”

Users emphasize the importance of working with reputable vendors who prioritize documentation, cold-chain logistics, and responsive engineering support.

Sourcing & Supplier Tips

When sourcing autoclave composites:

Purchase from authorized distributors or directly from manufacturers like Hexcel, Solvay, or Toray.
Request Certificates of Conformance (CoC) and batch test data for every shipment.
For international orders, confirm Incoterms (e.g., DDP vs EXW) to avoid unexpected tariffs or handling fees.
If buying in bulk, negotiate extended shelf life or consignment inventory agreements.
Inspect deliveries immediately: check for ice crystals (indicating thawing), damaged rolls, or expired dates.

For startups or academic institutions, consider partnering with certified composite repair stations or university-affiliated labs that offer shared autoclave access.

Maintenance, Safety & Legal Considerations

Handling prepregs requires precautions:

Always wear nitrile gloves and work in well-ventilated areas—even uncured resins emit low-level VOCs.
Store materials at -18°C (0°F) in dedicated freezers; log temperature daily.
Dispose of trimmings and release films according to local hazardous waste regulations.
Train personnel in vacuum bagging techniques and emergency shutdown procedures for autoclaves.

From a regulatory standpoint, parts used in aviation must comply with standards such as NADCAP AC7108 for nondestructive testing and AS9100 for quality management. Always verify whether your end-use application requires third-party certification.

Conclusion

Choosing the right autoclave composites involves balancing performance needs, process compatibility, and supply chain reliability. Carbon fiber-reinforced epoxy systems remain the top choice for high-stress, lightweight applications, especially in aerospace and motorsports. By evaluating fiber type, resin characteristics, cure requirements, and vendor credibility, buyers can avoid costly mistakes and ensure part integrity. Whether you're producing certified flight components or developing prototypes, understanding what to look for in autoclave composites empowers smarter, safer decisions.

FAQs

What does 'out-time' mean for autoclave composites?
Out-time refers to the maximum duration prepreg can remain outside frozen storage before curing begins. Most epoxy-based systems allow 30 days at 23°C, but always consult the manufacturer’s data sheet.

Can I reuse partially cured prepreg?
No. Once a prepreg has begun curing or exceeded its out-time, its chemical properties change irreversibly. Using degraded material risks delamination and structural failure.

Do I need an autoclave to work with these materials?
While some prepregs are formulated for oven-only curing, true autoclave composites require simultaneous heat and pressure to achieve optimal consolidation and low void content.

How do I verify the quality of a composite layup?
Non-destructive testing methods like ultrasonic scanning or X-ray radiography detect internal flaws. For critical parts, follow industry-standard inspection protocols such as those in ASTM E2580.

Are there eco-friendly options for autoclave composites?
Some manufacturers now offer bio-based epoxies or recyclable prepreg systems, though availability is limited. Research programs are exploring closed-loop recycling for carbon fiber, but widespread commercial solutions are still emerging.
