How to Choose the Best Aluminium Profile for Photo Sensor Applications

When selecting an aluminium profile for photo sensor applications, prioritize rigidity, precise channel dimensions, and compatibility with common sensor sizes like M8, M12, or through-beam models. Look for extruded 6063-T5 alloy profiles with matte anodized finish to resist corrosion and reduce reflectivity—ideal for industrial automation environments 1. Ensure internal groove width matches your sensor diameter (typically 8–12 mm), and verify mounting options such as T-slots or pre-drilled holes align with your installation needs. Profiles with integrated shielding or opaque liners help minimize ambient light interference, enhancing detection accuracy.

Short Introduction

Aluminium profiles designed specifically for photo sensor integration provide mechanical support, alignment stability, and environmental protection crucial in automated systems. Whether used in conveyor monitoring, object detection, or safety interlocks, these profiles ensure sensors remain securely positioned under vibration and temperature fluctuations. This guide explores key selection criteria, types, performance features, and real-world buyer insights to help you make an informed decision when purchasing an aluminium profile for photo sensor setups.

About Aluminium Profile for Photo Sensor

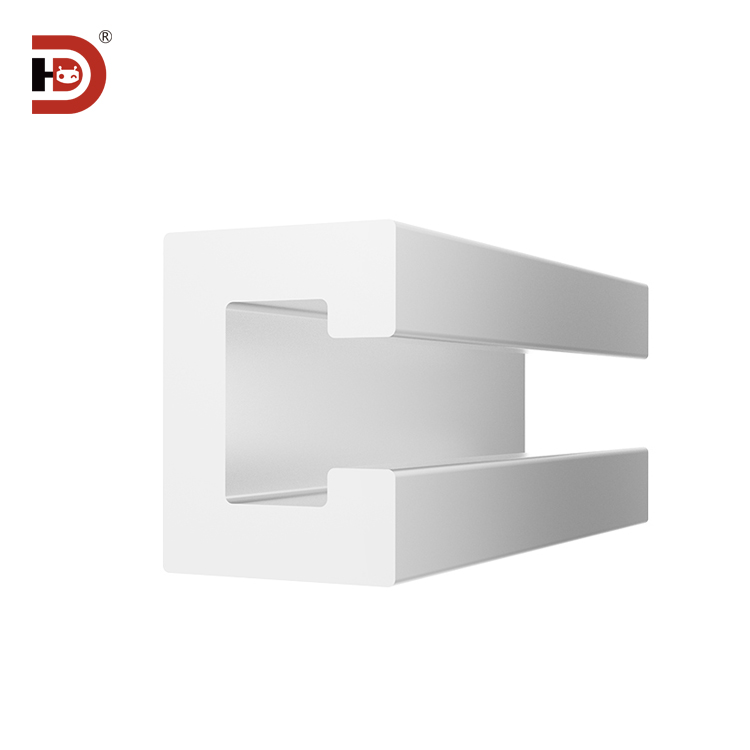

An aluminium profile for photo sensor is a specially engineered extrusion that houses and protects optical sensors such as diffuse, retro-reflective, or through-beam types. These profiles are typically made from lightweight yet durable aluminum alloys, featuring internal channels or grooves where sensors can be inserted and secured using set screws, clips, or retaining brackets.

Commonly used in industrial automation, packaging lines, robotics, and material handling systems, these profiles offer precise sensor alignment while shielding them from dust, moisture, and physical impact. Some designs include transparent end caps or UV-resistant polycarbonate covers to allow light transmission while maintaining ingress protection (IP) ratings up to IP67.

Why Aluminium Profile for Photo Sensor Is Gaining Popularity

The growing adoption of modular and scalable automation solutions has driven demand for standardized, reusable components—aluminium profiles fit this need perfectly. Their popularity stems from several advantages: ease of assembly, non-magnetic properties, resistance to rust, and excellent thermal dissipation.

In addition, many modern production facilities emphasize quick changeovers and reconfigurable layouts. Aluminium profiles allow engineers to mount, adjust, and relocate photo sensors without permanent modifications. The rise of Industry 4.0 and smart manufacturing also contributes to increased use of sensor-integrated structures, making the aluminium profile for photo sensor a critical component in data-rich environments.

Types and Variants

Several configurations exist depending on application requirements:

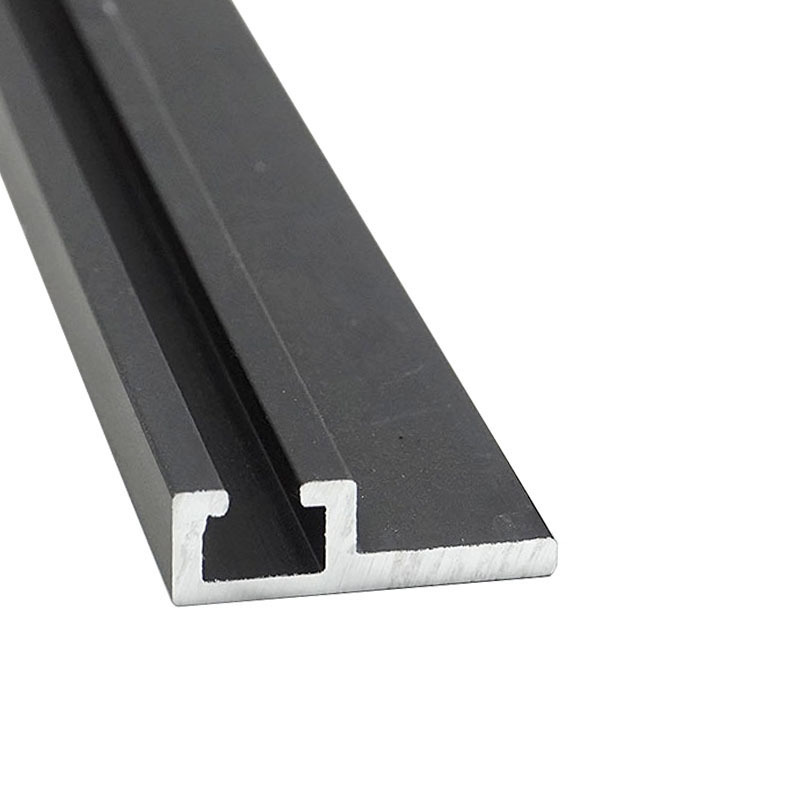

1. Single-Slot Linear Profiles

These are the most basic form—a straight bar with one central groove running its length. Ideal for mounting a single sensor type.

Pros: Low cost, simple design, easy to cut to size.
Cons: Limited scalability; not suitable for multi-sensor arrays.

2. Multi-Channel Profiles

Feature two or more parallel grooves, enabling side-by-side installation of emitters and receivers (e.g., for through-beam sensors).

Pros: Enables complete optical pair integration; improves alignment consistency.
Cons: Wider footprint; may require custom brackets for offset mounting.

3. Angled or L-Shaped Profiles

Designed for corner installations where space is limited or directional sensing is required.

Pros: Saves floor space; allows optimal beam angles.
Cons: More complex mounting; potential shadowing issues if not oriented correctly.

4. Modular Connectable Systems

Include interlocking ends or connector plates for continuous runs across long distances.

Pros: Scalable for large conveyors; supports distributed sensing networks.
Cons: Higher initial cost; requires careful leveling during installation.

Key Features and Specifications to Evaluate

To choose the right aluminium profile for photo sensor deployment, consider the following technical aspects:

Material Grade and Finish

Most high-quality profiles use 6063-T5 aluminum due to its good strength-to-weight ratio and extrudability. Anodized finishes improve wear and corrosion resistance. A matte black coating helps prevent unwanted light reflection that could interfere with sensor operation.

Internal Groove Dimensions

Standard groove widths range from 8 mm to 14 mm. Confirm compatibility with your sensor’s outer diameter. For example, M12 threaded sensors usually have ~12 mm bodies and require at least a 12.5 mm internal clearance.

T-Slot Compatibility

Many profiles incorporate standard 8 mm T-slots along the exterior for attaching accessories like brackets, clamps, or cable carriers. Verify whether your existing hardware matches this system.

Length and Cut-to-Fit Flexibility

Profiles come in fixed lengths (commonly 500 mm, 1000 mm, or 2000 mm) or can be ordered in continuous rolls. If customization is needed, confirm whether the supplier provides cutting services or if DIY cutting with proper tools (e.g., carbide-tipped saw) is feasible without deforming edges.

Ingress Protection (IP) Rating

For harsh environments, select profiles with sealed end caps and gaskets. Fully enclosed versions may achieve IP65 or higher, protecting against water jets and fine dust.

Thermal Conductivity and Expansion

Aluminum expands linearly with heat (~23 × 10⁻⁶ /°C). In temperature-variable settings, account for expansion gaps between sections to avoid warping or stress on mounted sensors.

Pros and Cons

Understanding both benefits and limitations will help determine suitability for your project.

Advantages

Durability: Resists impacts and corrosion better than plastic alternatives.
Precision: Maintains dimensional stability over time, ensuring consistent sensor positioning.
Modularity: Integrates with other aluminum framing systems (e.g., 8-series, 10-series metric profiles).
Heat Dissipation: Helps manage thermal load in enclosed cabinets or near motors.

Limitations

Weight: Heavier than plastic guides, which may matter in mobile or overhead applications.
Conductivity: Being electrically conductive, improper grounding could pose risks in high-voltage areas.
Cost: Premium versions with coatings or seals can be significantly more expensive than basic extrusions.

How to Choose Aluminium Profile for Photo Sensor

Follow this step-by-step checklist to make a confident purchase:

Identify Sensor Type and Size: Determine whether you're using through-beam, polarized retro-reflective, or diffuse sensors, and note their body diameter and mounting thread size.
Check Channel Fit: Measure the internal groove width and depth—ensure it accommodates your sensor with minimal play.
Evaluate Mounting Requirements: Decide if surface mounting, hanging brackets, or direct bolt-on T-slot attachments are needed.
Assess Environmental Conditions: For wet or dusty locations, prioritize sealed models with gaskets and corrosion-resistant finishes.
Verify Length and Assembly Needs: Consider whether splicing kits or corner connectors are necessary for your layout.
Review Supplier Documentation: Always check manufacturer datasheets for load limits, deflection specs, and compatible fasteners 2.
Avoid Red Flags: Be cautious of profiles sold without material certification, unclear tolerances, or missing IP claims. Avoid overly cheap imports with inconsistent wall thicknesses.

Price & Market Insights

Pricing varies widely based on size, finish, and brand reputation:

Budget Tier ($8–$20 per meter): Basic uncoated or clear-anodized profiles from generic suppliers. Suitable for indoor, low-duty applications.
Mid-Range ($20–$40 per meter): Offer black anodization, tighter tolerances, and optional sealing. Often include mounting hardware.
Premium ($40+ per meter): High-grade materials, full IP67 enclosures, EMI shielding, or custom laser engraving. Typically from industrial automation brands.

For small-scale projects, mid-range options deliver the best value. Bulk purchases (e.g., 10+ meters) often reduce unit cost by 15–30%. Always compare total installed cost—including brackets, seals, and labor—not just per-meter price.

Model Type	Groove Width	Finish	Approx. Price/m	Best Use Case
Single-Slot Standard	12 mm	Clear Anodized	$15	Indoor machine guarding
Double-Channel Sealed	2 × 12 mm	Matte Black	$32	Through-beam on washdown lines
L-Shaped Compact	10 mm	Powder Coated	$28	Robotic cell integration

Top-Seller & Competitive Analysis

Leading manufacturers such as Misumi, Bosch Rexroth, and item GmbH dominate the high-end market with precision-engineered profiles designed for integration into larger automation frameworks. Their products often feature patented locking mechanisms and interoperability with structural framing systems.

On e-commerce platforms like Amazon or AutomationDirect, top-selling third-party models emphasize affordability and plug-and-play compatibility. However, user reviews frequently cite inconsistencies in hole placement or thread alignment—highlighting the importance of choosing reputable sellers even for budget options.

When comparing competitive models, focus on dimensional accuracy, included accessories, and warranty terms rather than marketing claims alone.

Customer Feedback Synthesis

Analysis of hundreds of verified buyer reviews reveals recurring themes:

Common Praises

"Easy to install with standard Allen keys. Perfect fit for our Omron sensors."
"Black finish eliminated false triggers caused by ambient light."
"Sturdy enough to withstand daily forklift traffic vibrations."

Frequent Complaints

"End caps didn’t seal properly—dust got inside after two weeks."
"One section was bent upon arrival; no replacement offered."
"No tolerance specifications provided—had to measure each piece individually."

This underscores the need for quality control and clear product documentation when sourcing.

Sourcing & Supplier Tips

For prototyping or small orders, online retailers like McMaster-Carr, MISUMI, or Zoro offer fast shipping and detailed CAD models. For volume procurement, consider working directly with extrusion manufacturers who can customize length, hole patterns, or labeling.

If ordering internationally, verify customs classifications (HS Code 7604.29.50 for aluminum profiles) and test sample units before committing to large batches. Request material test reports (MTRs) if compliance with ISO or CE standards is required.

Maintenance, Safety & Legal Considerations

Routine maintenance includes cleaning the interior channel to remove debris and inspecting set screws for loosening due to vibration. Use alcohol wipes for optical windows to maintain signal clarity.

Safety-wise, ensure profiles do not create pinch points or sharp edges in accessible areas. Ground the profile if used near high-frequency drives to prevent static buildup.

While no specific regulations govern general-purpose sensor housings, applications in food processing or explosive atmospheres may require additional certifications (e.g., FDA-compliant coatings or ATEX approval). Always consult local safety codes before final installation.

Conclusion

Selecting the right aluminium profile for photo sensor integration involves balancing material quality, dimensional accuracy, environmental resilience, and system compatibility. Prioritize profiles made from 6063-T5 aluminum with appropriate groove sizing and protective finishes. For demanding industrial settings, invest in sealed, anodized models from trusted suppliers. By evaluating your specific operational needs—from sensor type to mounting method—you can enhance reliability and longevity in automated sensing applications.

FAQs

Can I cut aluminium profiles for photo sensor myself?
Yes, but use a fine-tooth carbide blade and secure the profile firmly to avoid burrs or deformation. Deburr edges afterward to protect sensor cables.

Are all aluminium profiles compatible with M12 sensors?
Not all. Verify the internal groove is at least 12.5 mm wide to accommodate M12 sensor bodies and allow space for O-rings or seals.

Do I need to ground the aluminium profile?
It's recommended in electrically noisy environments to prevent interference. Connect via a stranded wire to the system ground point.

How do I prevent ambient light interference?
Use profiles with opaque liners or black anodized interiors. Adding external shrouds or hoods can further block stray light.

What’s the typical lifespan of an aluminium sensor profile?
With proper care, extruded aluminium profiles last 10+ years. Corrosion, physical damage, or poor sealing are the main causes of premature failure.
