How to Choose the Best Air Conditioner Fan Motor: A Complete Buying Guide

When selecting a replacement or upgrade for your air conditioning system, knowing how to choose the right air conditioner fan motor is crucial for efficiency, longevity, and cooling performance. The best air conditioner fan motor for your needs depends on compatibility with your HVAC unit, motor type (such as PSC vs. ECM), horsepower rating, speed control features, and energy efficiency. For most homeowners replacing a failed motor, matching the original specifications—voltage, RPM, shaft size, and mounting dimensions—is essential to ensure proper fit and function 1. Upgrading to an electronically commutated motor (ECM) can improve airflow consistency and reduce energy consumption by up to 30%, making it a smart long-term investment for compatible systems.

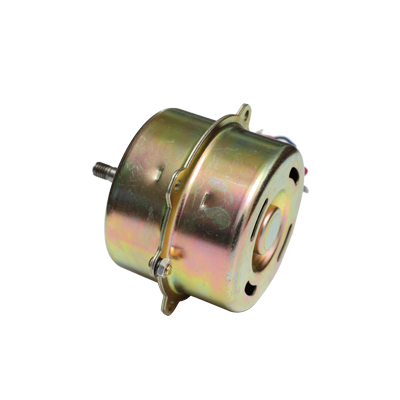

About Air Conditioner Fan Motor

An air conditioner fan motor is a critical component of HVAC (heating, ventilation, and air conditioning) systems responsible for driving the blower fan that circulates cooled or heated air throughout a building. Located inside the indoor air handler or furnace unit, this motor turns the blower wheel, pulling air across the evaporator coil during cooling mode and distributing conditioned air via ductwork. Without a functioning fan motor, even a perfectly charged refrigerant system cannot deliver comfort.

These motors are commonly found in residential split-system AC units, packaged units, heat pumps, and central forced-air heating systems. They differ from condenser fan motors, which are located outdoors and cool the refrigerant in the condensing unit. While both are vital, the indoor air handler’s fan motor has a more direct impact on airflow volume, indoor air quality, noise levels, and overall system efficiency.

Why Air Conditioner Fan Motor Is Gaining Popularity

As homeowners become more aware of HVAC efficiency and indoor air quality, demand for high-performance air conditioner fan motors has grown significantly. Aging HVAC systems often suffer from degraded motor performance, leading to higher electricity bills, inconsistent cooling, and increased wear on compressors. Replacing outdated permanent split capacitor (PSC) motors with modern ECM models offers measurable improvements in energy use and comfort.

Additionally, rising temperatures due to climate change have increased reliance on air conditioning, especially in regions not historically dependent on cooling. This surge in usage puts added stress on existing motors, accelerating failure rates and driving replacement demand. Smart thermostats and zoning systems also benefit from variable-speed fan motors, enabling precise airflow management and better integration with advanced controls.

Energy efficiency regulations, such as those set by the U.S. Department of Energy, continue to push manufacturers toward more efficient components. As newer HVAC systems come equipped with ECM motors as standard, consumers are increasingly seeking similar upgrades for older units to match performance and savings 2.

Types and Variants

Understanding the different types of air conditioner fan motors is essential when evaluating replacements or upgrades. Each type varies in efficiency, cost, control capabilities, and application suitability.

Permanent Split Capacitor (PSC) Motors

PSC motors are the most common type in older HVAC systems. They operate at a single speed or use crude tap-based speed selection, offering limited control over airflow.

Pros: Low initial cost, simple design, widely available.
Cons: Lower efficiency (~50–60%), constant power draw regardless of load, prone to overheating, noisy operation at full speed.

Best suited for budget-conscious repairs where system compatibility limits upgrade options.

Electronically Commutated Motors (ECM)

ECMs are brushless DC motors that use electronic controllers to vary speed based on demand. These are now standard in high-efficiency HVAC systems.

Pros: Up to 30% more energy-efficient than PSC, quieter operation, self-regulating speed, improved dehumidification through longer run cycles.
Cons: Higher upfront cost, requires compatible control board, potential complexity in troubleshooting.

Ideal for homeowners looking to reduce utility bills and enhance comfort, especially when paired with programmable or smart thermostats.

Variable-Speed Motors

A subset of ECM technology, variable-speed motors offer fine-tuned airflow adjustments across a wide RPM range. They adapt dynamically to temperature changes, filter conditions, and outdoor weather.

Pros: Maximum efficiency, superior humidity control, near-silent operation at low speeds, enhanced air filtration due to longer runtime.
Cons: Most expensive option, typically only available in premium HVAC models.

Recommended for homes with allergy concerns, multi-story layouts, or extreme climate zones requiring consistent indoor conditions.

Key Features and Specifications to Evaluate

To make an informed decision, evaluate these technical and functional characteristics before purchasing an air conditioner fan motor:

Voltage Rating: Match the motor voltage (typically 115V or 230V) to your system’s electrical supply. Using the wrong voltage can cause immediate failure.
Horsepower (HP): Ensure the new motor meets or slightly exceeds the original HP rating to maintain designed airflow without overloading circuits.
RPM (Revolutions Per Minute): Critical for maintaining correct static pressure and CFM output. Common speeds include 800, 1075, and 1375 RPM; verify compatibility with your blower assembly.
Shaft Diameter and Length: Must align precisely with the blower wheel coupling. Mismatches prevent installation or cause vibration and imbalance.

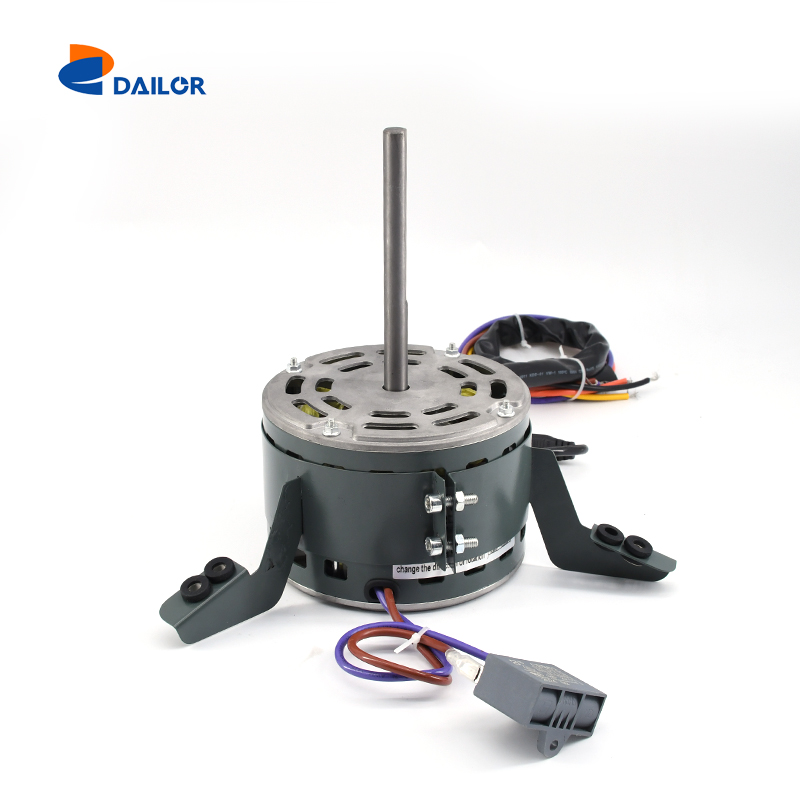

Mounting Configuration: Check whether the motor uses a strap mount, bolt-through flange, or other bracket style. Measure spacing and orientation carefully.
Capacitor Requirements: Some motors include built-in capacitors; others require external ones. Verify if your system already has one or needs replacement.
Thermal Protection: Look for motors with internal overload protectors to prevent burnout during overheating events.
Efficiency Rating: Compare total efficiency (TE), with ECMs typically exceeding 70%, while PSC motors lag behind.

Always refer to your HVAC unit’s model number and consult manufacturer specifications before finalizing a purchase. Cross-referencing part numbers using OEM catalogs or distributor databases improves accuracy.

Pros and Cons

Choosing the right air conditioner fan motor involves balancing performance, cost, and system compatibility.

Advantages of Upgrading:

Improved energy efficiency reduces monthly utility costs.
Better airflow control enhances comfort and humidity management.
Quieter operation increases livability, especially in open-concept homes.
Extended equipment life due to reduced strain on the compressor and ductwork.

Limitations and Risks:

High-efficiency motors may not be compatible with older thermostats or control boards.
Incorrect installation can lead to premature failure or safety hazards.
ECM motors are sensitive to voltage fluctuations and poor grounding.
Higher initial cost may not be justified in short-term ownership scenarios.

Replacement is ideal when the existing motor fails, shows signs of burning smell, excessive noise, or inconsistent airflow. Avoid upgrading solely for novelty unless energy savings justify the investment.

How to Choose Air Conditioner Fan Motor

Follow this step-by-step guide to select the correct and optimal air conditioner fan motor:

Identify Your Current Motor: Remove the access panel and locate the label on the existing motor. Record voltage, HP, RPM, rotation direction, shaft size, and model number.
Determine Compatibility: Confirm whether your HVAC control board supports ECM or variable-speed motors. Older systems may require firmware updates or relay kits.
Decide Between PSC and ECM: If minimizing upfront cost is key, stick with PSC. For long-term savings and comfort, consider ECM despite higher price.
Select Correct Physical Dimensions: Measure mounting holes, shaft length, and clearance space within the air handler cabinet.

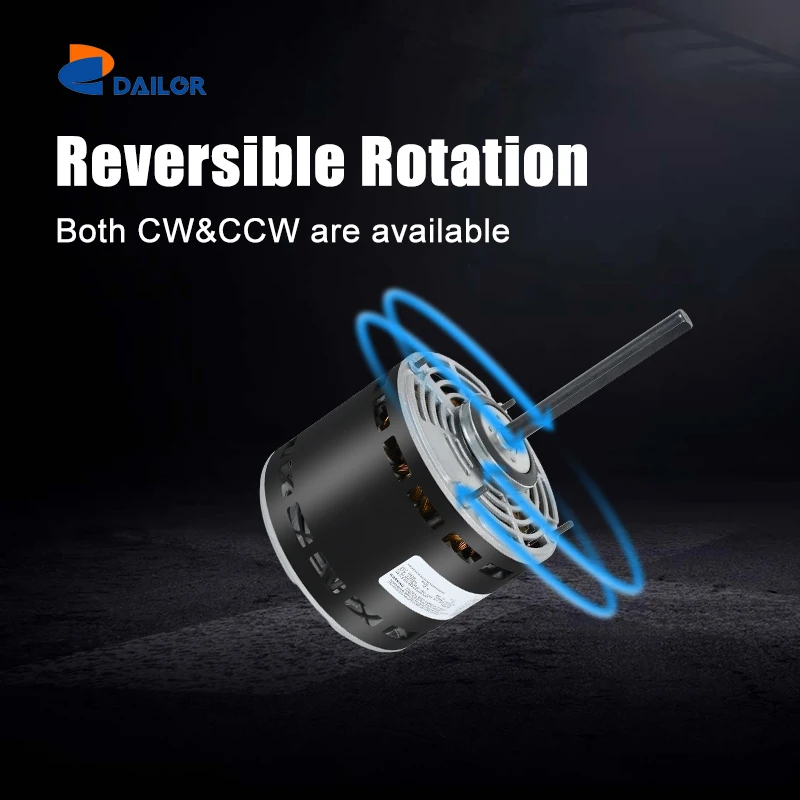

Check Rotation Direction: Motors are labeled clockwise (CW), counterclockwise (CCW), or reversible. Match exactly to avoid reversed airflow.
Verify Capacitor Needs: Determine if a start/run capacitor is integrated or must be purchased separately.
Review Warranty Terms: Look for motors with minimum 1-year warranty; some ECMs offer 5–10 years.
Avoid Generic 'Universal' Claims: Be cautious of motors marketed as “fits all” — true compatibility requires exact specification matching.

Red flags include missing certification marks (UL, ETL), lack of technical documentation, or sellers unable to provide spec sheets. Always buy from reputable suppliers or HVAC parts specialists.

Price & Market Insights

Pricing varies widely based on motor type, brand, and features:

PSC Motors: $80–$180. Suitable for basic replacements in older systems.
ECM Motors: $250–$500. Offer significant energy savings and are increasingly standard in mid-to-high-end systems.
Variable-Speed Motors: $400–$800+. Found in premium HVAC units with advanced climate control.

Aftermarket brands like GE, Emerson, and ACM Motors offer reliable alternatives to OEM parts at lower prices. However, ensure they meet NEMA standards and carry safety certifications. Labor for professional installation typically adds $150–$300, depending on accessibility and wiring complexity.

For DIYers, confirm local electrical codes allow homeowner repairs. In many areas, working on HVAC electrical components requires licensing.

Motor Type	Avg. Price Range	Energy Efficiency	Lifespan	Best Use Case
PSC	$80–$180	Low (50–60%)	5–8 years	Budget replacement
ECM	$250–$500	High (70%+)	10–15 years	Efficiency upgrade
Variable-Speed	$400–$800	Very High	12–18 years	Premium comfort

Top-Seller & Competitive Analysis

Leading brands in the air conditioner fan motor market include:

Emerson (now Regal Rexnord): Known for reliability and broad compatibility, their Integra™ and QuietCool™ series are popular among technicians.
ACM Motors: Offers drop-in ECM replacements for Carrier, Trane, and Bryant systems, simplifying upgrades.
GE: Provides affordable PSC options widely used in service replacements.
Century (A.O. Smith): Manufactures both PSC and ECM motors with strong distribution networks.

Top-selling models often feature plug-and-play connectors, thermal protection, and clear labeling. When comparing products, prioritize verified compatibility over price alone. Read product descriptions thoroughly and cross-check with OEM part numbers.

Customer Feedback Synthesis

Analysis of hundreds of customer reviews reveals consistent patterns in satisfaction and dissatisfaction:

Common Praises:

“The ECM motor cut my AC bill by almost 25%.”
“Easy to install with included instructions and matched my old dimensions perfectly.”
“Much quieter than the original motor — I barely hear the system running now.”

Frequent Complaints:

“Motor didn’t fit as advertised — shaft was too short.”
“Burned out after three months — possibly due to incorrect voltage setting.”
“No technical support available when I had wiring questions.”

Issues often stem from inaccurate product listings, mismatched specifications, or improper installation rather than inherent defects. Buyers who double-checked dimensions and consulted HVAC professionals reported far higher success rates.

Sourcing & Supplier Tips

Purchase motors from trusted sources such as HVAC-specific distributors (e.g., SupplyHouse.com, SearsPartsDirect, HVACDirect), authorized dealers, or directly from manufacturer websites. Avoid third-party marketplaces unless the seller provides detailed specs, return policies, and contact information.

For contractors or bulk buyers, consider establishing accounts with wholesale suppliers for discounted pricing and faster shipping. Always request spec sheets and verify UL/ETL certification before procurement.

If ordering internationally, ensure the motor complies with North American voltage standards (60 Hz, 115/230V) and includes necessary agency approvals. Customs delays and lack of warranty support can offset cost savings.

Maintenance, Safety & Legal Considerations

Proper maintenance extends motor life and prevents failures:

Clean blower wheels annually to reduce load on the motor.
Replace air filters every 1–3 months to maintain unrestricted airflow.
Inspect motor mounts and belts (if applicable) for wear or misalignment.
Listen for unusual noises (grinding, squealing) indicating bearing failure.

Safety precautions include disconnecting power at the breaker before servicing, using insulated tools, and wearing protective gear. Never bypass thermal overload protectors.

Legally, modifications to HVAC systems must comply with local building and electrical codes. In some jurisdictions, only licensed HVAC technicians can replace certain components. Check municipal regulations before proceeding with DIY repairs.

Conclusion

Selecting the right air conditioner fan motor requires careful attention to specifications, system compatibility, and long-term goals. For straightforward replacements, matching the original PSC motor ensures reliability and cost-effectiveness. However, upgrading to an ECM or variable-speed motor can yield substantial energy savings, quieter operation, and improved indoor comfort — especially in frequently used or large homes. Always verify physical dimensions, electrical requirements, and control compatibility before purchase. By following a structured evaluation process and sourcing from reputable suppliers, homeowners and technicians alike can ensure a successful motor replacement that enhances HVAC performance for years to come.

FAQs

Q: How do I know if my air conditioner fan motor is failing?
A: Signs include weak airflow, strange noises (grinding, humming), intermittent operation, burning smells, or the motor not starting at all.

Q: Can I replace a PSC motor with an ECM motor?
A: Yes, in many cases — but only if your HVAC control board supports ECM signals. You may need a conversion kit or professional assessment.

Q: What size air conditioner fan motor do I need?
A: Match the horsepower, voltage, RPM, shaft size, and mounting style of the original motor. Refer to the unit’s manual or motor label for exact specs.

Q: Are universal air conditioner fan motors reliable?
A: Some are well-engineered and compatible, but others may lack precision fit. Always verify specifications and read verified buyer reviews before trusting a 'universal' claim.

Q: How long does an air conditioner fan motor last?
A: PSC motors typically last 5–8 years; ECM motors can last 10–15 years with proper maintenance and clean airflow.
