How to Choose the Best 6mm LED L Profile for Your Project

When selecting a 6mm LED L profile for under-cabinet lighting, cove installations, or edge protection, prioritize aluminum construction with a polycarbonate diffuser for durability and even light distribution. The ideal choice—such as an anodized aluminum 6mm LED L strip channel with frosted cover—ensures heat dissipation, protects LEDs, and creates a smooth glare-free glow 1. Avoid plastic profiles for permanent installs; instead, match the profile length and mounting method to your layout. This guide covers everything from types and specs to sourcing and safety to help you choose the right 6mm LED L profile.

About 6mm LED L Profile

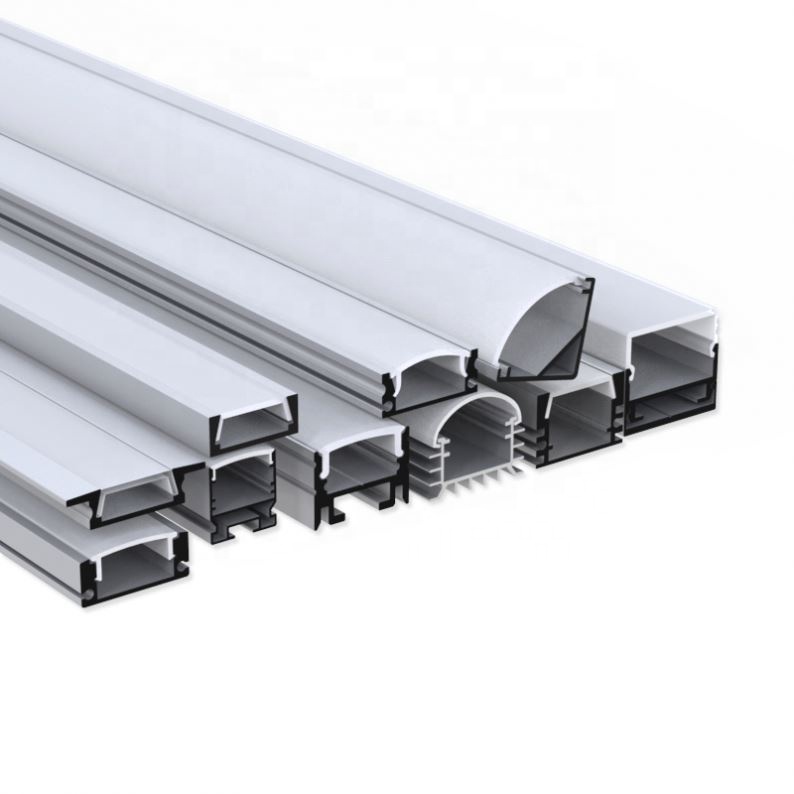

A 6mm LED L profile, also known as an LED strip channel or aluminum extrusion, is a linear housing designed to hold and protect flexible LED strips. Its 'L' shape refers to the cross-sectional geometry: one vertical wall and one horizontal base, forming a right angle. The 6mm dimension typically describes the height of the vertical side, which aligns with standard LED tape widths (usually 8–10mm), allowing the strip to sit flush inside.

These profiles are commonly used in both residential and commercial settings. Typical applications include under-cabinet kitchen lighting, where the profile mounts beneath cabinets and directs light downward onto countertops. They're also widely used in cove lighting along ceilings, stair edges, shelves, and display units. Beyond aesthetics, the L profile serves functional purposes: it protects delicate LED circuitry from dust, moisture, and physical damage while improving thermal management when made from aluminum.

The profile usually comes with a removable diffuser—clear, milky white, or frosted—that softens the light output and hides individual diodes for a continuous line of illumination. Some models include mounting clips or adhesive backing for easy installation. While primarily associated with RGB or warm white LED tapes, the 6mm L profile is compatible with any strip that fits its internal dimensions.

Why 6mm LED L Profile Is Gaining Popularity

The growing popularity of the 6mm LED L profile stems from the rise of DIY home lighting projects and demand for sleek, modern aesthetics. Consumers increasingly prefer integrated lighting solutions that appear built-in rather than exposed wires and visible LEDs. The L profile delivers a clean, professional finish often seen in high-end interiors.

Another driver is energy efficiency. As more people switch to LED lighting for cost and environmental reasons, proper housing becomes essential to maximize lifespan. LEDs generate heat, and without adequate dissipation, performance degrades over time. Aluminum-based 6mm LED L profiles act as heatsinks, prolonging LED life 2.

Architectural trends favor minimalist designs with indirect lighting. Cove and valance lighting using L profiles create ambient effects without bulky fixtures. Additionally, modular systems allow users to customize lengths and connect multiple runs, making them adaptable for various room sizes and configurations.

Types and Variants

Several variations of the 6mm LED L profile exist, differing by material, diffuser type, finish, and mounting method. Understanding these helps match the product to your project needs.

1. Material: Aluminum vs. Plastic

Aluminum: Offers superior heat dissipation, rigidity, and longevity. Ideal for permanent installations and high-output LED strips. More expensive but recommended for optimal performance.
Plastic (Polycarbonate/PVC): Lightweight and lower cost. Suitable for temporary setups or low-heat applications. However, poor thermal conductivity may shorten LED lifespan under continuous use.

2. Diffuser Types

Frosted/Milky White: Provides the most uniform diffusion, eliminating hotspots and creating a smooth glow. Best for general ambient lighting.
Clear: Allows maximum brightness and color accuracy but may reveal individual LED dots. Used when visual effect is less critical.
Opal: A middle ground—softer than clear but brighter than frosted. Good for task lighting where some diffusion is desired.

3. Surface Finish

Anodized Aluminum: Resists corrosion and offers a refined look. Available in silver, black, or brushed finishes to match décor.
Bare Aluminum: Functional but prone to oxidation over time unless sealed.

4. Mounting Options

Adhesive-Backed: Comes with pre-applied tape for quick attachment. Convenient but less durable on uneven or porous surfaces.
Screw-Mounted: Uses brackets or direct screws for secure, long-term installation. Requires drilling but ensures stability.
Magnetic: Less common in 6mm profiles but available in specialized versions for easy repositioning.

Key Features and Specifications to Evaluate

To make an informed decision when choosing a 6mm LED L profile, assess the following technical and practical factors:

Internal Dimensions: Confirm the inner width and depth accommodate your LED strip (typically 10mm wide x 2–3mm thick). Measure your strip before purchasing.
Length: Profiles come in fixed lengths (e.g., 1m, 2m) or can be cut-to-size. For large projects, consider bulk ordering or joining connectors.
Thermal Conductivity: If using high-lumen LEDs (>12W/m), aluminum is strongly preferred. Check if the manufacturer specifies thermal resistance.
IP Rating: For damp locations (bathrooms, outdoors), select a version with an IP65 or higher rating, which requires silicone gaskets and sealed ends.
Cutability: Most aluminum profiles can be cut with a hacksaw or miter saw. Ensure end caps are available to seal cut edges.
Compatibility: Verify compatibility with your LED controller and power supply, especially if dimming or color-changing features are involved.

Pros and Cons

Advantages

Protects LED strips from mechanical and environmental damage
Improves heat dissipation, extending LED lifespan
Creates a professional, seamless lighting appearance
Available in customizable lengths and finishes
Easy to install with proper tools and planning

Disadvantages

Additional cost compared to bare LED strips
Installation requires precision—misalignment affects aesthetics
Plastic variants offer limited durability and heat management
May require painting or finishing to blend with surroundings
Not all profiles support waterproofing without modifications

The 6mm LED L profile is best suited for indoor accent lighting, under-cabinet setups, and architectural detailing. It’s less ideal for high-vibration environments or outdoor exposure unless specifically rated for such conditions.

How to Choose 6mm LED L Profile

Follow this step-by-step guide to ensure you select the right 6mm LED L profile:

Determine Application: Is it for kitchen lighting, cove mounting, or edge protection? Indoor vs. outdoor use dictates material and IP rating needs.
Measure LED Strip Size: Use calipers or a ruler to confirm width and thickness. Standard SMD5050 strips are ~10mm wide—ensure the profile interior allows space for wiring.
Select Material: Choose aluminum for permanent, high-performance installations. Reserve plastic for temporary or decorative uses.
Pick Diffuser Type: Opt for frosted if uniform light is key; clear if brightness matters more than diffusion.
Check Mounting Method: Adhesive works on smooth, clean surfaces. For heavy-duty or ceiling applications, use screw-mounted brackets.
Verify Length Requirements: Calculate total linear footage needed. Add 10% extra for cuts and mistakes.
Inspect End Caps and Connectors: Ensure matching end caps (closed or cable-pass-through) and corner joints are available.
Avoid products with vague specifications, missing IP ratings, or no manufacturer contact info—these may indicate low quality.

Price & Market Insights

Pricing for 6mm LED L profiles varies significantly based on material, length, and brand. On average:

Plastic profiles: $1–$3 per meter
Basic aluminum profiles: $4–$7 per meter
Premium aluminum (anodized, frosted diffuser): $8–$12 per meter

Higher prices often reflect better build quality, smoother finishes, and included accessories like clips and end caps. Bulk purchases (5m+) typically reduce per-unit cost by 15–25%. Be cautious of extremely low-priced aluminum profiles—some may use thin-walled extrusions or inferior alloys.

Value is maximized when the profile matches the LED strip's performance. Pairing a $20/meter LED tape with a $2/meter plastic channel undermines return on investment. Aim for balanced spending across components.

Model Type	Material	Diffuser	Price/m	Best For
Basic L6-ALU	Aluminum	Clear	$5.20	Garage, utility areas
L6-FROST	Anodized Al	Frosted	$9.80	Kitchen, living rooms
L6-PLASTIC	PVC	Opal	$2.40	Temporary displays

Top-Seller & Competitive Analysis

Leading brands such as Hyperikon, LampLight Direct, and ULTRALIGHT offer reliable 6mm LED L profiles. Top-selling models generally feature anodized aluminum bodies, frosted diffusers, and include mounting clips. Common differentiators include ease of cutting, availability of accessories, and customer support responsiveness.

When comparing options, note whether kits include end caps, clips, and screws. Some vendors charge extra for these essentials. Also, check return policies—reputable sellers allow returns within 30 days if the profile doesn’t fit.

Customer Feedback Synthesis

Analysis of verified buyer reviews reveals consistent themes:

Positive Feedback:
– Appreciation for clean, professional results
– Praise for easy installation with included hardware
– Satisfaction with improved LED lifespan after installation
– Positive remarks about frosted diffusers eliminating pixelation

Common Complaints:
– Poorly fitting diffusers that rattle or pop out
– Missing end caps or clips in shipments
– Inconsistent lengths or burrs inside aluminum channels
– Adhesive failure on certain surfaces (tile, wood)

Buyers recommend inspecting received items immediately and testing one section before full installation.

Sourcing & Supplier Tips

For individual buyers, Amazon, Home Depot, and specialty LED retailers like LEDSupply offer convenient access. Look for sellers with detailed product images, dimensional drawings, and responsive customer service.

For contractors or resellers, Alibaba and ThomasNet provide bulk ordering options. When sourcing in volume:

Request samples before placing large orders
Confirm minimum order quantities (MOQs)
Negotiate pricing for 50+ meter purchases
Verify lead times and shipping costs

Always inspect received goods for warping, scratches, or inconsistent extrusion. Test-fit the LED strip and diffuser on-site before committing to full deployment.

Maintenance, Safety & Legal Considerations

Maintain your 6mm LED L profile by periodically cleaning the diffuser with a soft cloth and mild detergent. Avoid abrasive cleaners that can scratch polycarbonate surfaces. Inspect seals annually if used in humid environments.

Safety-wise, ensure all electrical connections are insulated and comply with local wiring codes. Do not overload the LED strip beyond the profile’s heat dissipation capacity. While the profile itself is non-electrical, improper installation near flammable materials poses risks.

No specific legal certifications apply to the profile alone, but if part of a finished luminaire, compliance with UL 1598 or IEC 60598 may be required depending on jurisdiction. Always follow national electrical code guidelines (e.g., NEC Article 410 in the U.S.) for permanent installations.

Conclusion

Choosing the right 6mm LED L profile involves balancing material quality, diffuser type, and installation requirements. Aluminum profiles with frosted covers offer the best combination of durability and visual appeal for most indoor applications. Assess your project’s environment, LED specifications, and aesthetic goals before purchasing. By focusing on precise measurements, reputable suppliers, and proper mounting techniques, you can achieve a professional-grade lighting solution that enhances both function and design.

FAQs

Can I cut a 6mm LED L profile to size?
Yes, most aluminum and rigid plastic profiles can be cut using a fine-tooth saw. Always file sharp edges and use appropriate end caps afterward.

Are 6mm LED L profiles waterproof?
Standard versions are not. For wet locations, choose IP65-rated profiles with silicone gaskets and sealed end caps.

Do LED profiles reduce brightness?
Diffusers typically reduce output by 10–15%, depending on type. Frosted covers have slightly higher light loss than clear ones.

How do I attach two L profiles in a corner?
Use internal or external corner connectors, or miter-cut both pieces at 45° for a seamless joint.

Can I paint the aluminum profile?
Yes, but use high-temperature, metal-compatible paint. Sand and prime first for better adhesion.
