How to Choose the Best 500ml Plastic Bottle Mould for Your Production Needs

When selecting a 500ml plastic bottle mould for high-volume manufacturing, prioritize durability, precision engineering, and compatibility with your injection or blow molding machine. The ideal choice often depends on your production scale, resin type (such as PET or HDPE), and desired cycle time. For most industrial applications, a multi-cavity cold runner 500ml plastic bottle mould made from hardened steel offers the best balance of longevity and cost-efficiency over time 1. Avoid molds with poor venting or inconsistent wall thickness control, as these lead to defects and increased waste.

About 500ml Plastic Bottle Mould

A 500ml plastic bottle mould is a precision-engineered tool used in the mass production of plastic bottles with a standard capacity of 500 milliliters. These molds are primarily used in injection molding or stretch blow molding processes to shape molten thermoplastic materials—most commonly polyethylene terephthalate (PET), high-density polyethylene (HDPE), or polypropylene (PP)—into consistent, repeatable bottle forms.

These molds are essential in industries such as bottled water, soft drinks, edible oils, pharmaceuticals, personal care products, and household chemicals. The design typically includes cavities that define the bottle's external shape, internal core rods for wall thickness control, cooling channels for rapid solidification, and ejection systems to release finished bottles without damage.

Because 500ml is one of the most common bottle sizes globally, standardized molds for this volume are widely available, but customization options exist for unique neck finishes, grip textures, label panels, or ergonomic shapes tailored to branding needs.

Why 500ml Plastic Bottle Mould Is Gaining Popularity

The demand for reliable 500ml plastic bottle moulds has surged due to several market and operational trends. First, consumer preference for single-serve packaging continues to grow, especially in beverages and health-related liquids. The 500ml size strikes an optimal balance between portability and utility, making it ideal for on-the-go consumption.

Additionally, advancements in mold technology have reduced cycle times and improved energy efficiency. Modern molds can produce thousands of defect-free bottles per hour, lowering unit costs significantly. Automation integration—such as robotic arm handling and inline quality inspection—further enhances productivity when paired with well-designed 500ml bottle molds.

Environmental concerns have also driven innovation. Many manufacturers now seek molds compatible with recycled PET (rPET) resins, requiring tighter tolerances and better thermal management to maintain structural integrity during high-speed production 2.

Types and Variants

Not all 500ml plastic bottle moulds are created equal. They vary by process type, cavity count, material, and cooling method. Understanding these differences helps match the right mold to your production goals.

1. Injection vs. Blow Molding Moulds

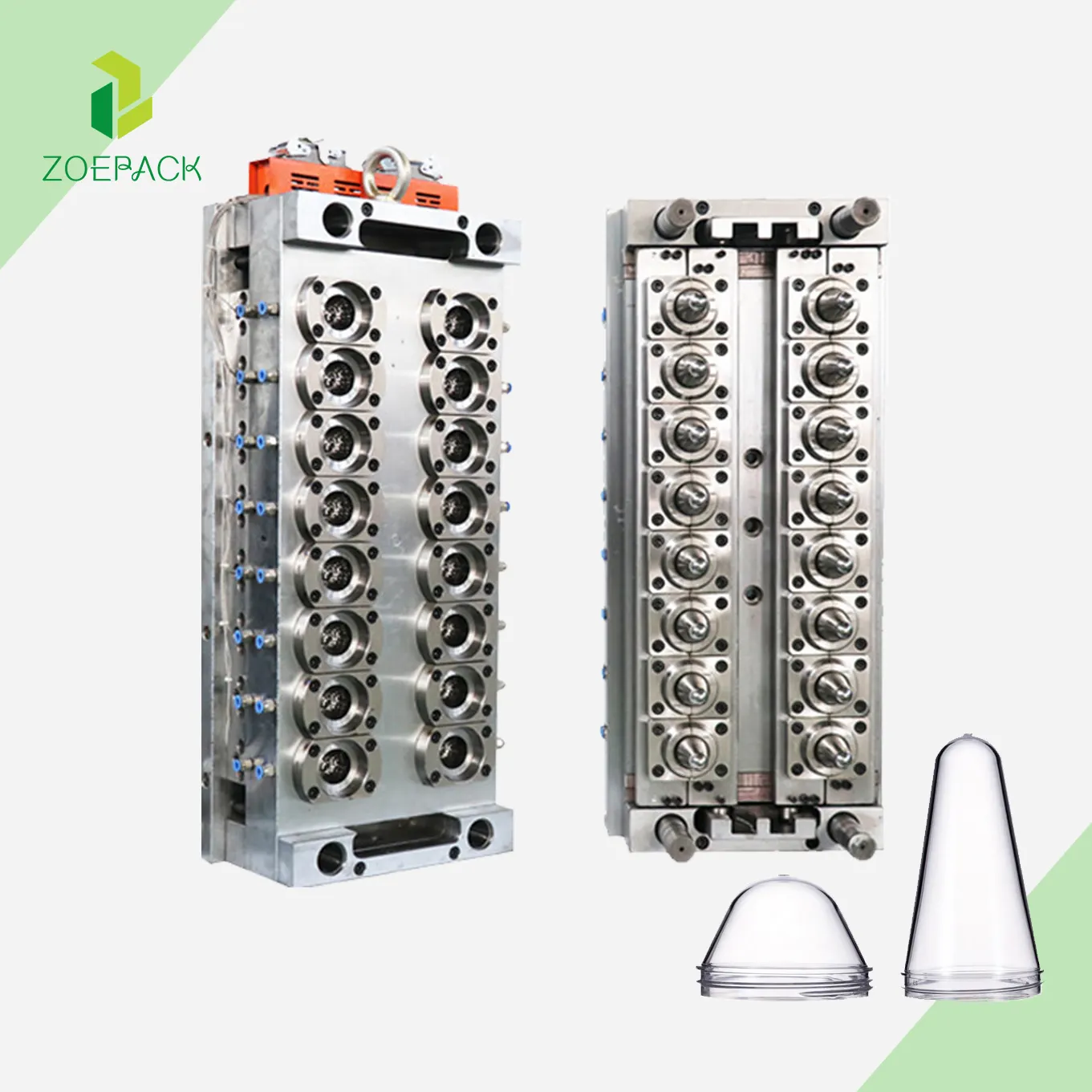

Injection Moulds: Used to create preforms (test-tube-like blanks) that are later reheated and blown into final bottles. These are highly precise and support complex neck details. Best suited for large-scale operations using stretch blow molding lines.

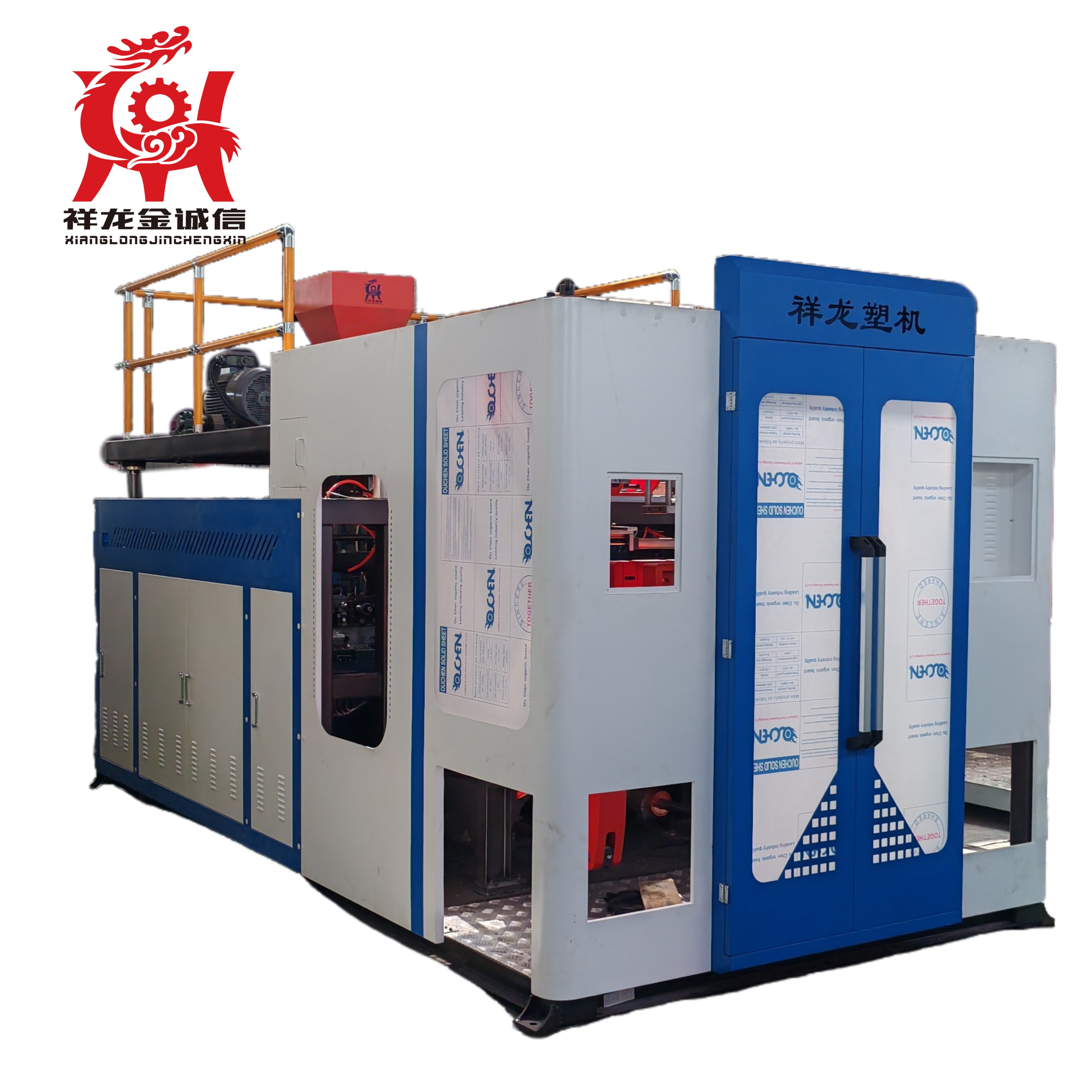

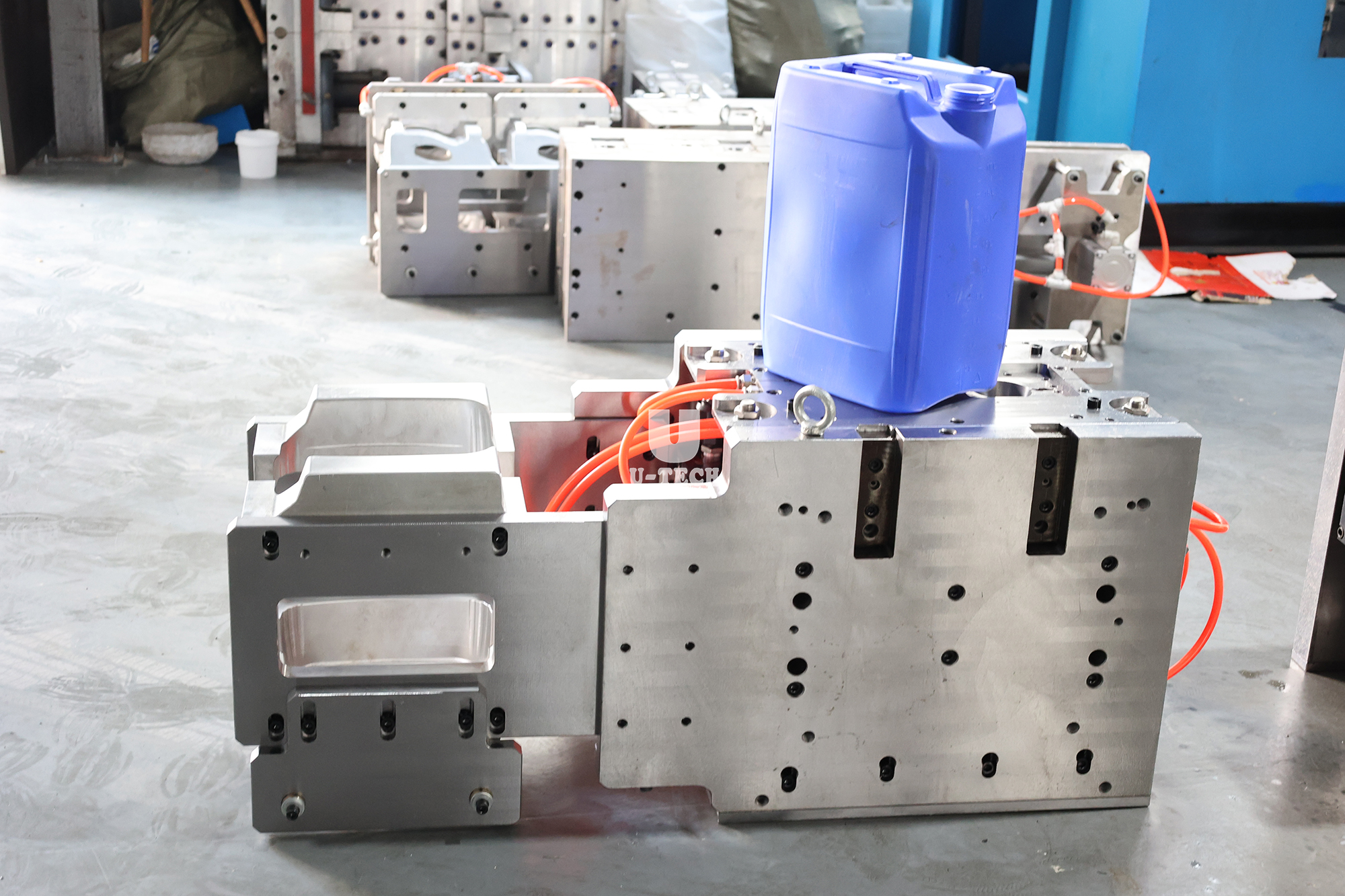

Blow Moulds: Directly form bottles from parisons (extruded tubes). More common in extrusion blow molding setups. Less expensive initially but may offer lower dimensional accuracy than injection systems.

2. Single-Cavity vs. Multi-Cavity Moulds

Single-Cavity: Produces one bottle per cycle. Ideal for prototyping, small batches, or custom designs. Lower upfront cost but inefficient for high output.

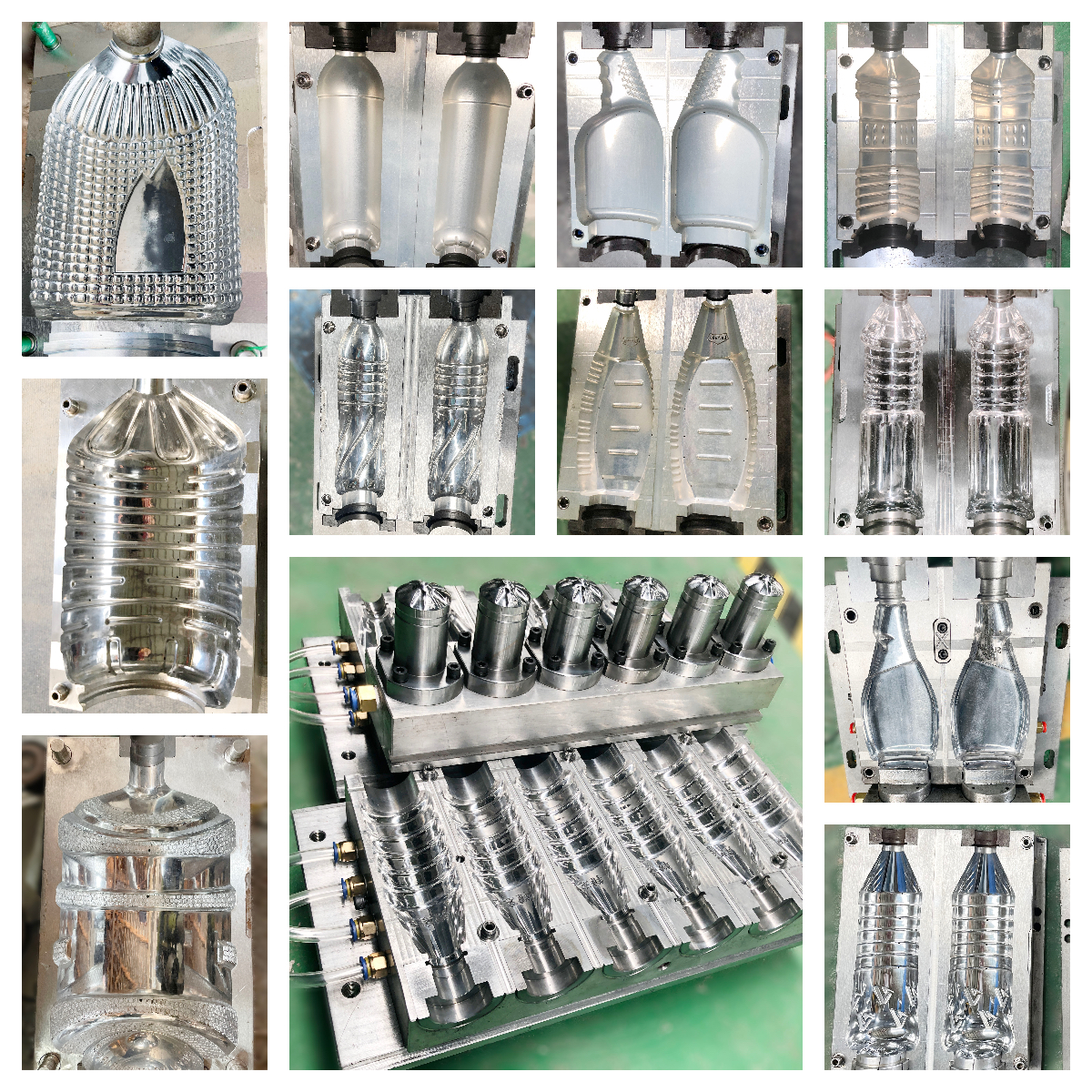

Multi-Cavity (4–32+ cavities): Significantly increases throughput. Preferred for commercial bottling. Higher initial investment but superior ROI at scale.

3. Hot Runner vs. Cold Runner Systems

Cold Runner: Simpler, less expensive. Generates more sprue waste, which must be reground or recycled.
Hot Runner: Keeps material molten in delivery channels, reducing waste and cycle time. Requires advanced temperature control but improves efficiency in continuous runs.

4. Material Construction: Aluminum vs. Steel

Aluminum Moulds: Lighter, faster to cool, and cheaper. Suitable for short runs or testing. Less durable under abrasive resins or long-term use.
Hardened Steel (e.g., P20, H13): Resists wear and corrosion. Supports millions of cycles. Recommended for full-scale production despite higher cost.

Key Features and Specifications to Evaluate

Selecting the right 500ml plastic bottle mould requires evaluating several technical parameters:

Cavity Count: Match to your hourly output requirement. A 16-cavity mold running at 15 seconds per cycle produces about 3,840 bottles/hour.
Wall Thickness Uniformity: Look for molds with balanced cooling and gas-assist compatibility to prevent sagging or thin spots.
Cooling Channel Design: Efficient layout reduces cycle time. Baffles or bubblers improve heat extraction in thick sections.
Venting: Adequate micro-vents (typically 0.01–0.03mm deep) prevent air traps and burn marks.
Surface Finish: High-gloss finishes reduce sticking and enhance clarity in transparent bottles. Textured finishes aid labeling or grip.
Neck Ring Precision: Ensures proper sealing with caps. Misalignment causes leakage or capping issues downstream.
Compatibility: Confirm fit with your existing clamping unit, nozzle diameter, and tie-bar spacing.

Pros and Cons

Advantages of Using a Dedicated 500ml Plastic Bottle Mould

High repeatability and consistency across millions of units.
Scalable production with minimal labor input once optimized.
Supports both virgin and recycled plastics when designed correctly.
Customizable aesthetics (shape, texture, branding elements).

Limitations and Challenges

High initial tooling cost, especially for multi-cavity steel molds ($10,000–$50,000+).
Long lead times (4–12 weeks) for design, machining, and testing.
Limited flexibility; changing bottle design requires new mold investment.
Maintenance-intensive: requires regular cleaning, lubrication, and inspection for wear.

This makes dedicated molds ideal for stable, high-demand products but less suitable for startups experimenting with packaging formats.

How to Choose 500ml Plastic Bottle Mould

Follow this step-by-step guide to make an informed decision:

Define Your Production Volume: Below 10,000 units/month? Consider aluminum or single-cavity. Above 100,000? Invest in multi-cavity hardened steel.
Select the Right Process: Need preforms for carbonated drinks? Use injection molds. Making milk jugs? Extrusion blow molds may suffice.
Evaluate Mold Material: Prioritize P20 or H13 steel for durability unless doing short test runs.
Check Cooling Efficiency: Ask suppliers for thermal simulation reports or cycle time estimates.
Verify Compatibility: Provide machine specifications (clamping force, platen size, nozzle type) to the mold maker.
Review Ejection System: Pin-based ejection should avoid stress points on the bottle base or shoulder.
Request Sample Parts: Test actual bottles for weight variation, flash, and dimensional accuracy before full commitment.
Avoid Red Flags: Be cautious of vendors who don’t provide detailed drawings, lack certifications (ISO 9001), or refuse performance data.

Price & Market Insights

Pricing varies widely based on complexity and quality. Here’s a general breakdown:

Basic Aluminum Single-Cavity: $2,000–$6,000
Steel Multi-Cavity (8–16 cavities): $15,000–$35,000
High-End Hot Runner Systems: $40,000–$70,000+

Cost does not always correlate with value. Some mid-tier Chinese manufacturers offer durable steel molds at 30–50% below Western prices, though post-sale support may be limited. Always compare total cost of ownership—not just purchase price—factoring in expected lifespan, maintenance, and downtime risk.

Bargain molds under $1,500 often cut corners on steel grade or machining precision, leading to premature failure. For sustained operation, aim for molds rated for at least 500,000 cycles.

Model Type	Cavities	Material	Estimated Cycle Time	Price Range
Entry-Level Aluminum	1	Al6082	25 sec	$2,500–$5,000
Mid-Tier Steel (P20)	8	P20 Tool Steel	18 sec	$18,000–$25,000
Premium Hot Runner	16	H13 + Hot Manifold	14 sec	$45,000–$60,000

Top-Seller & Competitive Analysis

Leading suppliers like Haitian International, Yizumi, and Krones offer integrated molding solutions featuring high-efficiency 500ml bottle molds. However, many buyers source molds independently from specialized tool shops in China, India, or Turkey.

Top-selling models share common traits: modular design for easy repair, hardened cavity surfaces (nitrided or chrome-plated), and symmetrical cooling layouts. When comparing options, focus on measurable outcomes—cycle time, scrap rate, mean time between failures (MTBF)—rather than brand名气 alone.

Some premium molds include smart sensors for real-time temperature and pressure monitoring, enabling predictive maintenance. While useful, these add cost and complexity; assess whether your team can utilize the data effectively.

Customer Feedback Synthesis

Analysis of buyer reviews and industry forums reveals recurring themes:

Common Praises:

"The 16-cavity P20 mold reduced our cycle time by 30% compared to our old unit."
"Excellent surface finish—no need for secondary polishing."
"Supplier provided full CAD files and helped integrate with our existing line."

Frequent Complaints:

"Received mold with misaligned ejector pins causing bottle base cracks."
"Cooling was uneven; top bottles warped while bottom cooled too fast."
"No documentation or troubleshooting guide included."
"After 200,000 cycles, surface pitting appeared despite 'hardened' claim."

These highlight the importance of vetting suppliers thoroughly and insisting on quality assurance protocols.

Sourcing & Supplier Tips

Where you source your 500ml plastic bottle mould matters. Domestic suppliers offer faster service and easier communication but at higher prices. Overseas manufacturers (especially in China) dominate the global market due to competitive labor and machining costs.

To mitigate risks:

Request ISO 9001 certification or equivalent quality management proof.
Ask for references or case studies from past clients.
Use third-party inspection services (e.g., SGS, TÜV) before shipment.
Negotiate warranty terms (minimum 6 months against material defects).
Clarify intellectual property rights if using a custom design.

For startups or small brands, consider leasing molds or using contract manufacturers who already own tooling, reducing capital expenditure.

Maintenance, Safety & Legal Considerations

Proper maintenance extends mold life and ensures consistent output. Key practices include:

Regular cleaning with approved non-abrasive agents to remove resin buildup.
Lubricating moving parts (ejector pins, sliders) weekly or per manufacturer schedule.
Inspecting for corrosion, wear, or micro-cracks during planned downtime.
Storing molds in dry, temperature-controlled environments when idle.

Safety-wise, ensure molds comply with machine safety standards (e.g., CE marking in Europe) to prevent jamming or ejection hazards. Overheated molds can degrade plastic and release volatile organic compounds (VOCs), so proper ventilation is critical.

Legally, verify that your bottle design does not infringe on patented shapes or trademarks. In food and pharmaceutical applications, molds must meet FDA or EU Regulation 10/2011 compliance for indirect food contact materials 3.

Conclusion

Choosing the right 500ml plastic bottle mould involves balancing upfront cost, production speed, durability, and compatibility. For most medium-to-large scale operations, a multi-cavity steel mold with efficient cooling and proven cycle performance delivers the strongest return on investment. Avoid low-cost molds lacking documentation or quality controls, as they often result in higher long-term expenses due to downtime and defects. Prioritize suppliers who provide transparency, technical support, and verifiable performance data. By carefully assessing your needs and following a structured selection process, you can secure a reliable 500ml plastic bottle mould that supports efficient, scalable manufacturing for years.

FAQs

What is the average lifespan of a 500ml plastic bottle mould?
A well-maintained steel mold can last between 500,000 to over 1 million cycles, depending on resin type and operating conditions.

Can I use the same 500ml plastic bottle mould for different resins?
Yes, but only if the mold design accommodates varying shrink rates and processing temperatures. Always consult the mold maker before switching materials.

How do I know if a 500ml plastic bottle mould is compatible with my machine?
Compare mold dimensions (height, width), required clamping force, nozzle interface, and ejector pin layout with your machine’s specifications.

Are custom-shaped 500ml bottle moulds worth the extra cost?
Only if branding differentiation drives sales. Otherwise, standard designs offer better ROI and easier replacement.

What should I inspect when receiving a new 500ml plastic bottle mould?
Check for surface finish quality, alignment of cavities and cores, presence of cooling channels, and completeness of documentation and spare parts.
