How to Choose the Best 3kw Spindle for CNC Machines

When selecting a 3kw spindle for your CNC router or milling machine, prioritize compatibility with your control system (e.g., ER20 vs. ISO30 taper), cooling method (air-cooled vs. water-cooled), and RPM range (typically 6,000–24,000 RPM). For most hobbyists and small workshops, a water-cooled 3kw spindle offers quieter operation and better heat dissipation than air-cooled models 1. If you're working with hardwoods, aluminum, or composites, ensure the spindle supports variable frequency drive (VFD) control for precise speed adjustment—a critical factor in avoiding material burn or tool wear. A high-quality 3kw spindle should also feature sealed bearings and low runout (<0.01mm) to maintain cutting accuracy over time.

About 3kw Spindle

A 3kw spindle is an electric motor designed specifically for CNC (Computer Numerical Control) machining applications, delivering 3 kilowatts (approximately 4 horsepower) of power to rotate cutting tools at high speeds. These spindles are commonly used in woodworking, metal engraving, aluminum trimming, and PCB milling. Unlike standard drill motors, 3kw spindles are engineered for continuous duty, precision, and integration with CNC controllers via VFDs (Variable Frequency Drives).

Typically mounted on gantry-style routers or benchtop mills, a 3kw spindle provides enough torque and speed flexibility to handle both soft materials like MDF and harder ones such as plastics and non-ferrous metals. They come in two primary configurations: air-cooled and water-cooled. The choice between them affects noise levels, thermal management, and longevity. Mounting options include flange mounts, collar clamps, or ISO tapers depending on the machine frame and user requirements.

Why 3kw Spindle Is Gaining Popularity

The growing adoption of 3kw spindles stems from their balance of power, affordability, and accessibility for small-scale manufacturers, makers, and educational institutions. As desktop and mid-size CNC machines become more widespread, users seek reliable upgrades from lower-powered router bits to industrial-grade spindles that deliver consistent performance.

One major driver is the demand for higher precision in prototyping and custom fabrication. With tighter tolerances required in signage, cabinetry, and aerospace components, a stable 3kw spindle reduces vibration and improves surface finish. Additionally, open-source CNC communities have made installation guides and tuning parameters widely available, lowering the technical barrier to entry 2.

Another reason is cost-effectiveness. Compared to 5kw or 7.5kw spindles, 3kw units require less robust electrical systems, smaller VFDs, and lighter machine frames—making them ideal for retrofitting existing DIY CNC setups without extensive modifications.

Types and Variants

Understanding the different types of 3kw spindles helps match the right model to your application.

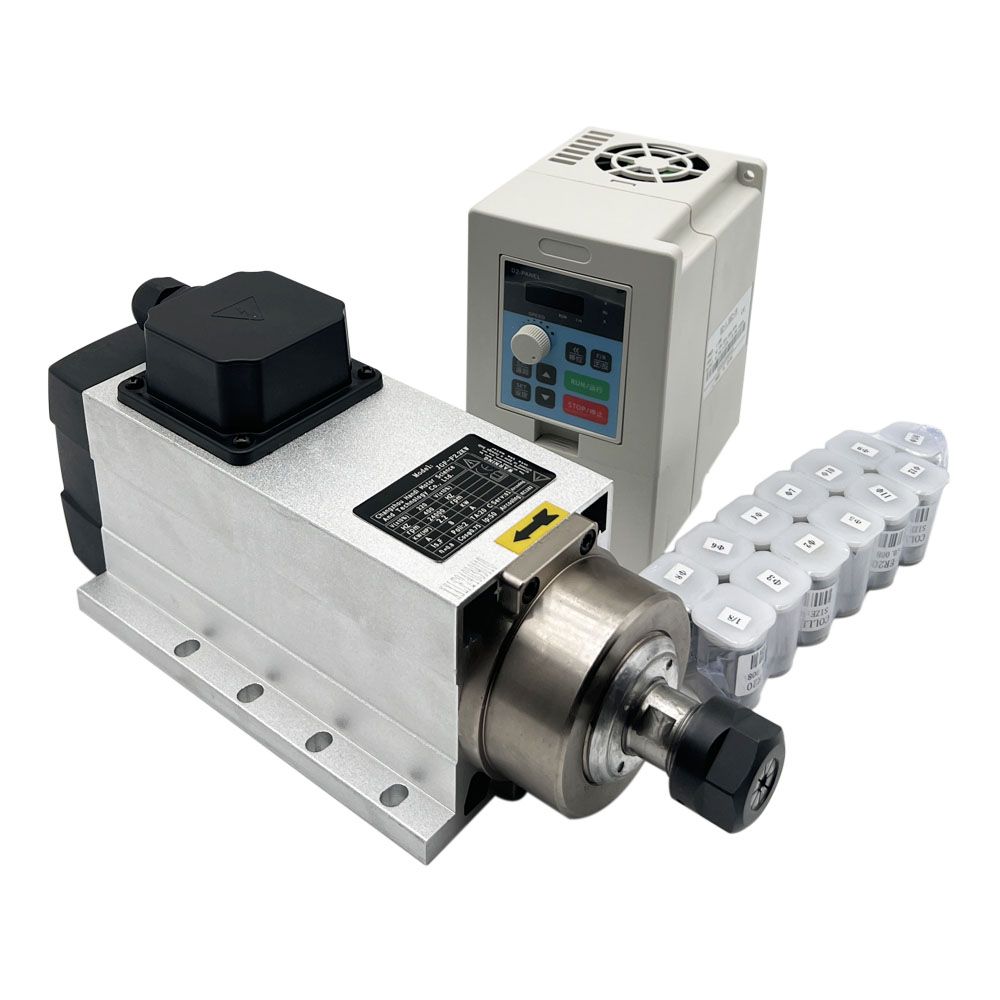

1. Air-Cooled 3kw Spindle

Pros: Simpler setup, no need for external water pump or tubing; suitable for intermittent use.
Cons: Noisier operation (~70–80 dB); limited heat dissipation leads to shorter lifespan under heavy loads.
Best for: Light-duty tasks like engraving, foam cutting, or occasional wood routing.

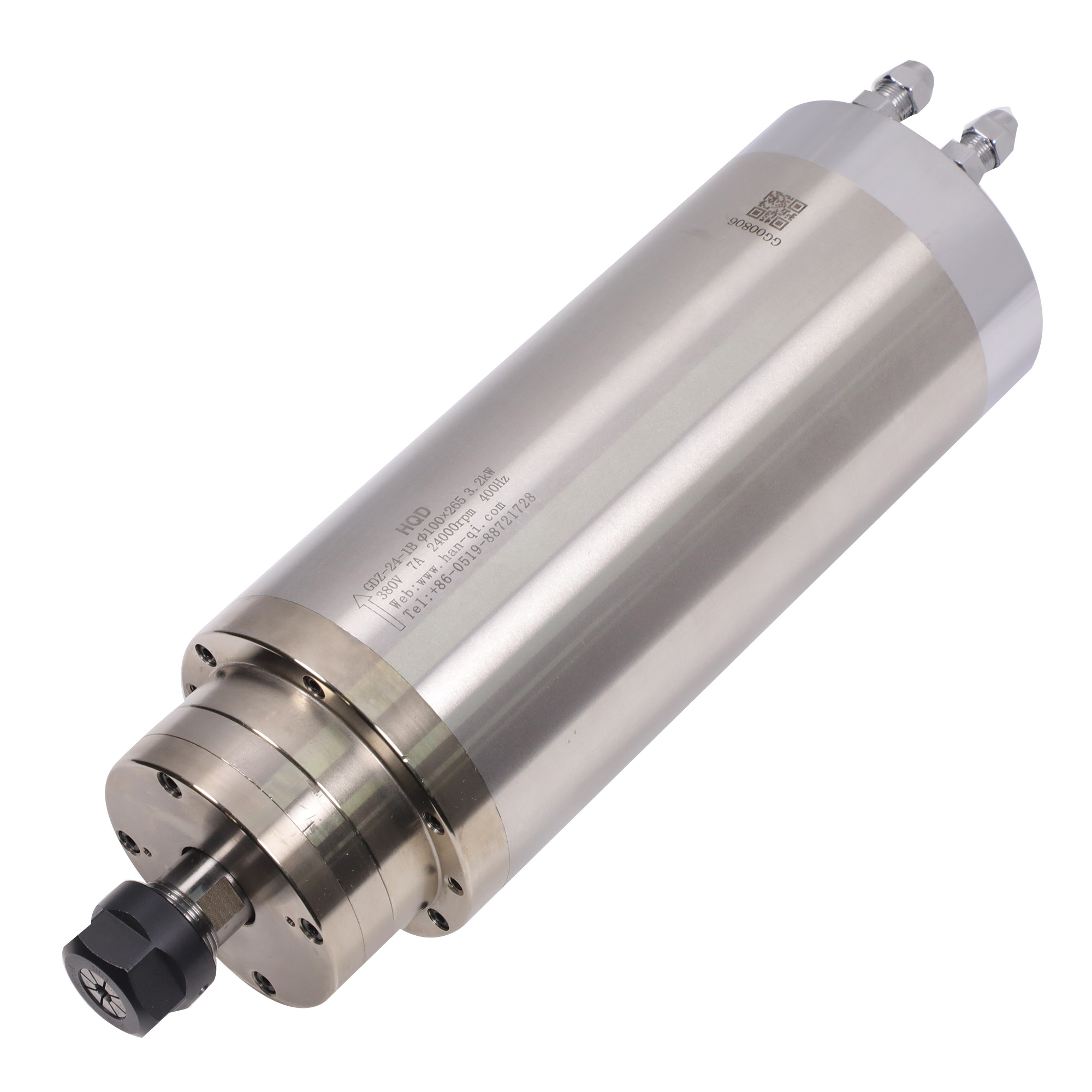

2. Water-Cooled 3kw Spindle

Pros: Superior thermal management allows extended runtime; operates more quietly (~55–65 dB).
Cons: Requires additional plumbing, water tank, and pump; risk of leaks if not maintained.
Best for: High-production environments or dense materials like hardwoods and aluminum.

3. High-Frequency vs. Standard Frequency Models

Standard (300Hz): Max ~18,000 RPM; adequate for general milling.
High-Frequency (400Hz+): Can reach up to 24,000 RPM; better for fine detailing and hard materials.

4. Taper Types & Tool Holding Systems

ER20 Collet: Most common; accepts tools from 3–12mm; good grip but requires collet changes.

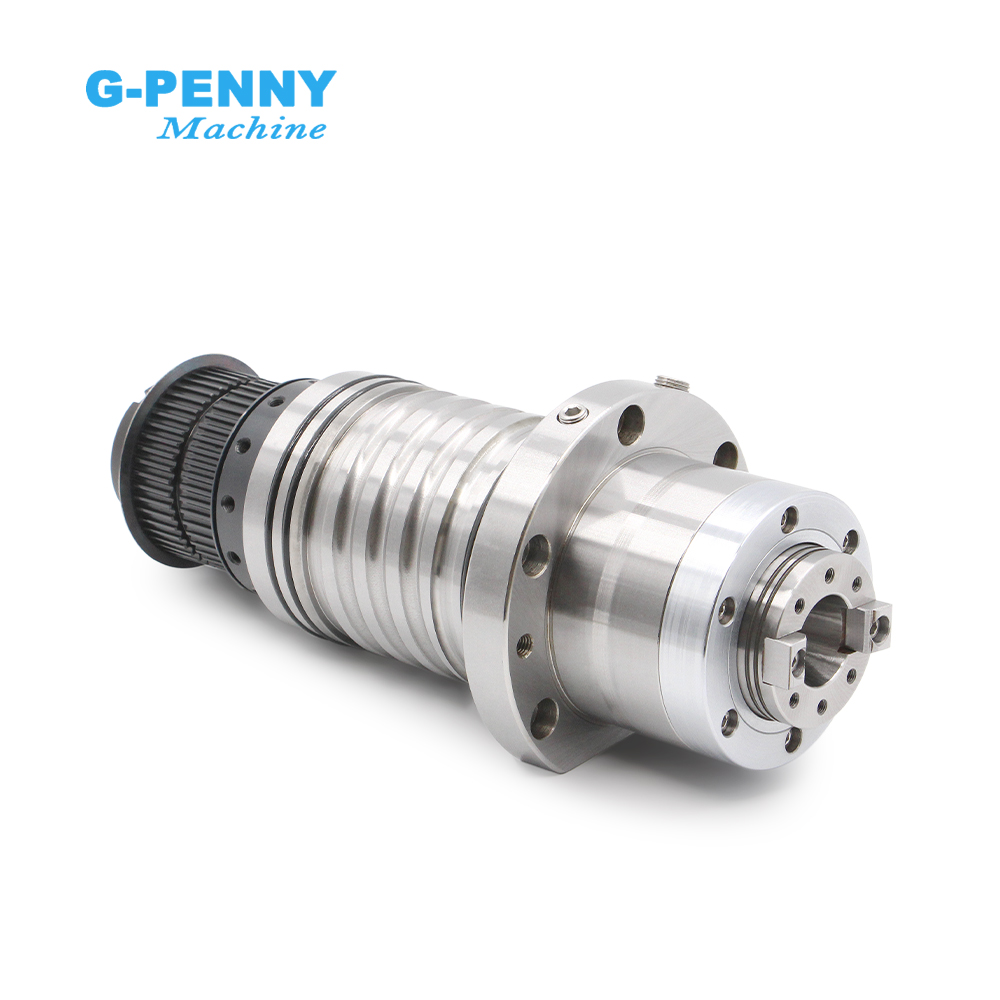

ISO30 / BT30: Industrial standard; allows quick tool changes using drawbars; found on heavier-duty machines.

Key Features and Specifications to Evaluate

To make an informed decision when choosing a 3kw spindle, consider these core technical aspects:

RPM Range: Look for adjustable speeds between 6,000 and 24,000 RPM. Higher RPM enables cleaner cuts in brittle materials.
VFD Compatibility: Ensure the spindle works with a compatible VFD (usually 220V single-phase or three-phase input). Check modulation type (e.g., V/F or sensorless vector control).
Bearing Quality: NSK or SKF bearings offer longer service life. Sealed bearings prevent dust ingress in workshop environments.
Runout: Acceptable runout should be below 0.01mm. Excessive runout causes poor finish and premature tool breakage.
Cooling Requirements: Confirm whether ambient airflow suffices (air-cooled) or if a recirculating chiller is needed (water-cooled).
Noise Level: Measured in dBA; water-cooled models typically operate 10–15 dB quieter.
Mechanical Interface: Match the mounting style (e.g., diameter, bolt pattern) and tool holder (collet size or taper) to your CNC frame.

Pros and Cons

Advantages of Using a 3kw Spindle

Suitable power level for versatile material processing.
Better rigidity and accuracy compared to handheld routers.
Longer operational life when properly cooled and maintained.
Supports automated tool path execution with consistent feed rates.

Limitations and When to Avoid

Not ideal for deep steel cutting or aggressive hogging operations—consider 5kw+ for those.
Air-cooled versions may overheat during prolonged use (>30 mins continuous).
Potential resonance issues if not correctly isolated from the machine structure.
Requires proper grounding and EMI shielding to avoid interference with control electronics.

How to Choose a 3kw Spindle

Follow this step-by-step guide to select the right 3kw spindle based on your needs:

Determine Your Material Type: Softwoods and plastics? An air-cooled model may suffice. Aluminum or hardwoods? Opt for water-cooled with high-frequency capability.
Verify Voltage and Phase Supply: Most 3kw spindles require 220V AC. Confirm whether your shop has access to single-phase or three-phase power. Some models work on single-phase with a phase converter.
Check Spindle Mount Dimensions: Measure your CNC Z-axis carriage to ensure the spindle body fits. Common diameters are 70mm or 80mm.
Select Tool Holding System: ER20 is standard and affordable. ISO30 offers faster tool changes but increases overall system cost.
Evaluate Cooling Setup: If opting for water-cooling, budget for a pump, reservoir, and tubing. Consider placing the tank above the spindle to prevent airlocks.
Inspect Warranty and Support: Reputable brands offer 1-year warranties and responsive technical support. Avoid no-name suppliers lacking documentation.
Watch for Red Flags: Extremely low prices (<$300), missing datasheets, vague RPM claims (“up to 24k” without load testing), or lack of bearing specifications suggest subpar quality.

Price & Market Insights

As of 2024, the average price range for a new 3kw spindle is $350–$700 USD. Prices vary significantly based on build quality, brand reputation, and included accessories (e.g., VFD, tools, coolant kit).

Budget Tier ($300–$400): Often unbranded Chinese manufacturers; basic ER20 air-cooled models. Suitable for light hobby use but expect shorter lifespan.
Mid-Range ($400–$550): Includes well-known OEMs like Huanyang, FYSETC, or Longsheng. Usually water-cooled with NSK bearings and tested runout values.
Premium ($550+): Brands like Stepcraft, Kress, or Precisebits offer enhanced precision, better seals, and full technical documentation. Ideal for commercial shops.

Value isn't just about upfront cost. Factor in expected downtime, replacement frequency, and impact on finished product quality. A slightly more expensive spindle with proven durability often delivers better long-term ROI.

Model	Type	RPM	Cooling	Collet	Approx. Price
Huanyang HSD 3kw	Water-cooled	24,000	Water	ER20	$480
FYSETC S3	Water-cooled	24,000	Water	ER20	$420
Longsheng LS-3000W	Water-cooled	24,000	Water	ER20	$450
Bosch GMF 3000	Air-cooled	18,000	Air	ISO30	$620

Customer Feedback Synthesis

Based on aggregated reviews from forums, e-commerce platforms, and user groups, here’s a summary of real-world experiences:

Common Praises:
Users frequently commend water-cooled 3kw spindles for their smooth operation and ability to maintain cool temperatures during multi-hour jobs. Many highlight improved cut quality after upgrading from Dewalt or Makita routers. The ER20 collet system receives positive feedback for its secure grip and wide tool compatibility.

Recurring Complaints:
Air-cooled models are often criticized for loud whining noises and overheating after 20–30 minutes of continuous use. Some buyers report receiving units with runout exceeding 0.02mm, leading to chipped bits and uneven surfaces. Others mention poor cable insulation or weak VFDs included in budget kits, requiring immediate upgrades.

Shipping delays and inconsistent customer service from overseas sellers remain a concern, especially when warranty claims arise. Buyers recommend purchasing from vendors with local support or clear return policies.

Sourcing & Supplier Tips

Where you buy your 3kw spindle matters as much as the specs. Here are practical sourcing guidelines:

Online Marketplaces: Alibaba and AliExpress offer competitive pricing but vary in reliability. Filter for suppliers with ≥95% positive feedback, trade assurance, and detailed product videos.
Specialty CNC Retailers: Stores like CNC Masters, AccuRapid, or Carbide 3D provide tested configurations, technical support, and easier returns.
For Bulk Orders: Negotiate MOQs (Minimum Order Quantities) and request sample units before committing. Ask for certification documents (CE, RoHS) if importing.
Dropshipping/Reselling: Partner with distributors offering white-label packaging and reseller warranties.
Inspection Upon Delivery: Test rotation manually, check for axial play, inspect cables for damage, and verify all included hardware matches the order list.

Maintenance, Safety & Legal Considerations

Proper care extends spindle life and ensures safe operation.

Maintenance: Clean exterior regularly; inspect bearings every 500 hours; replace coolant every 3–6 months to prevent algae buildup.
Safety: Always disconnect power before maintenance. Use protective eyewear and hearing protection during operation. Secure loose clothing and hair near rotating parts.
Vibration Monitoring: Unusual noise or wobbling indicates misalignment or bearing failure—shut down immediately.
Electrical Compliance: In the U.S., ensure the spindle/VFD combo meets NEC Article 430 standards. In EU regions, CE marking is mandatory for commercial installations.
EMI Shielding: Route motor cables away from signal wires to prevent interference with limit switches or encoders.

Conclusion

Choosing the best 3kw spindle involves balancing power, cooling type, precision, and compatibility with your CNC system. For most users engaged in wood, plastic, or light metalwork, a water-cooled 3kw spindle with ER20 collet and 24,000 RPM capability offers the best blend of performance and longevity. Prioritize models with documented runout, quality bearings, and proper VFD integration. While budget options exist, investing in a reputable brand reduces long-term costs from failures and rework. Always verify mechanical fit and electrical requirements before purchase, and source from suppliers offering transparent specifications and post-sale support.

FAQs

What is the lifespan of a typical 3kw spindle?
With proper cooling and maintenance, a quality 3kw spindle can last 3,000–5,000 operating hours. Bearings are usually the first component to wear out.

Can I run a 3kw spindle continuously?
Yes, especially water-cooled models. However, allow cooldown periods every 1–2 hours during heavy-duty tasks to prevent thermal stress.

Do I need a separate VFD for a 3kw spindle?
Yes, nearly all 3kw spindles require an external VFD to control speed and protect against overload. Match the VFD’s kW rating to the spindle.

Are air-cooled spindles obsolete?
No, they remain viable for light, intermittent work where plumbing complexity isn’t justified. But for sustained production, water-cooled is preferred.

How do I measure spindle runout?
Use a dial indicator mounted securely to the machine bed. Rotate the spindle slowly by hand and observe maximum deviation at the tool tip. Should be ≤0.01mm.
